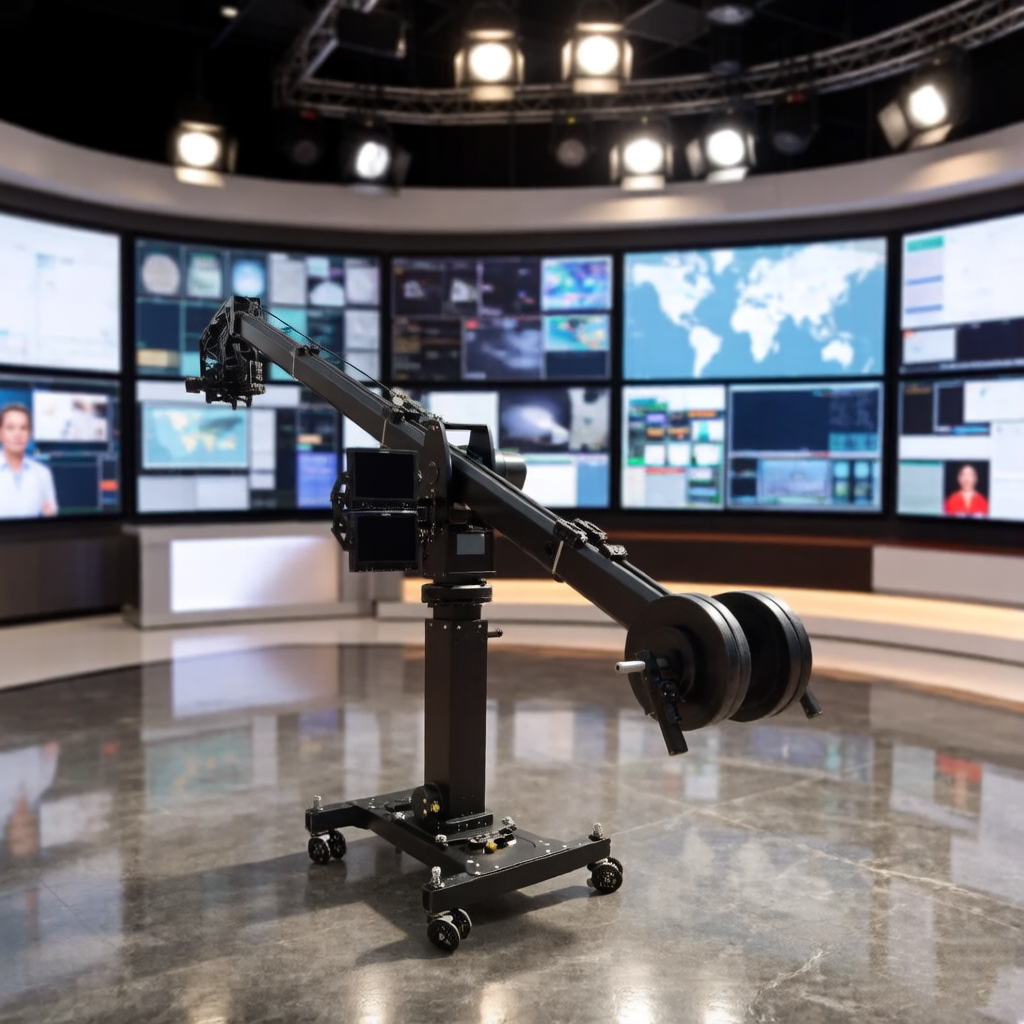

GAZELLE Auto & Manual Crane Robot (max 6m)

Manual & Automatic, switch in seconds



It can shoot automatically or be controlled manually by a camera operator. You can switch between the two modes in just a few seconds without stopping the shot.

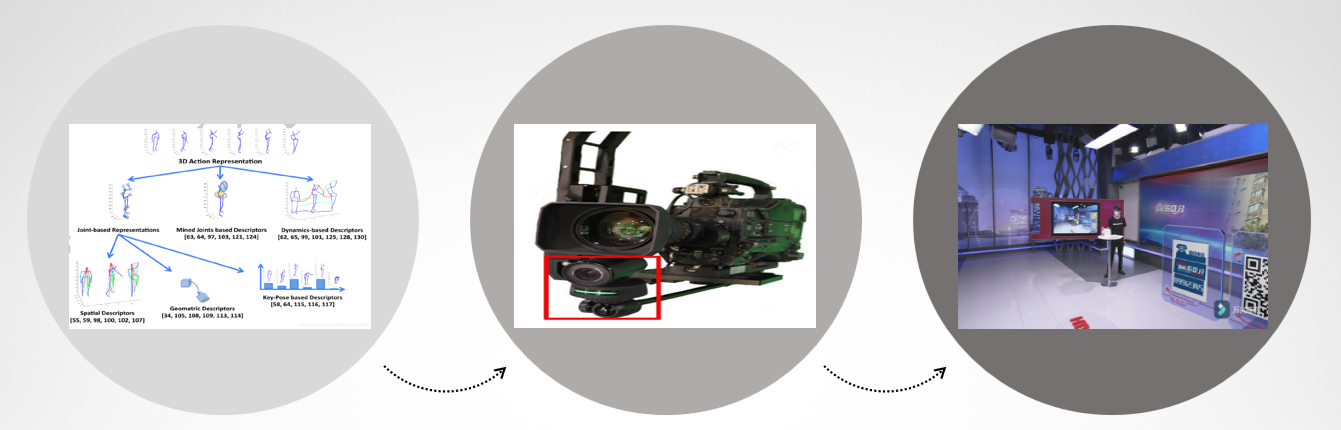

AI auto-tracking



It uses AI to track people or objects automatically, and stays accurate even when there are multiple targets.









Safe operation with radar protection



With multi-directional radar, it monitors lights, walls and people in real time. It protects people and equipment before any accident happens.

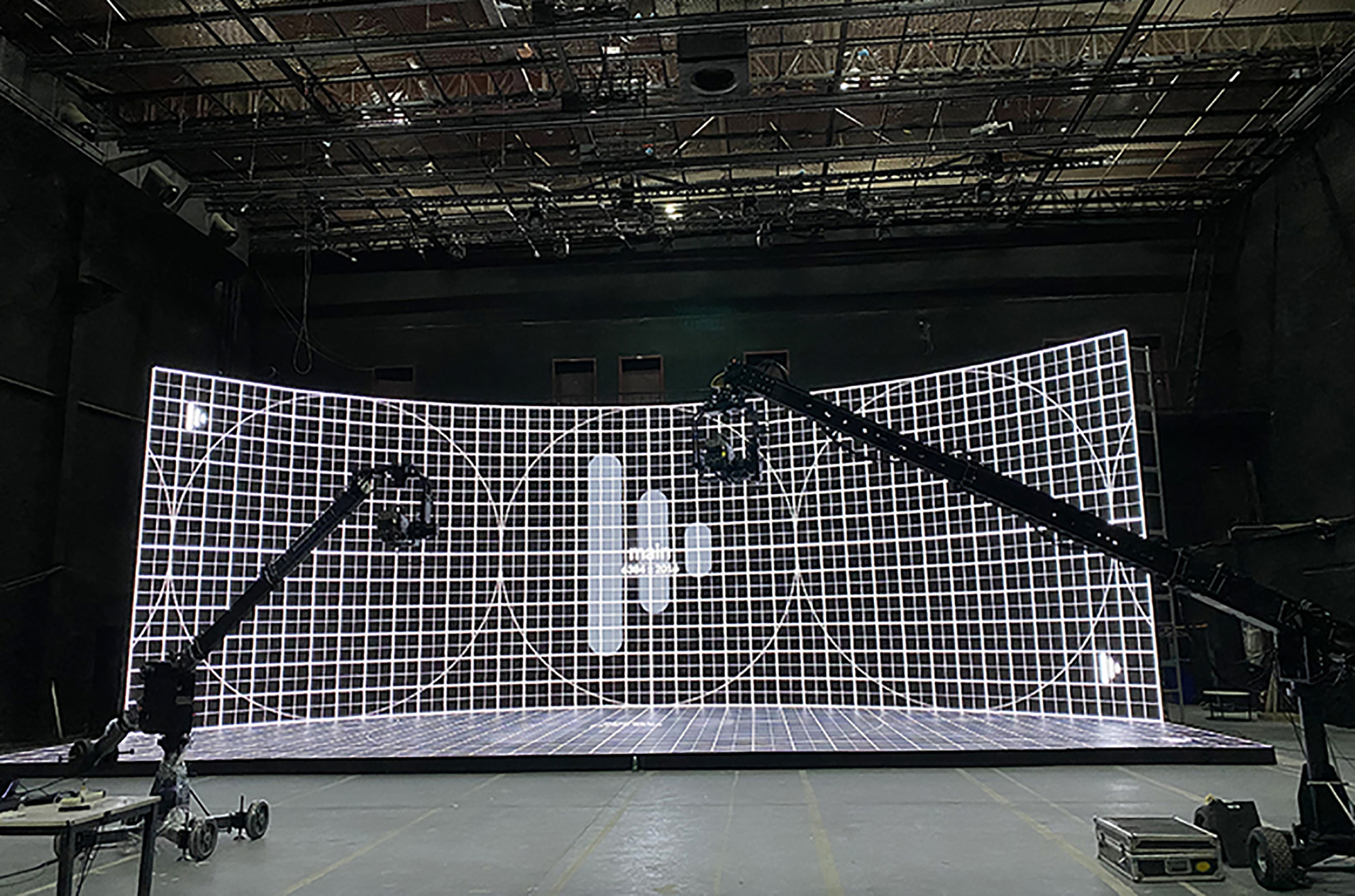

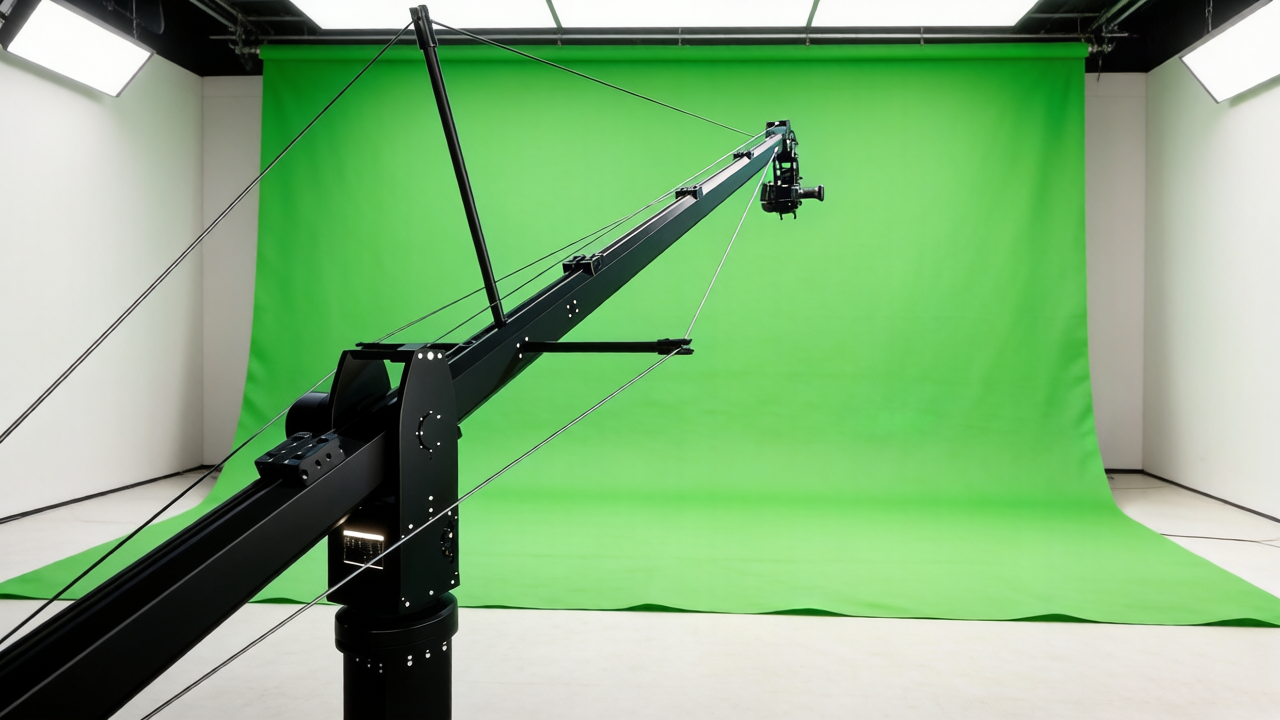

Virtual production tracking



It outputs stable, precise tracking data using the Free-D protocol, compatible with most major rendering engines worldwide. Perfect for VR and XR virtual sets.

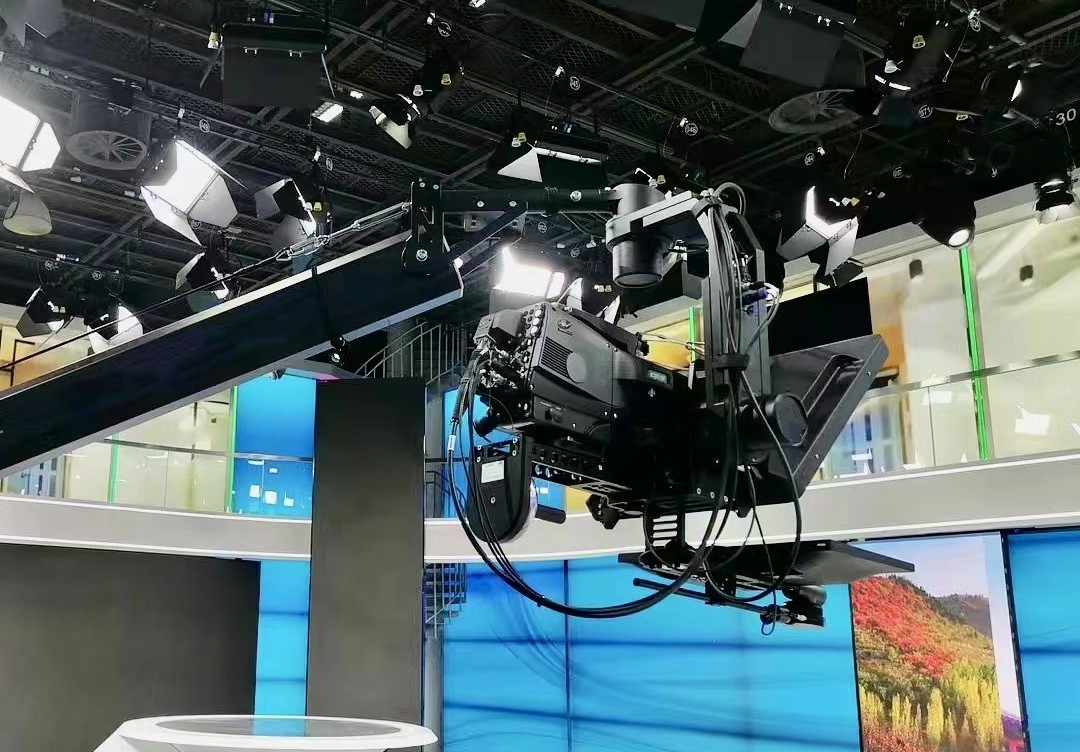

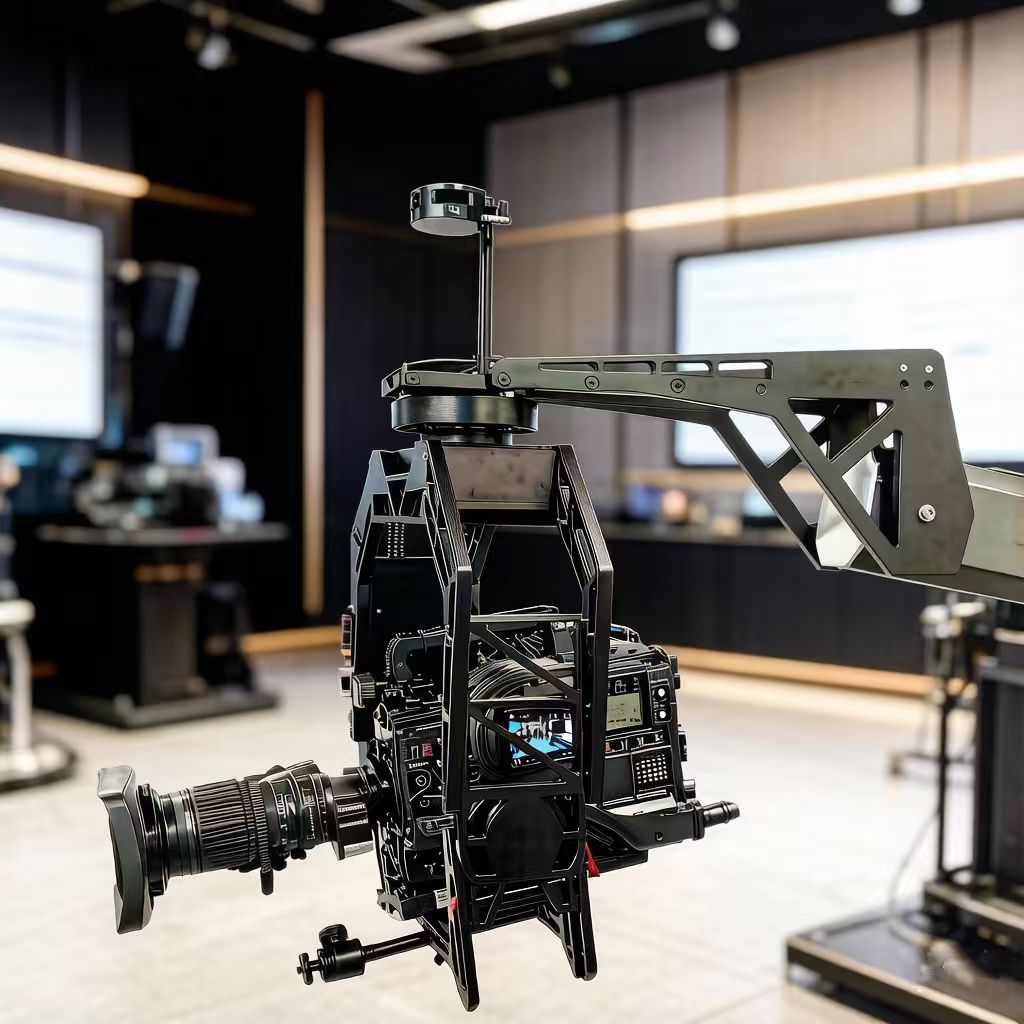

Strong, heavy-duty remote head

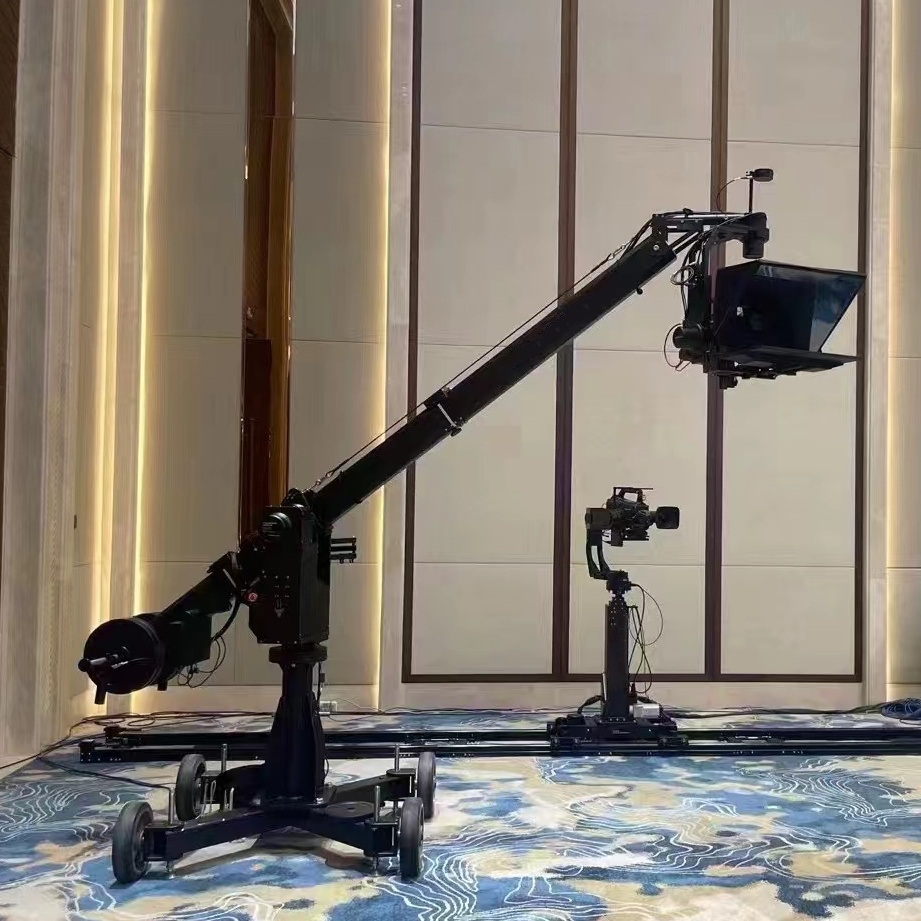

The U-shaped head is stable and can hold over 30kg, including large professional teleprompters. It works Canon and Fujinon lenses with one cable, also drive cinema lenses with external motors.

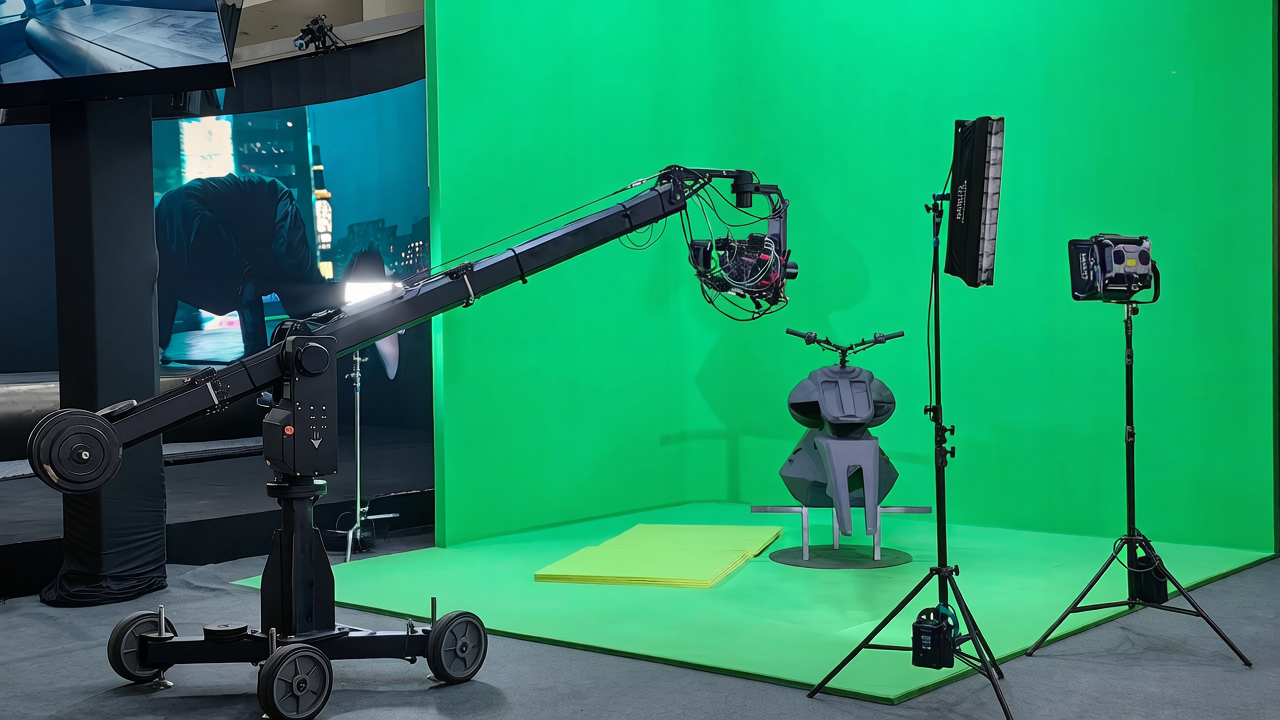

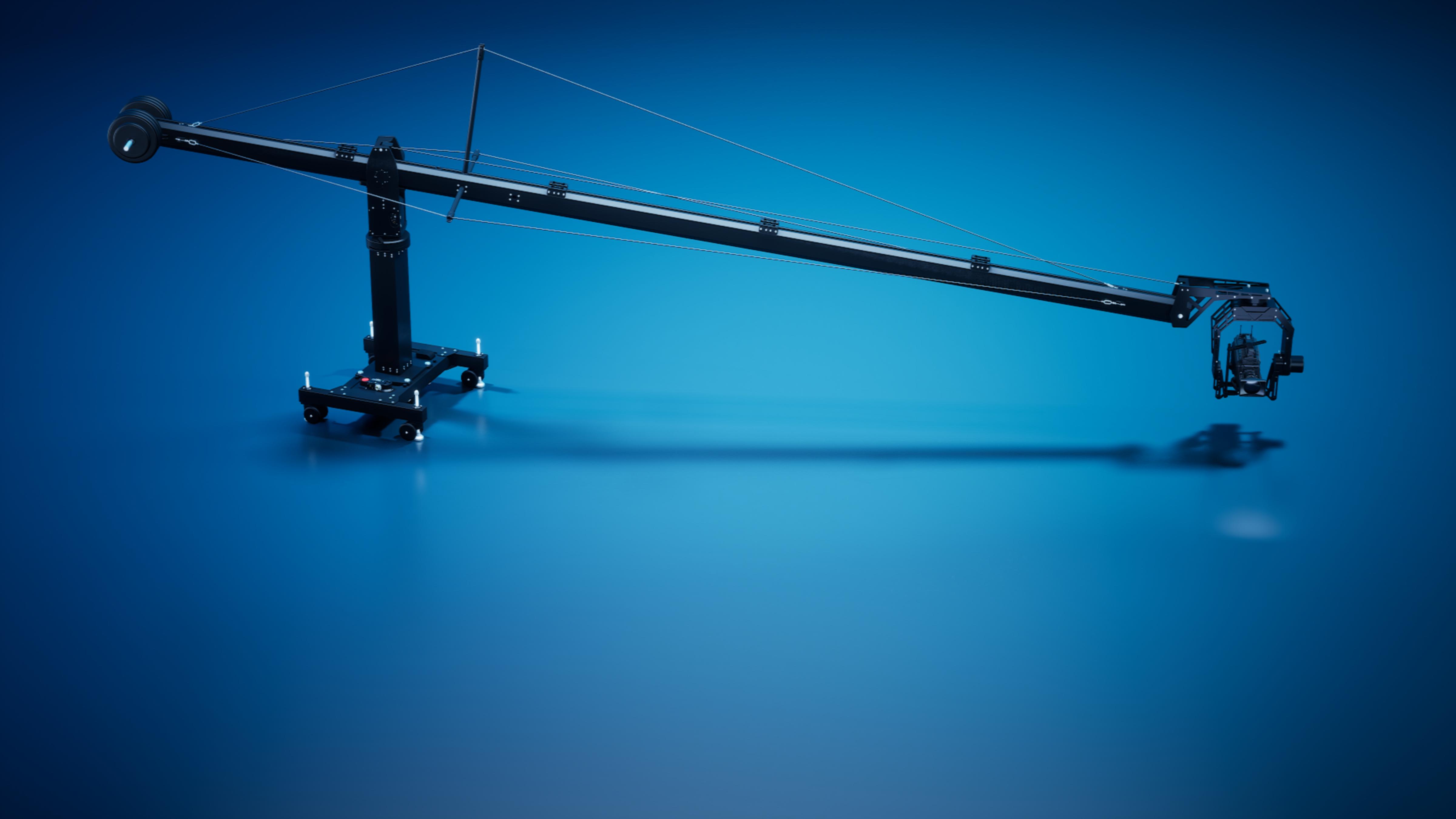

Flexible arm lengths

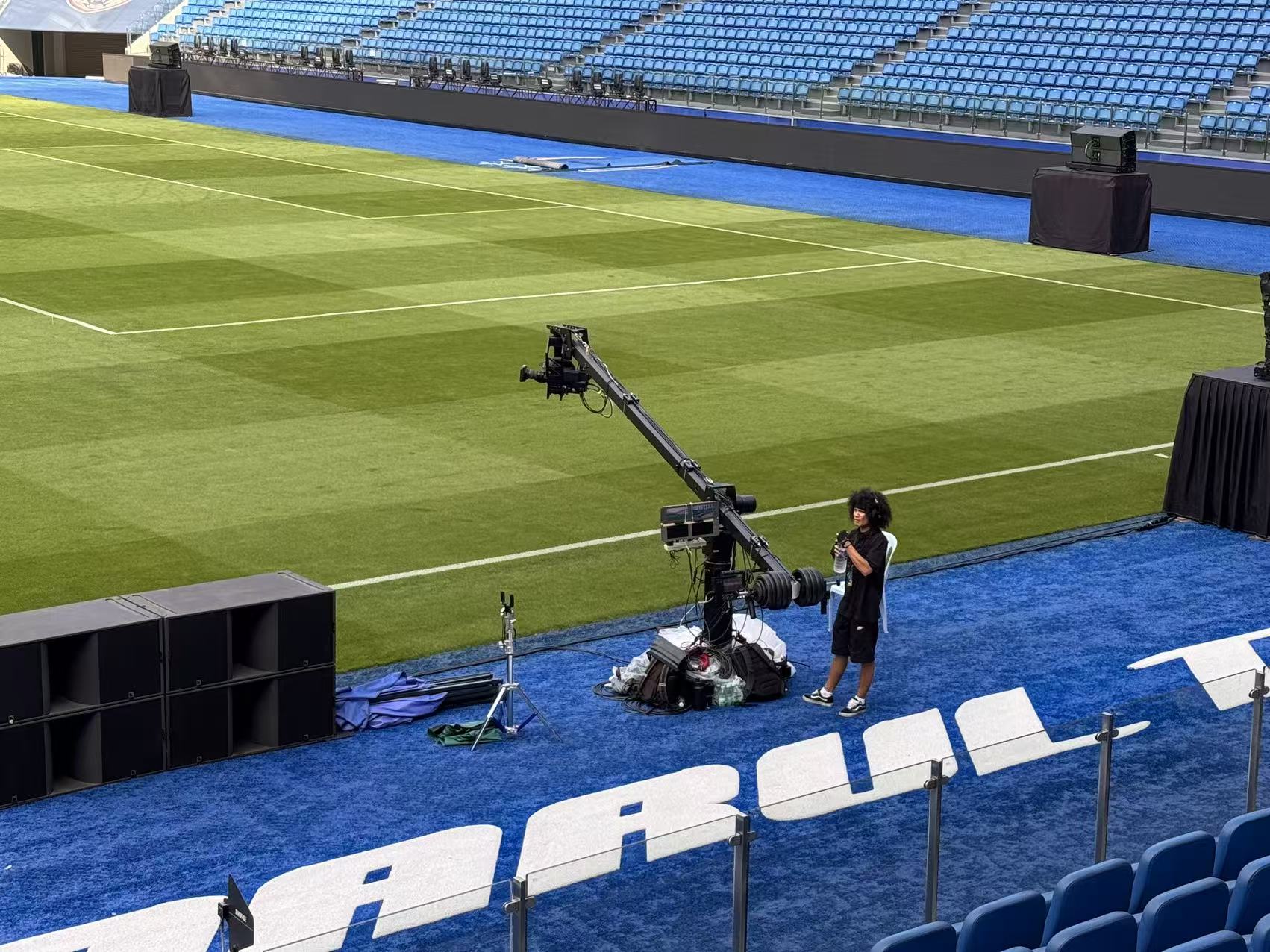

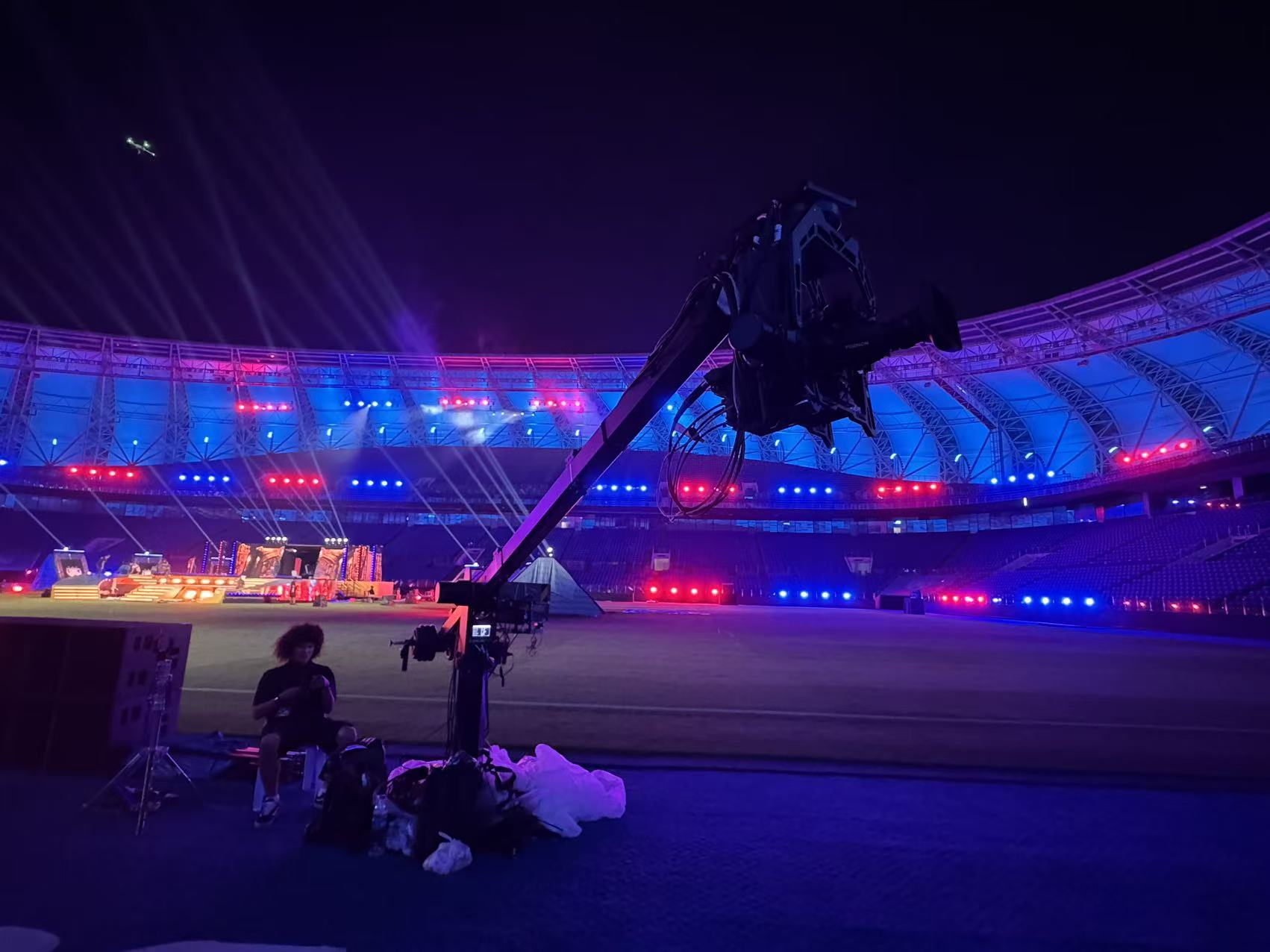

The arm length can be customized from 3m to 6m. It works well in small studios, large studios, and on stage.

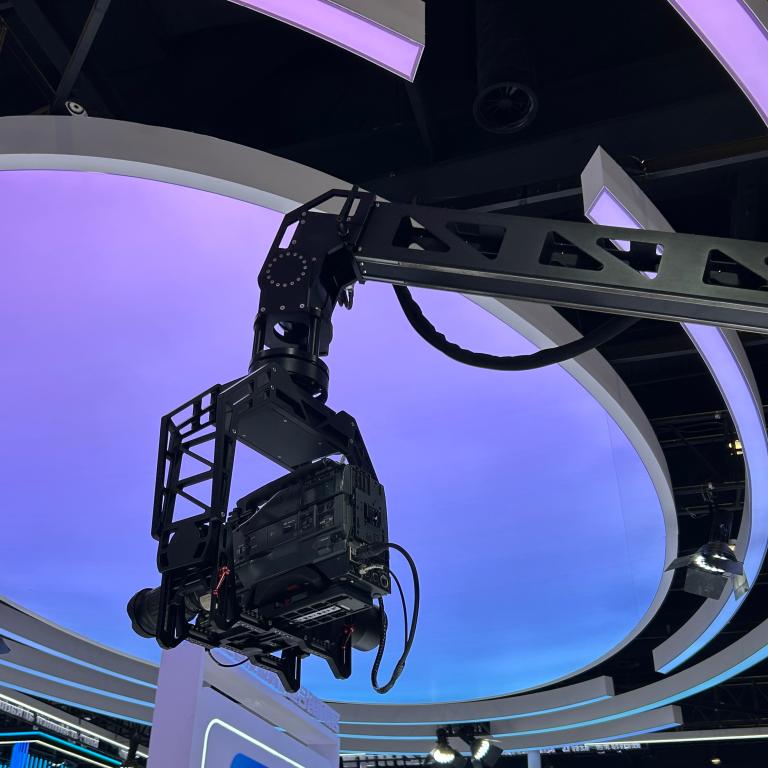

Upright or underslung head mounting



You can mount it regular way or upside down for low-angle shots. It gives you total freedom for different ceiling heights and creative framing.









Multi-camera control



You can control multiple cameras from one remote panel. One operator can manage all studio cameras and keep a consistent visual style.







See how it works by Automated Production







Tech Specs



Model    Gazelle-3M Gazelle-4M Gazelle-5M Gazelle-6M
Remote Head Type U-type 2-axis heavy-duty remote head;
U-type 2-axis wide-frame teleprompter remote head;
Remote Head Speed Pan, Tilt: 0.01~60°/s
Remote Head Payload U-type 2-axis heavy-duty remote head: 30 kg
U-type 2-axis wide-frame teleprompter remote head: 40 kg
Total Arm Length    2.90m 3.50m 4.70m 5.90m
Remote Head Reach    2.20m 2.50m 3.35m 4.40m
Operator End Reach    0.70m 1.00m 1.30m 1.50m
Arm Height at Horizontal Position Standard column height: 1.40 m
Lift column height: 1.40~1.80 m
Lens Height at Horizontal Arm Position Underslung remote head: 1.10 m
Top-mounted remote head: 1.95 m
Max Lens Height(Standard column) Top-mounted remote head: 3.35 m
Underslung remote head: 2.50 m
Top-mounted remote head: 3.55 m
Underslung remote head: 2.70 m
Top-mounted remote head: 4.25 m
Underslung remote head: 3.40 m
Top-mounted remote head: 5.05 m
Underslung remote head: 4.20 m
Arm Tilt Range +50° ~ -50°
Support Base Type Aluminum square dolly (incl. electronic control system), steerable four wheels, steel screw jacks
Support Base Dimensions Length:0.90m;Width:0.80m
Net Weight (excl. Counterweight)

165Kg 175Kg 185Kg 200Kg
Recommended Counterweight (approx.)   50Kg 60Kg 70Kg 90Kg
Operation Mode Panel remote control & programmable automatic control;
Optional: single-operator dual joystick, touch panel control
Power Input AC 220V/10A, 50/60 Hz
Power Out DC 15V/10A
Operating Power 1.55 KW
Arm Sensor Resolution (VR version)    2,700,000 c/r
Remote Head Sensor Resolution (VR version)    2,700,000 c/r
Lens Sensor Resolution (VR version) Lens Controllers:32,768 c/r
Compatible Cameras Studio full/semi-servo Canon, Fujinon lenses;
with optional lens motor controls cinema-grade cameras
