TIGO Telescopic Crane Robot (6m)
If your studio needs a telescopic crane robot operated manually or shoot automatically, Tigo might be the best choice.

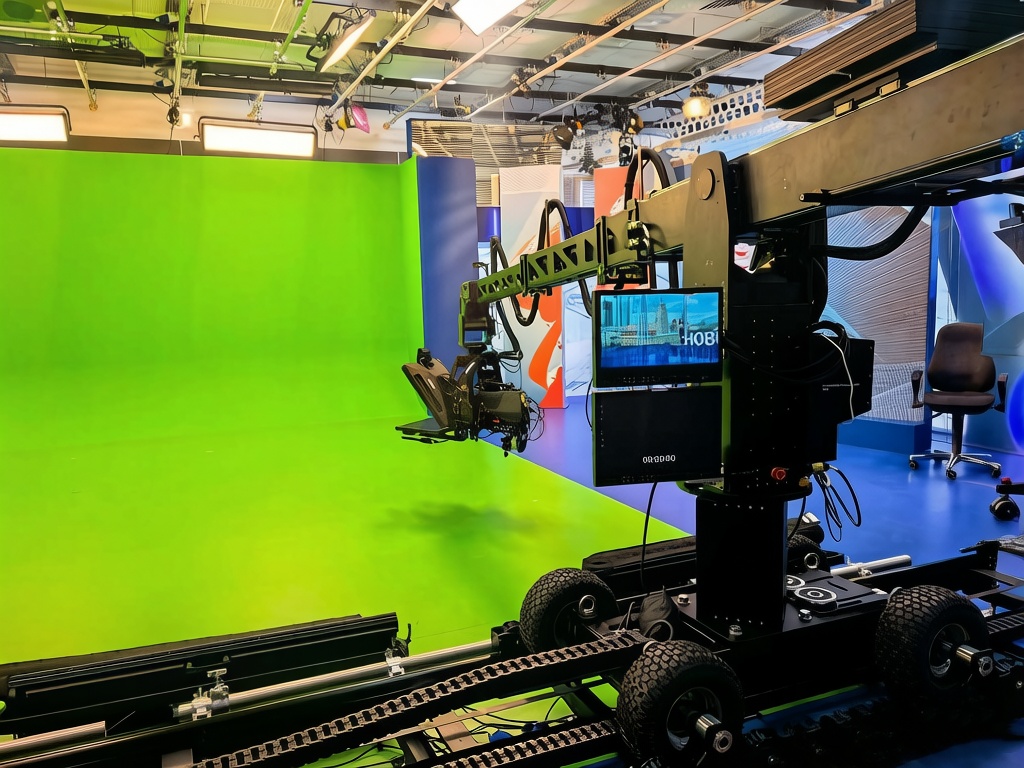

Perfect for Studio Environment
6m long boom, quiet operation, lightweight and easy to move. Perfect for medium-sized indoor studios, it delivers smooth and excellent camera movement shots.

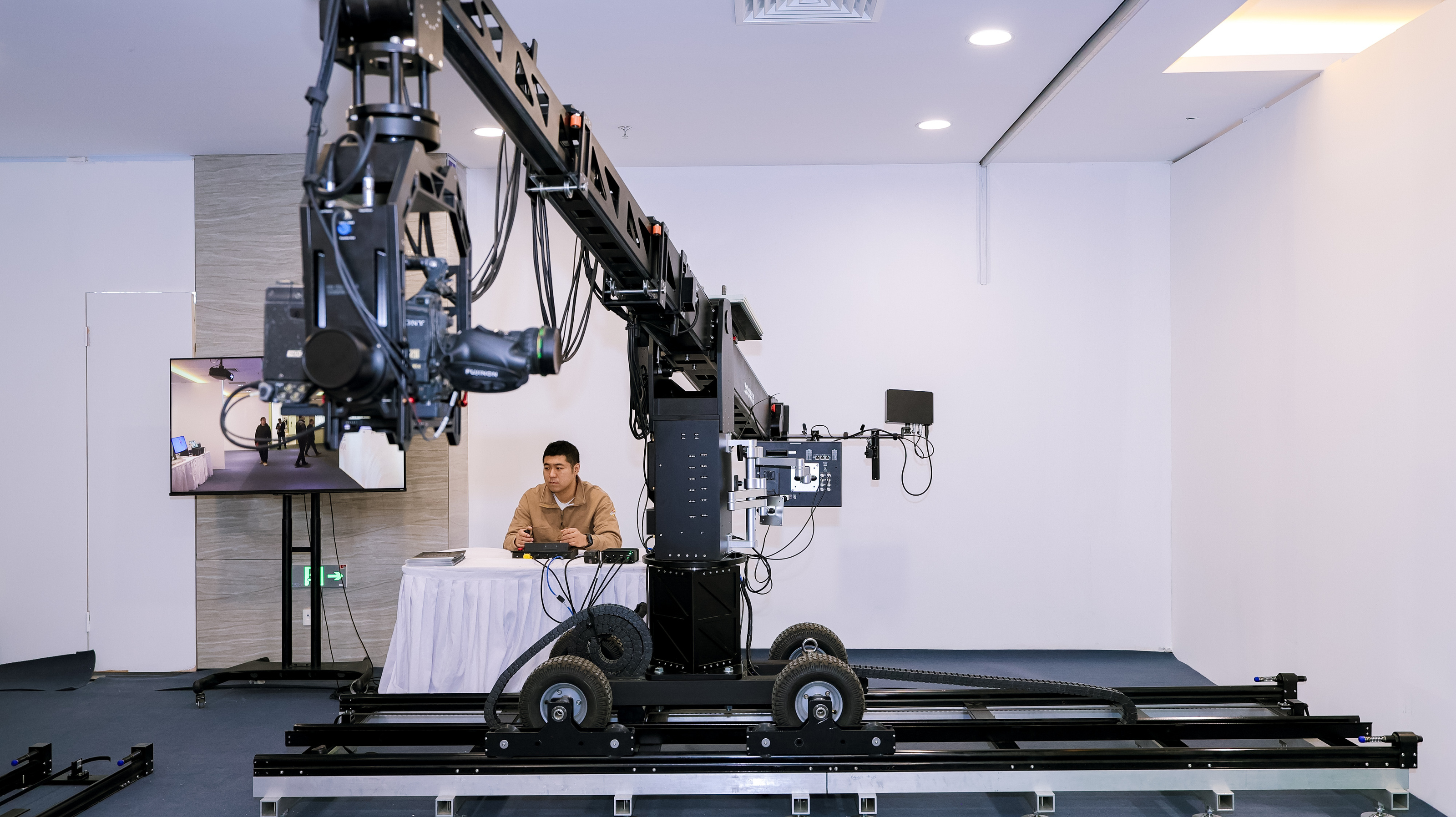

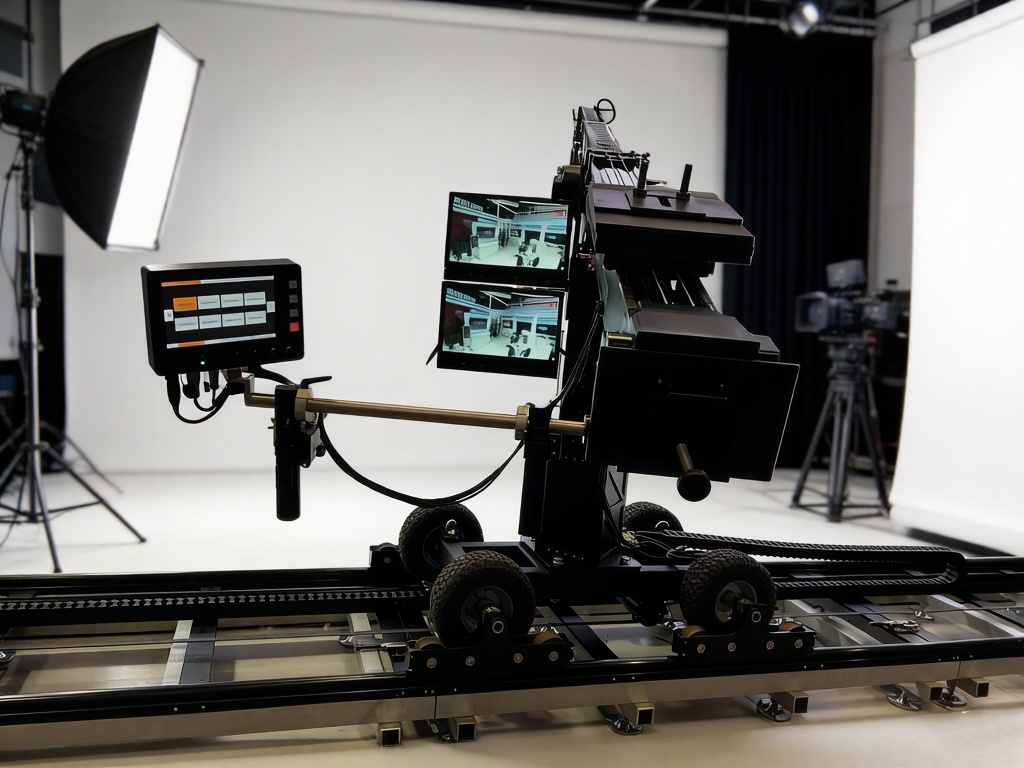

Track Movement
Can be installed on rails for shooting. Powerful motor system allows crane to move greatly in studio. It’s safe and stable during movement, better to shoot a larger range in studio.
Single-Person Manual Operation
Usually operated by one cameraman with two handles: thumb controls gimbal movements, index or middle finger controls boom extension, thumb of the other hand controls lens zoom, and index finger controls focus—making single-person shooting easy and efficient. Cameraman has LED data display on chest and wide monitoring view, able to observe shooting environment at any time to avoid accidents.

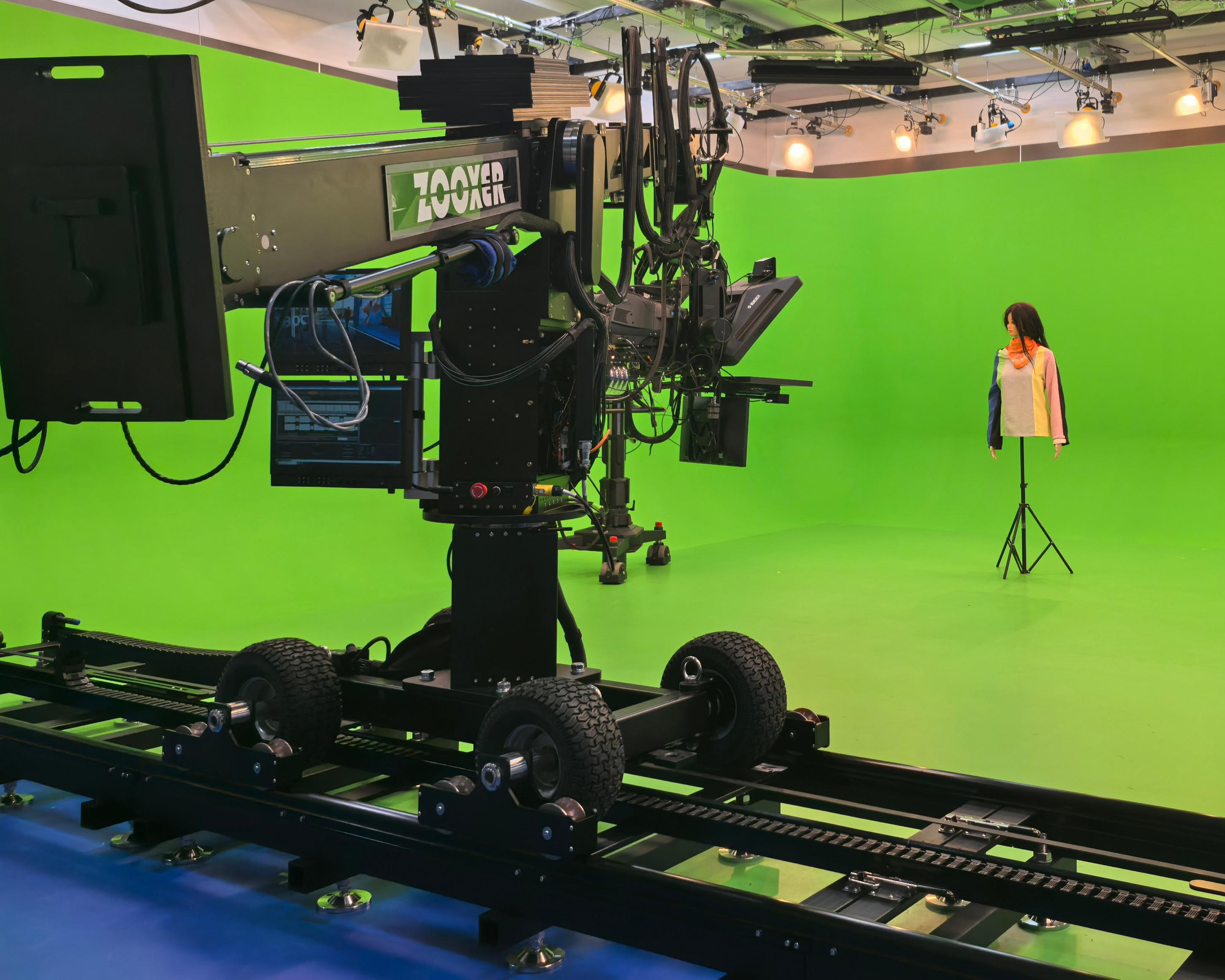

Virtual Tracking
Outputs accurate virtual tracking data, usable for VR or XR production via Free-D protocol. It has all built-in high-precision sensors, with data displayed on LED screen in real time.
Safety Protection
Equipped with perfect safety protection solutions, including four-direction radar detection, software limit for jib extension range, sensor braking at counterweight track ends, physical damping braking, motor torque detection braking, emergency stop button braking, etc., ensuring safety during use.

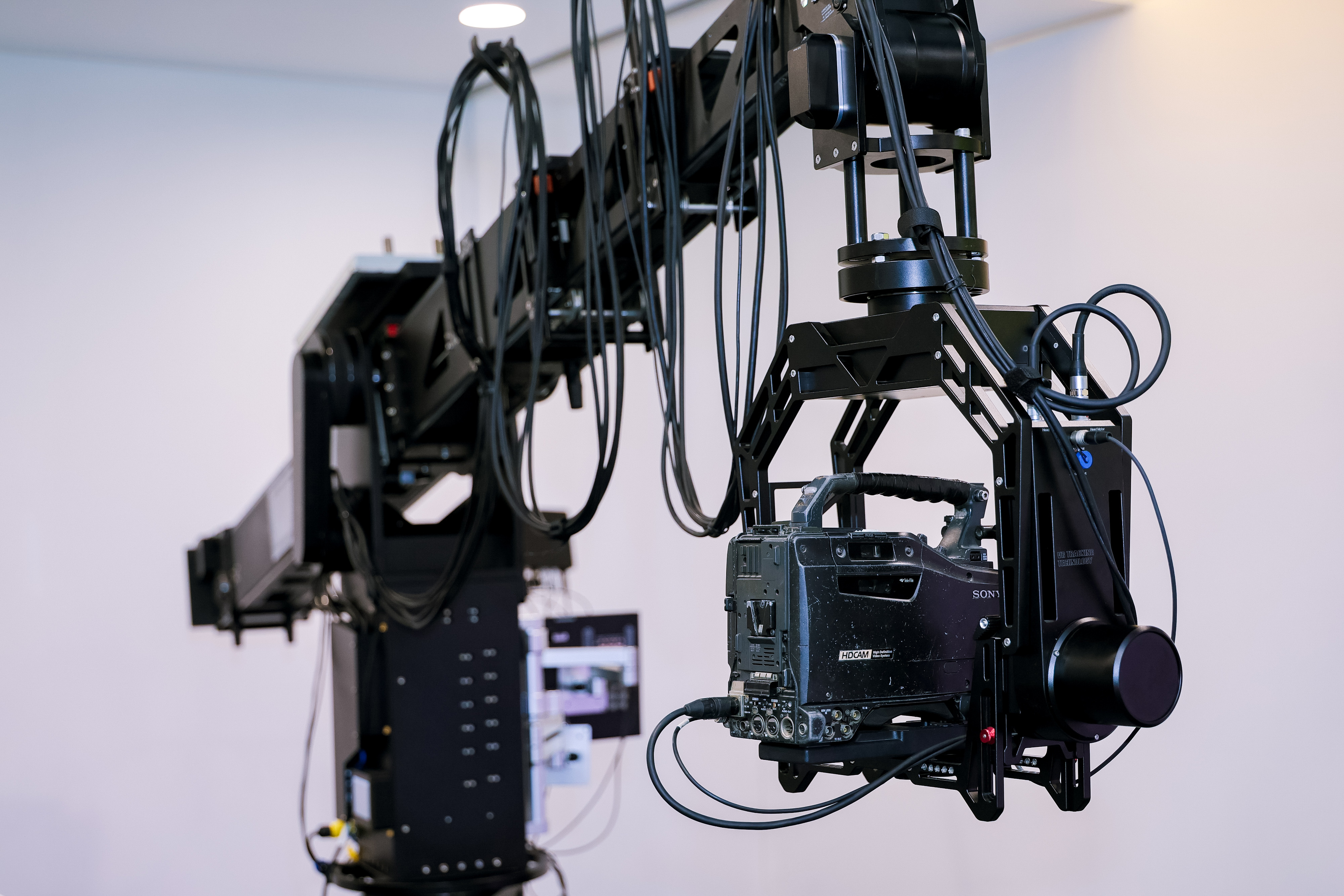

Head with Teleprompter
High-load U-shaped gimbal can mount heavy cameras and professional large-screen teleprompters. Ensures hosts can read and broadcast clearly at 10m distance, bringing great convenience for program recording.
Control Interaction

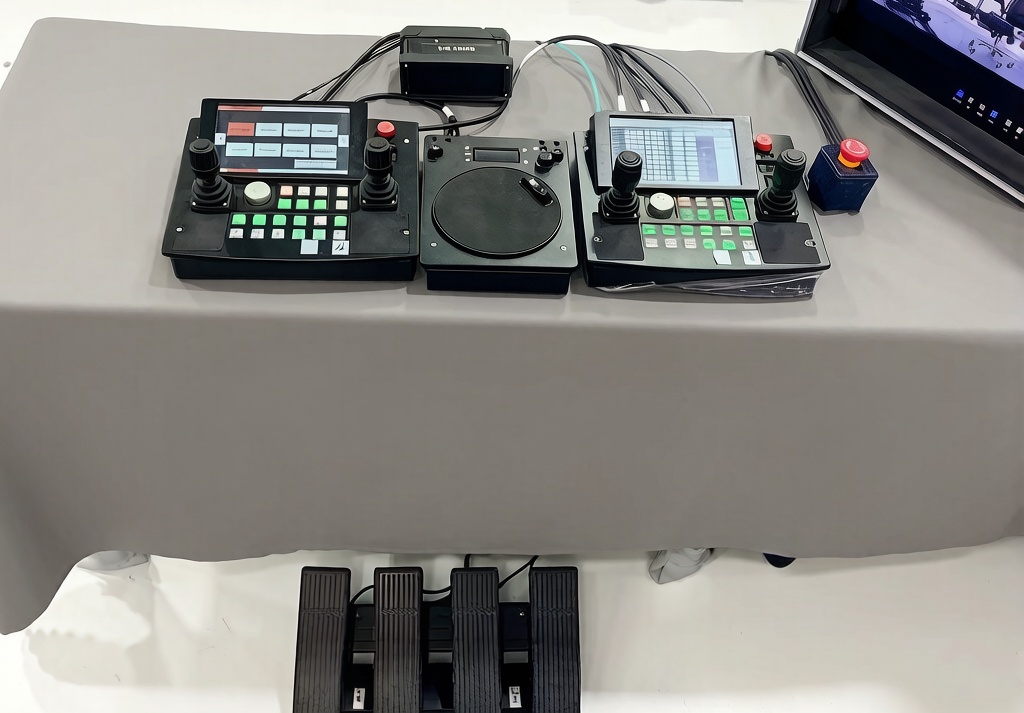

Tigo has diverse control units, such as dual-joystick control panel (with backup function to ensure stable operation), foot pedal control, dual-handle control, and PC remote control interface, which can better program shooting paths.
AI Smart Tracking
Supports AI smart tracking of people or designated objects without losing target. Even if there are multiple targets on site, it can lock and track accurately and continuously.
Tech Specs
| Model | TIGO-6M |
| Remote Head Type | U-type 2-axis heavy-duty remote head; Optional 3-axis gyro-stabilized remote head |
| Remote Head Speed | U-type 2-axis heavy-duty remote head: 0.01–60°/s; 3-axis gyro-stabilized remote head: 0.01–120°/s |
| Remote Head Payload | U-type 2-axis heavy-duty remote head: 30 kg 3-axis gyro-stabilized remote head: 20 kg |
| Total Arm Length | Max. 6.16 m; min. 3.16 m |
| Arm Telescopic Range | 3.00m |
| Arm Extension Speed | 1.4m/s |
| Remote Head Reach | 4.43m(Max) |
| Operator End Reach | 1.73m |
| Arm Height at Horizontal Position | 2.03 m (highest point) |
| Lens Height at Horizontal Arm Position | 1.03m |
| Max Lens Height | ≈4.20m |
| Arm Tilt Range | -45°~+45° |
| Support Base Type | Fixed position: square dolly, steerable four wheels, 4× steel screw jacks; Setup on track: square dolly, steerable four wheels, 4× dual rubber-coated track wheel sets |
| Support Base Dimensions | Incl. track wheel sets: length 1.34 m; width 0.97 m |
| Net Weight (excl. Counterweight) | 300Kg |
| Recommended Counterweight (approx.) | 150Kg |
| Track Specifications (track version) | Track gauge 880 mm; track tube OD 42.2 mm; Straight track: 2.00 m per section Weight per track section ≈ 50 kg |
| Operation Mode | Panel remote control & programmable automatic control; Optional: single-operator dual joystick, touch panel control Optional: dual-operator telescopic joystick + remote head control panel; |
| Power Input | AC 220V/10A, 50/60 Hz |
| Power Out | DC 15V/10A |
| Operating Power | Fixed position: 2.0 KW; Track mount: 2.7 KW |
| Arm Sensor Resolution (VR version) | 2,700,000 c/r |
| Remote Head Sensor Resolution (VR version) | 2,700,000 c/r |
| Lens Sensor Resolution (VR version) | 32,768 c/r |
| Compatible Cameras | Studio full/semi-servo Canon, Fujinon lenses; with optional lens motor controls cinema-grade cameras |
