SWALLOWS Light Camera & PTZ Crane Robot(5kg)

This is a lightweight robotic camera arm. If you use PTZ cameras, DJI gimbals, or small cameras under 5kg, SWALLOW robotic arm is an ideal solution.





Works with Major PTZ Cameras, Built-in Protocols



It supports most mainstream PTZ cameras, including Panasonic UE series, Sony FR series, Canon series, VISCA protocol PTZ cameras, etc. With built-in communication protocols, it acts as an all-in one robotic arm for professional dynamic shooting.







Fits Remote Heads Under 5kg



Compatible with Zooxer remote heads weighing less than 5kg, directly control handheld DV cameras, DSLRs, and small cinema cameras.







Ultra-Portable, Retractable & Mobile



Light enough to fit entirely into a single rolling case. The arm is retractable and can set up on professional dolly for fast, flexible movement.







Free-D Tracking for Low-Cost VR/XR Production



Outputs highly accurate tracking data via Free-D protocol, greatly lowering the cost barrier to VR/XR virtual production — even with lightweight or PTZ cameras.







AI & Smart Control for One-Person Studio



AI auto-tracking, path pre-programming, and multi-camera centralized control, making a one-person studio easy to run. It is widely popular for non-professional users.

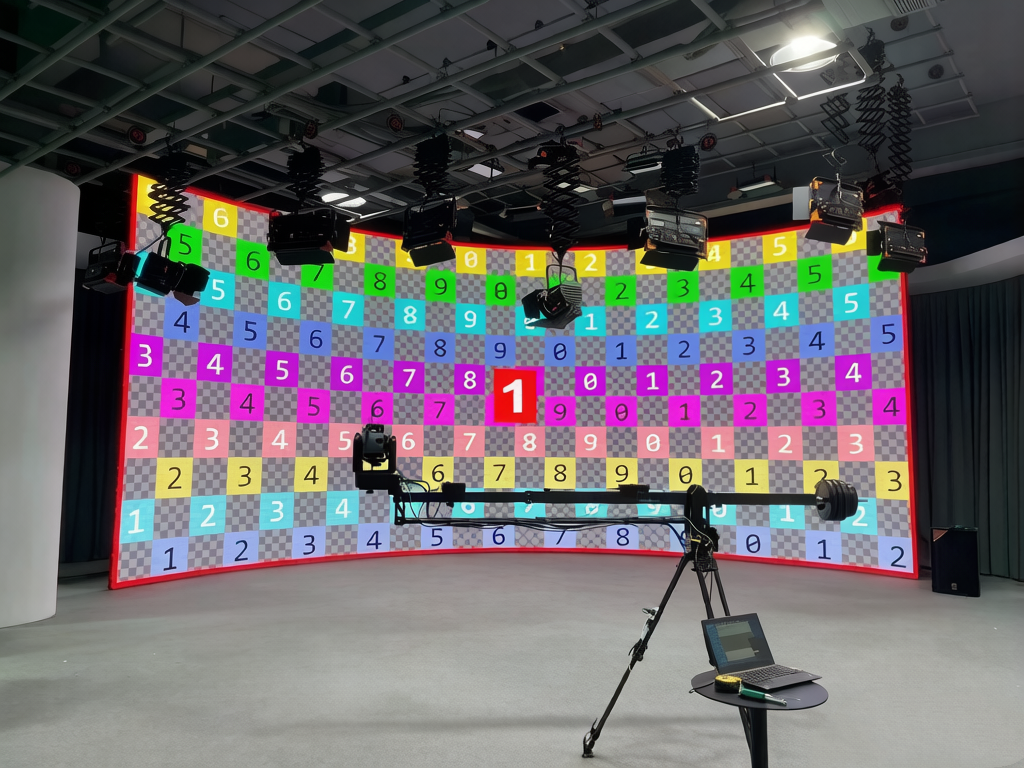

XR effects







Tech specs



Name   Swallows-VR
Remote Head  L Type Tracking Head, 2 Axis, Built-in Brushless Motors and Sensors
Pan Speed 0.1~60°/s
Head Payload 5Kg
Total Length 2.08m~2.68m
Front Length 1.19m~1.79m
Rear Length 0.89m
Crane Ht on Level Pst.   1.27m As Tripod Set At 1.00m
Lens Ht on Level Pst. 1.56m
Max Lens Height      2.78m
Crane Tilt Angle +50° ~ -50°
Support Type 100mm Bowl Tripod
Weights  23.3Kg(Head:2.3Kg, Crane:9Kg, Spin unit:6.5Kg, Tripod:5.5Kg)
Balance Weights  15Kg
Operation Model Remote Control Panel
Power Input DC 24V/6A
Power Out DC 12V/10A
Operating Power 90W
Crane Encoder Accy 2,090,000 c/r
Head Encoder Accy 260,000 c/r
Lens Encoder Accy 32,768 c/r
Compatible Lens

Sony, Panasonic DV cameras; Direct Control for DV Cameras;

or Cine, DV, DSLR Lens Driven by Lens Controllers
