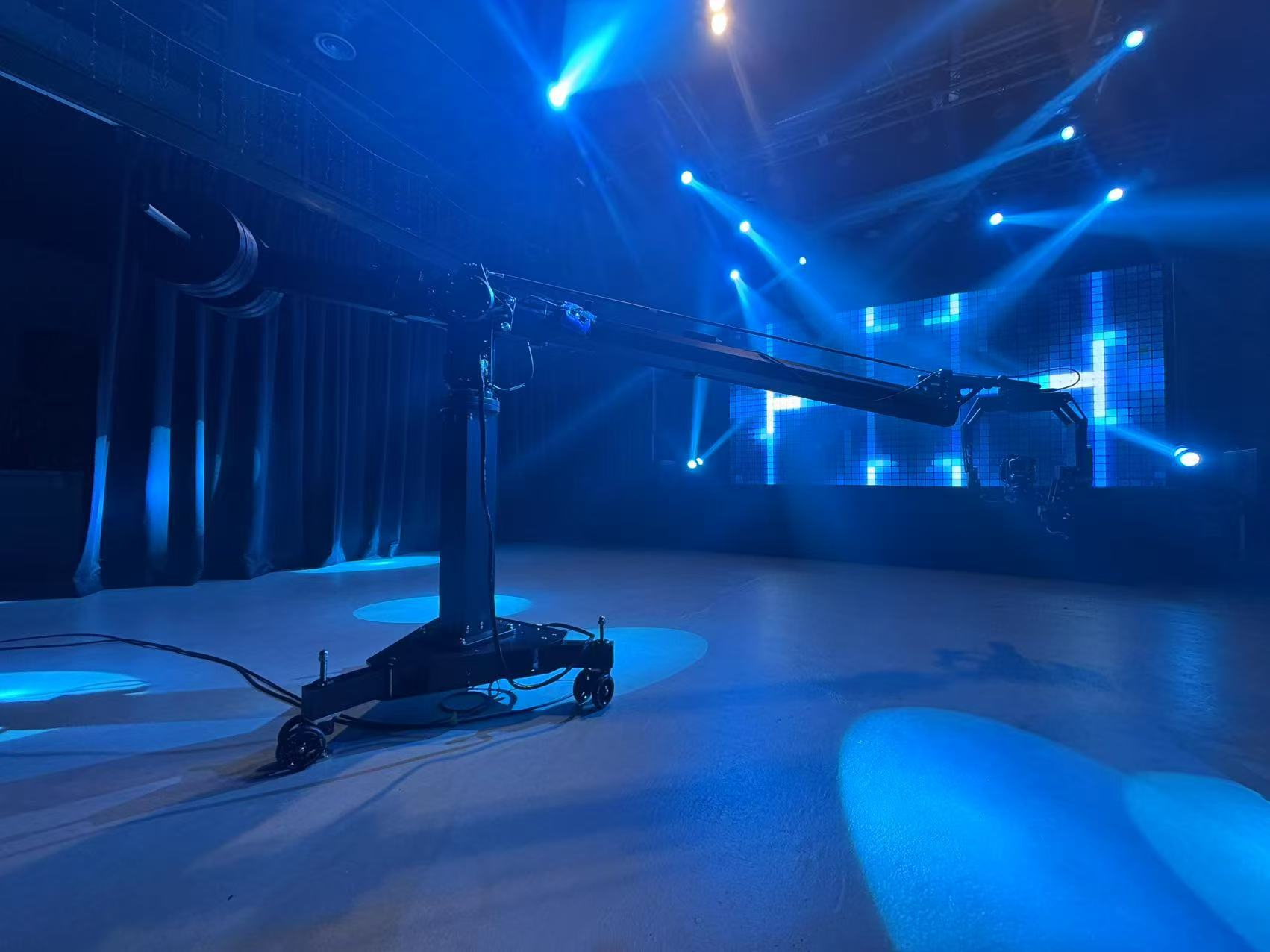

GOAT Studio Crane Robot (max 3m)
If you are looking for a no-operator-needed moving camera system for your studio, GOAT is the perfect choice.
It is an automated camera robotic arm designed for professional studio shooting, with high cost-performance and intelligent functions.
High Cost-Performance for All Type of Cameras
It supports professional studio cameras, cinema cameras, small handheld cameras, and even DSLR cameras.

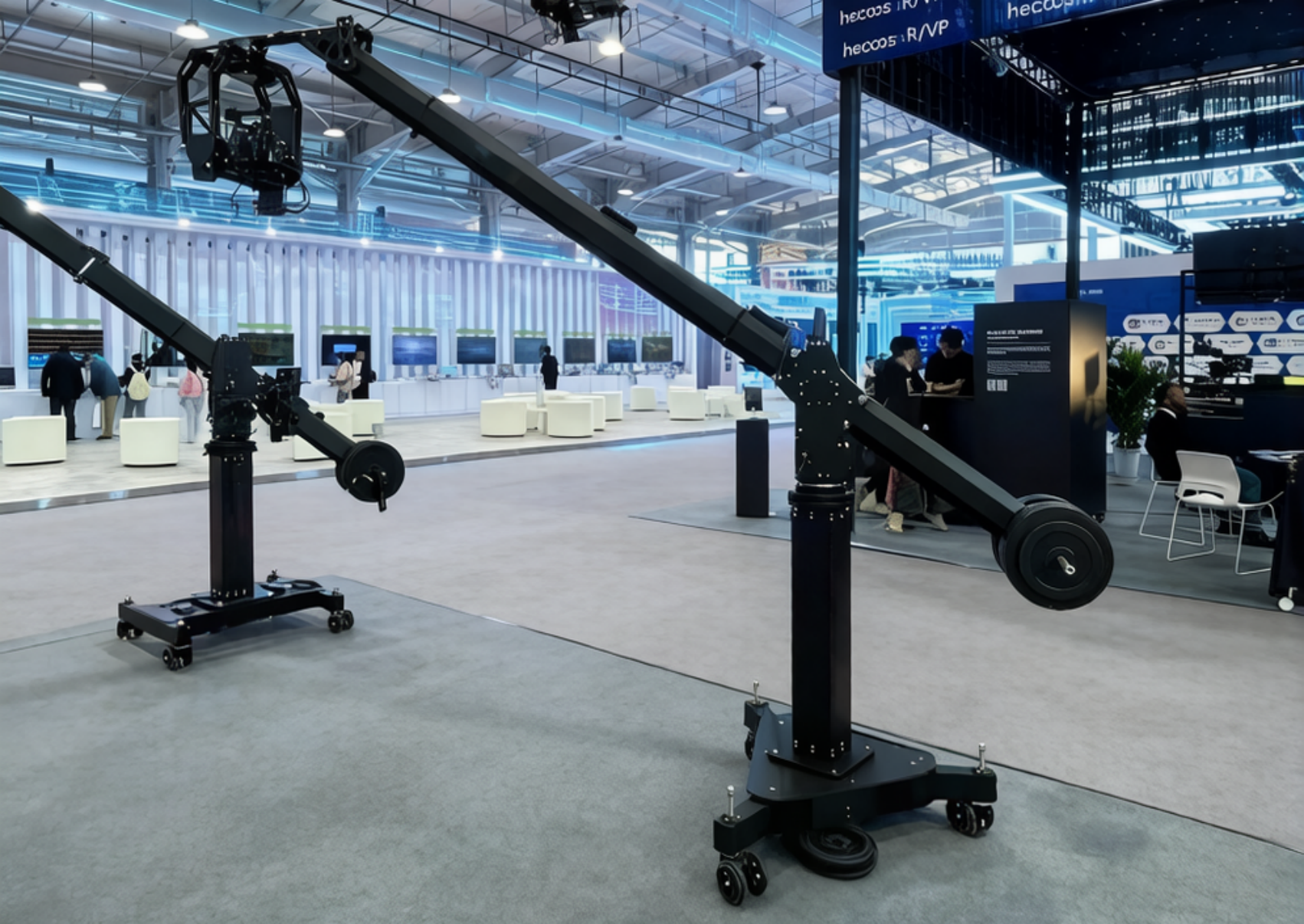

Compact Design for Automated Shooting
Specially built for automated production, with a small triangle shaped dolly and a maximum arm length of 3.4m, ideal for small- and medium-sized studios.

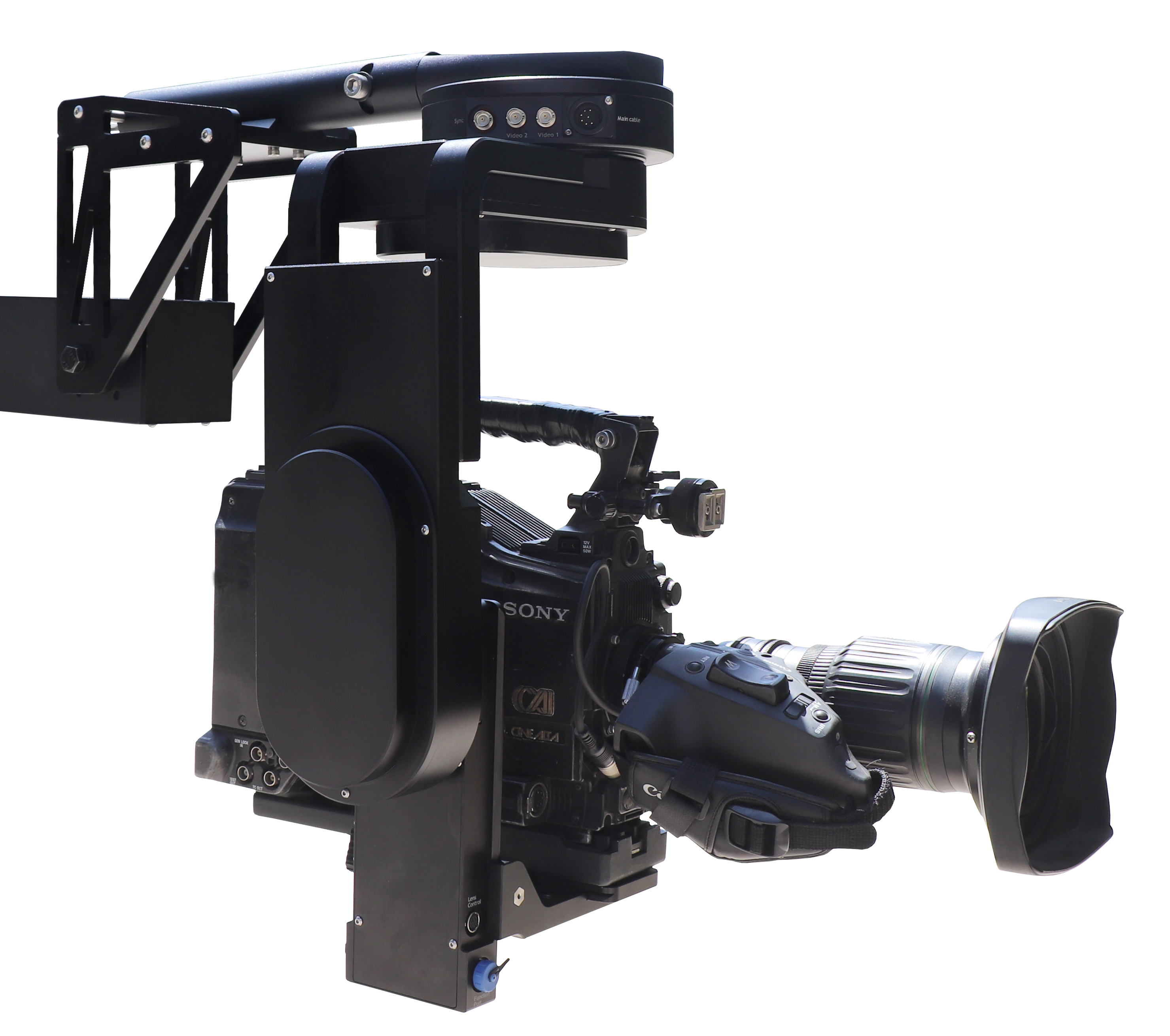

Two Remote Heads for Different Needs
You can choose a lightweight and professional L-shaped head, or a high-torque U-shaped head that supports a teleprompter.
Flexible, Quiet & Full-Featured
Like Gazelle, it supports both upright and underslung mounting.
It runs quietly and accurately, can set up multi-directional safety radar, supports Free-D tracking data output, and features AI auto-tracking.
Tech Specs
| Model | Goat-3M |
| Remote Head Type | L-type 2-axis standard remote head; U-type 2-axis heavy-duty remote head |
| Remote Head Speed | Pan, Tilt: 0.01~60°/s |
| Remote Head Payload | L-type standard remote head: 25 kg; U-type heavy-duty remote head: 30 kg |
| Total Arm Length | 3.32m |
| Remote Head Reach | 2.46m |
| Operator End Reach | 0.86m |
| Arm Height at Horizontal Position | 1.37m |
| Lens Height at Horizontal Arm Position | 1.08m |
| Max Lens Height | Underslung remote head: 2.54 m; Top-mounted remote head: 3.30 m |
| Arm Tilt Range | +45° ~ -30° |
| Support Base Type | Triangular dolly, swivel dual wheels, built-in electronic control system |
| Support Base Dimensions | Circular footprint, 1.00 m diameter |
| Net Weight (excl. Counterweight) | 90Kg |
| Recommended Counterweight (approx.) | 60Kg |
| Operation Mode | Remote Control Panel |
| Power Input | AC 220V/10A, 50/60 Hz |
| Power Out | DC 15V/10A |
| Operating Power | 1.00 KW |
| Arm Sensor Resolution (VR version) | 2,700,000 c/r |
| Remote Head Sensor Resolution (VR version) | 2,090,000 c/r |
| Lens Sensor Resolution (VR version) | Lens Motors：32,768 c/r |
|
Compatible Cameras |
Studio full/half-servo Canon, Fujinon lenses; with optional lens motor controls cinema, DV and DSLR cameras |
