DRAGONFLY Telescopic Crane (6m)

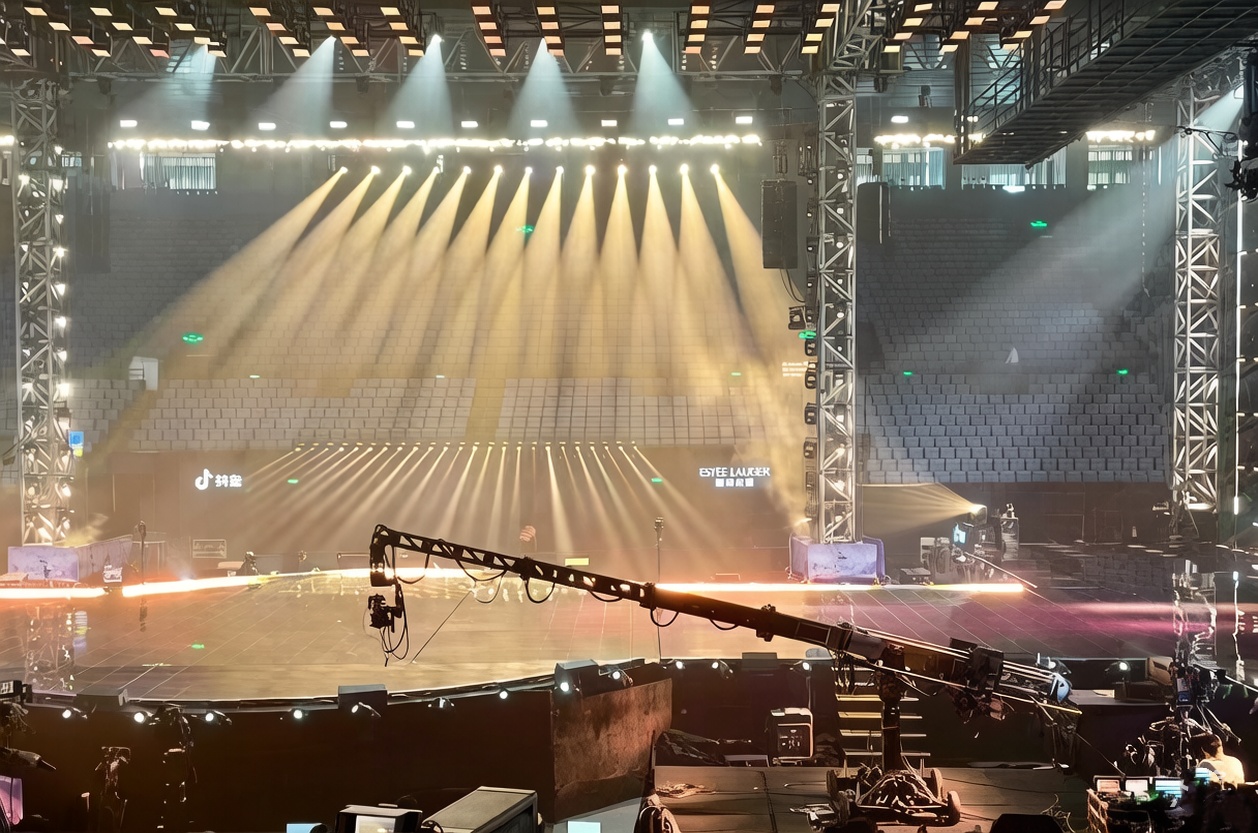

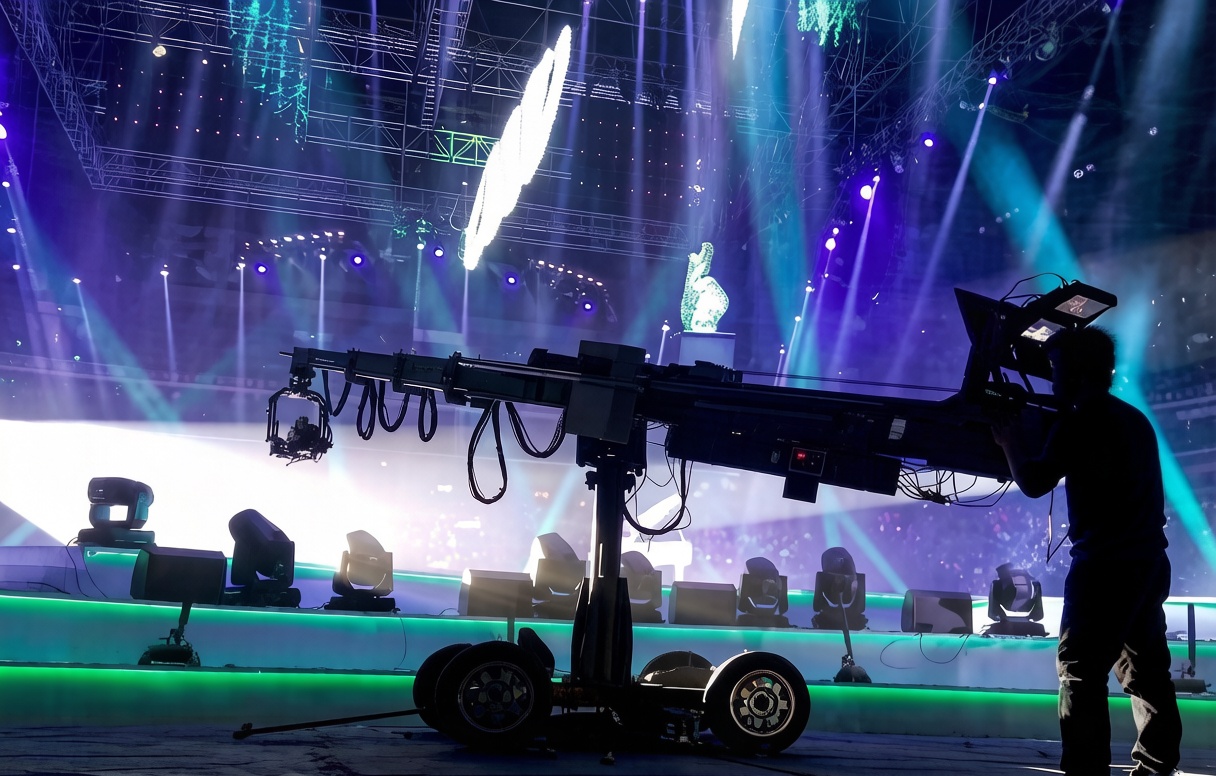

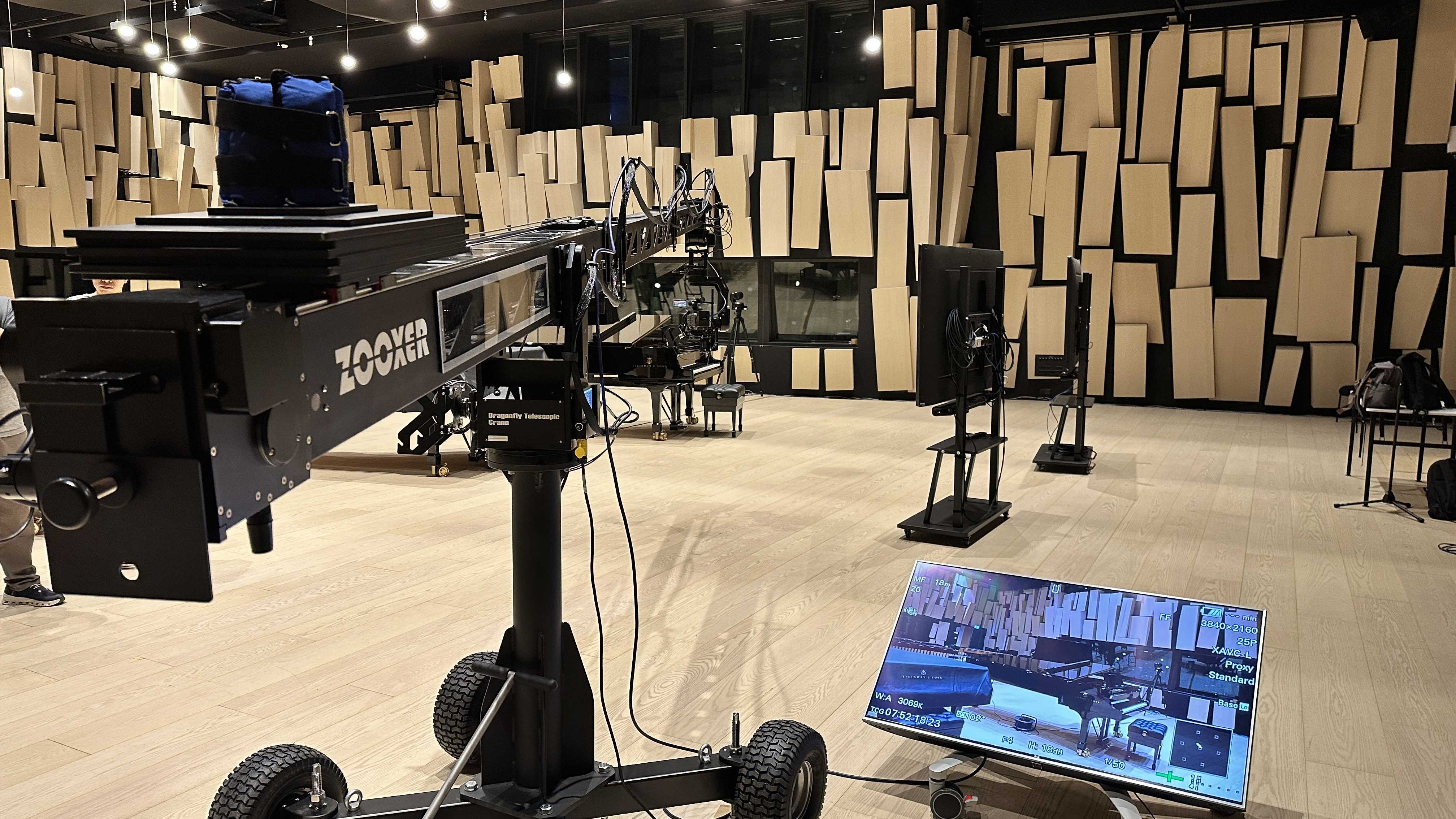

If you’re looking for a 6m telescopic jib system, quiet, smooth, and operable by one person for your studio, Dragonfly is a highly cost-effective and popular choice.





Just Right for Studio

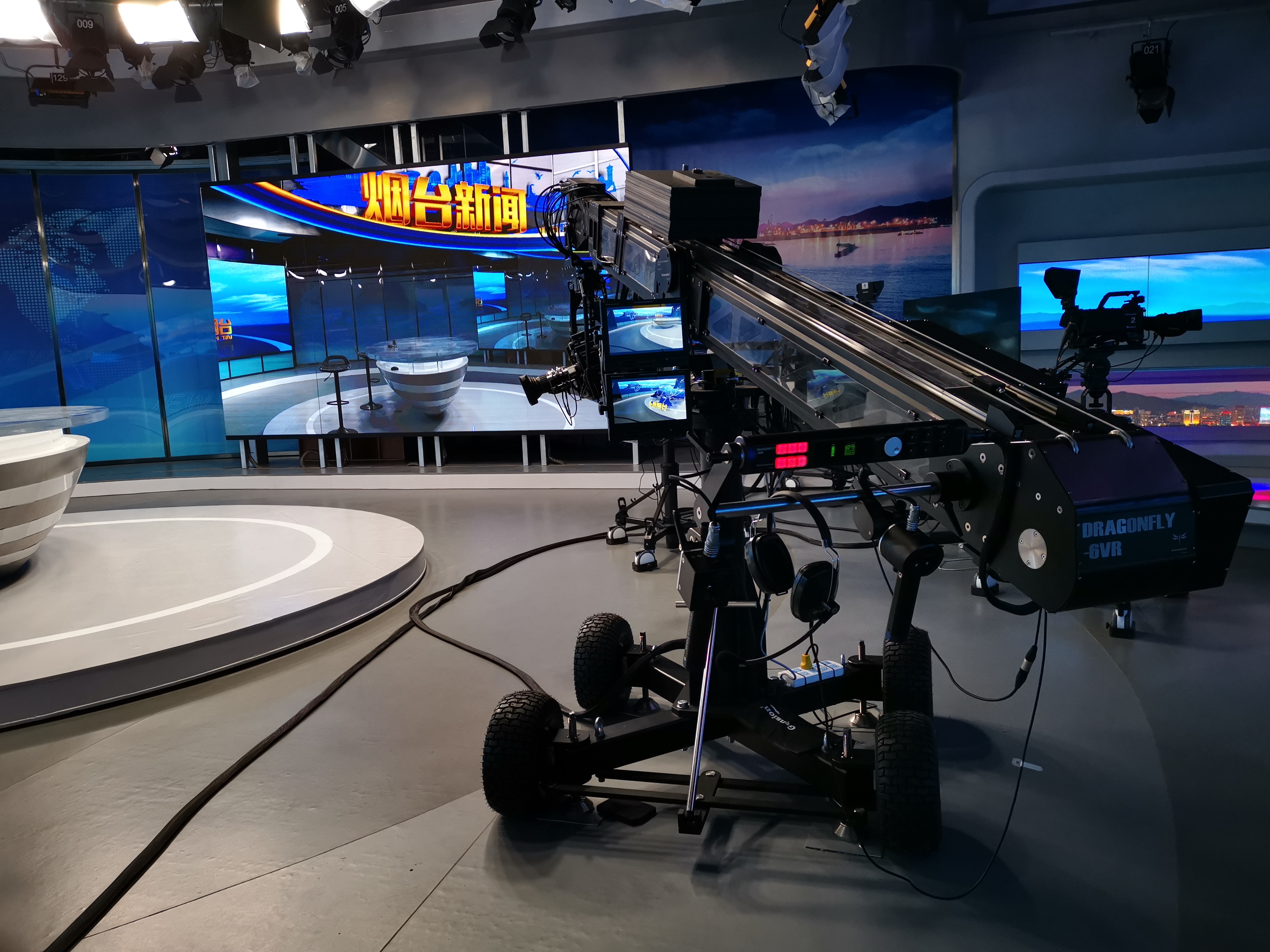

6m long jib, quiet operation, lightweight and easy to move. Perfect for medium-sized indoor studios, it delivers smooth and amazing camera movement shots.







Easy Single-Person Operation

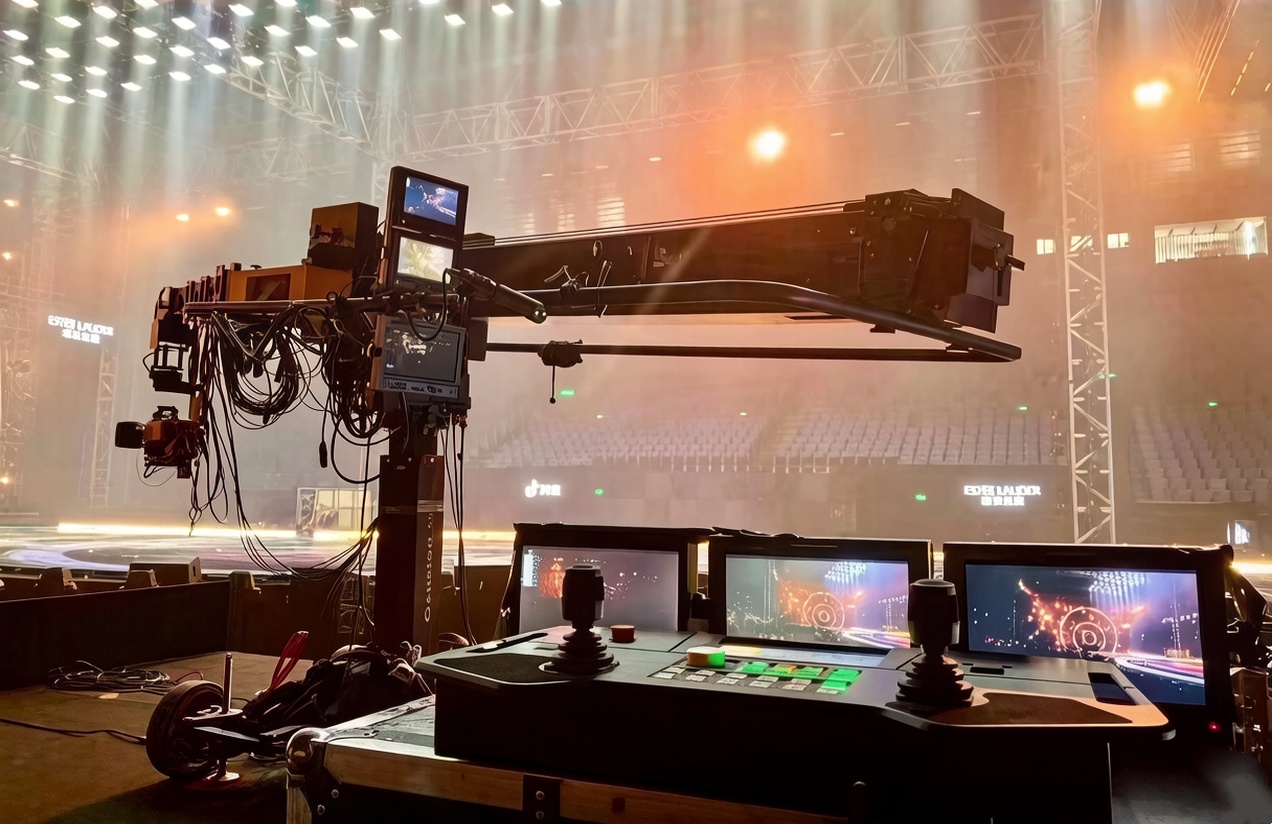

Usually operated by one cameraman with two handles: thumb controls gimbal, index or middle finger controls jib extension, the other thumb controls zoom, and index finger controls focus—making single-person shooting easy. Cameraman has LED data display at side, wide monitoring view, able to observe shooting environment at any time to avoid accidents.







Powerful Head with Teleprompter



Equipped with high-load U-shaped gimbal, which can mount heavy cameras and professional large-screen teleprompters. Ensures clear reading and broadcasting at 10m distance, bringing great convenience for hosts in program recording.

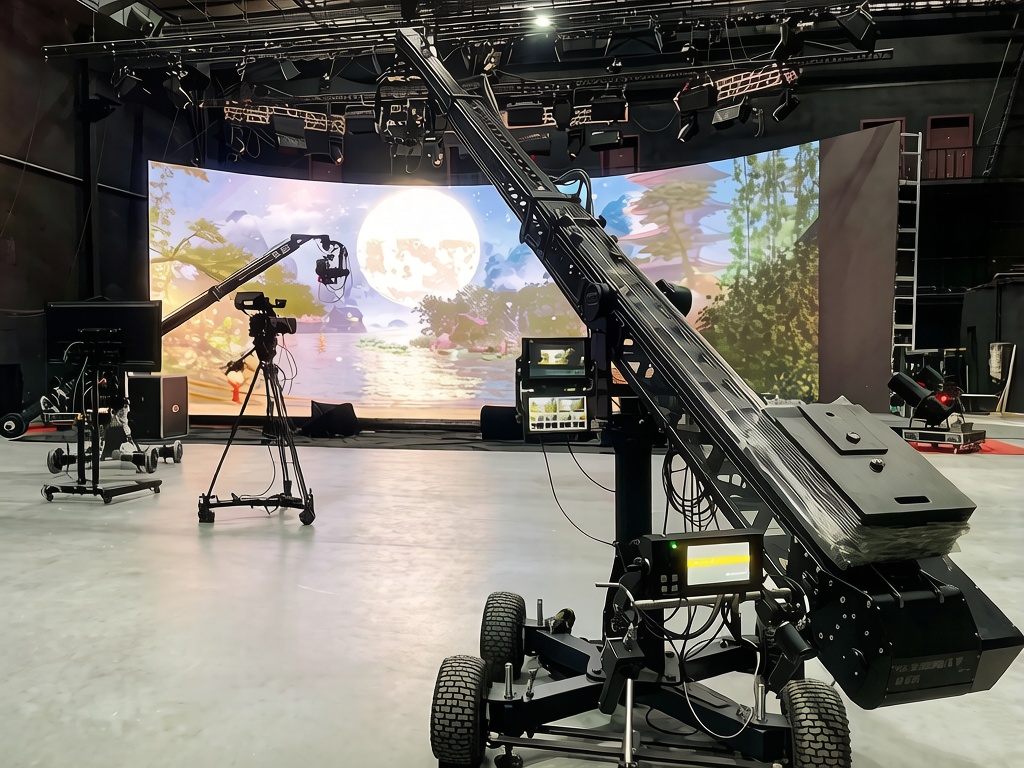

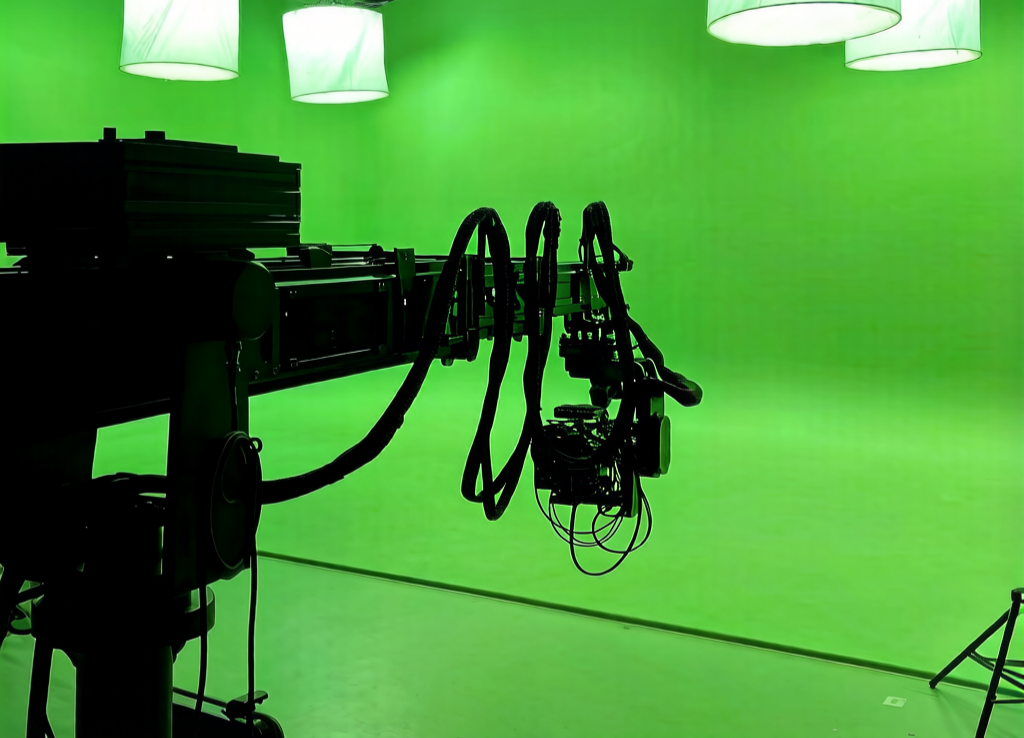

Virtual Tracking Compatibility



Outputs accurate virtual tracking data, usable for VR or XR production via Freed protocol. It has all built-in high-precision sensors, with data displayed on LED screen in real time. Compensation amount that may occur is optimized, greatly improving work accuracy.







Flexible Track Movement



Can be installed on rails for shooting. Powerful motor system—you can drive jib to move on rails with a thumb touch, allowing cameramen to move it easily in any standing position.

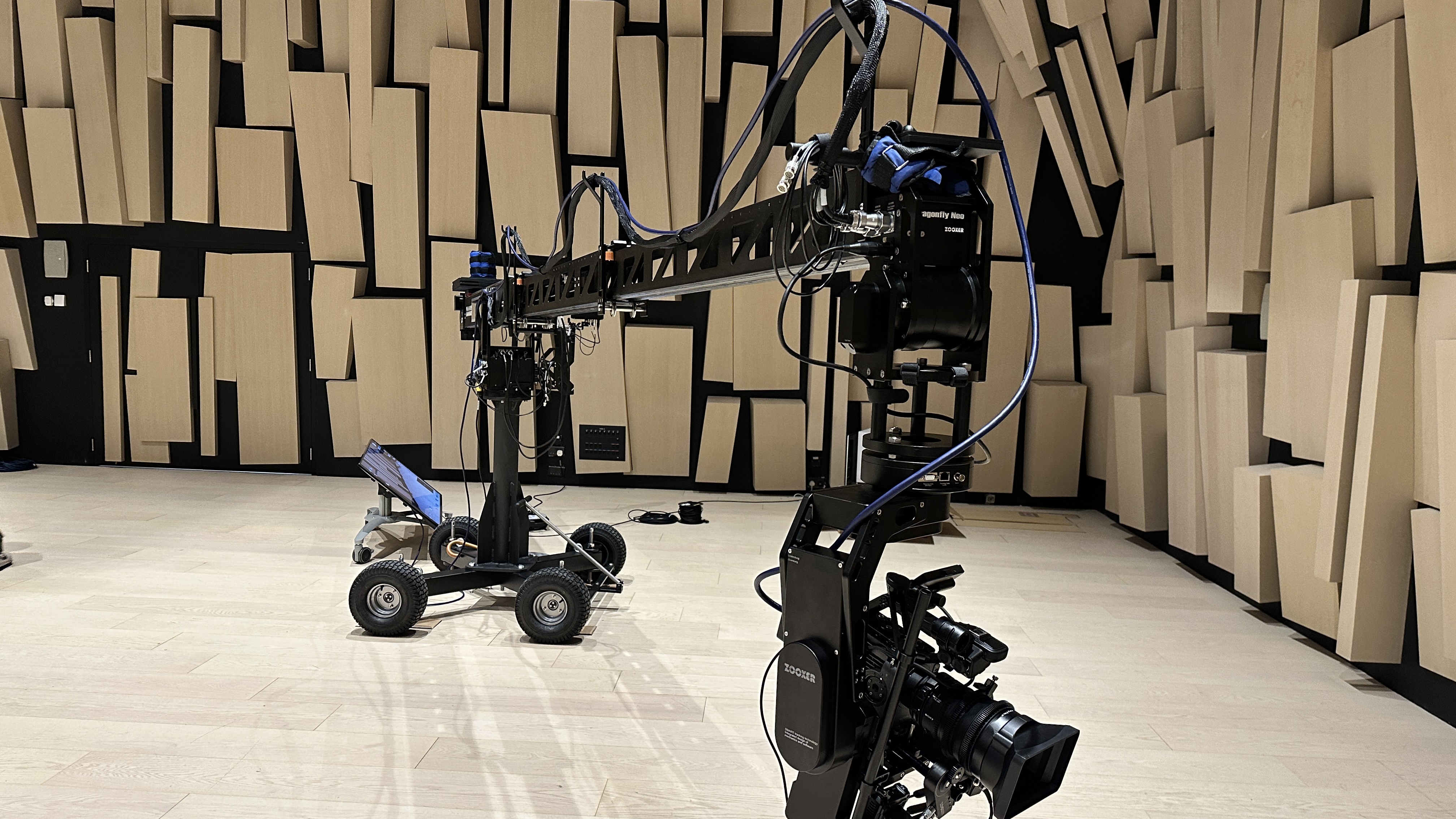

Gimbal & Lens Compatibility



Offers rich gimbal options—can use standard 2-axis gimbals, 3-axis gyro-stabilized gimbals of the same brand Zooxer, or mount third-party gimbals like DJI. If driving lenses without built-in motors, connect three lens motors in series for remote control.







Tech Specs



Model Dragonfly-6M
Remote Head L-type 2-axis standard remote head;
U-type 2-axis heavy-duty remote head;
3-axis gyro-stabilized remote head;
Remote Head Speed L-type / U-type 2-axis remote head: 0.01–60°/s;
3-axis gyro-stabilized remote head: 0.01–120°/s
Remote Head Payload L-type 2-axis standard remote head: 25 kg;
U-type 2-axis heavy-duty remote head: 30 kg;
3-axis gyro-stabilized remote head: 20 kg
Third-party Remote Head Compatibility Combined weight of remote head, camera and accessories ≤ 35 kg
Total Arm Length Max. 6.20 m; min. 3.00 m
Arm Telescopic Range 3.20m
Arm Extension Speed 1.4m/s
Remote Head Reach 4.55 m (max.)
Operator End Reach 1.75m
Arm Height at Horizontal Position Standard column: 1.90 m (highest point); 1.70 m (center axis height)
Lift column: 1.87~2.27 m (highest point); 1.67 m~2.07 m (center axis height)
Lens Height at Horizontal Arm Position 0.95m
Max Lens Height ≈4.50m
Arm Tilt Range +50° ~ -50°
Support Base Type Aluminum square dolly, steerable four wheels, steel screw jacks
Support Base Dimensions Length:1.33m;Width:1.28m
Net Weight (excl. Counterweight) 200Kg
Recommended Counterweight (approx.) 100Kg
Operation Mode Dual-operator: telescopic joystick + remote head control panel;
Single-operator: dual remote joysticks
Power In AC 220V/10A, 50/60 Hz
Power Out DC 15V/10A
Operating Power 1.20 KW
Arm Sensor Resolution (VR version) 2,700,000 c/r
Remote Head Sensor Resolution (VR version) 2,700,000 c/r
Lens Sensor Resolution (VR version) 32,768 c/r
Compatible Cameras Studio full/semi-servo Canon, Fujinon lenses;
with optional lens motor controls cinema-grade cameras
