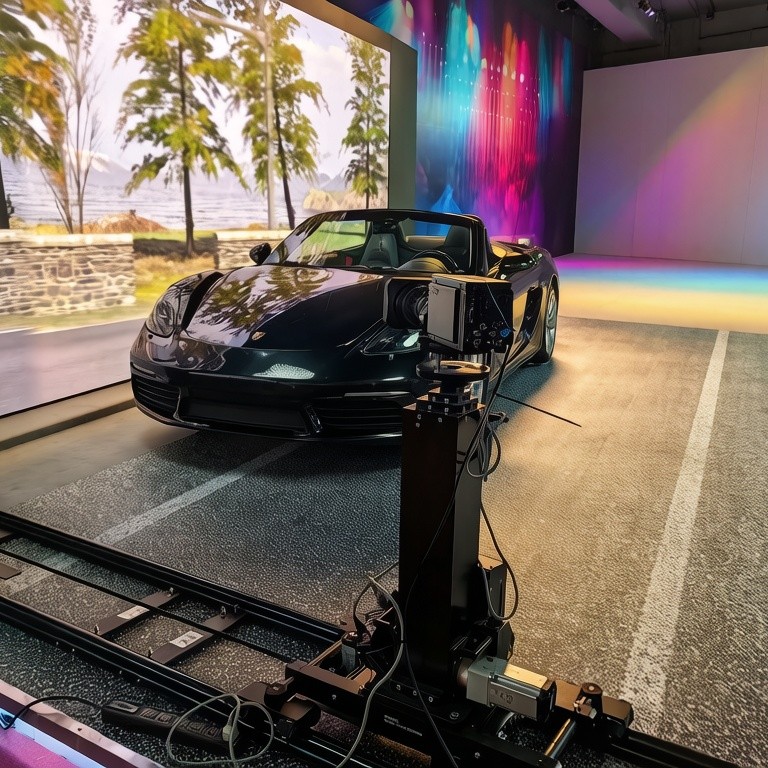

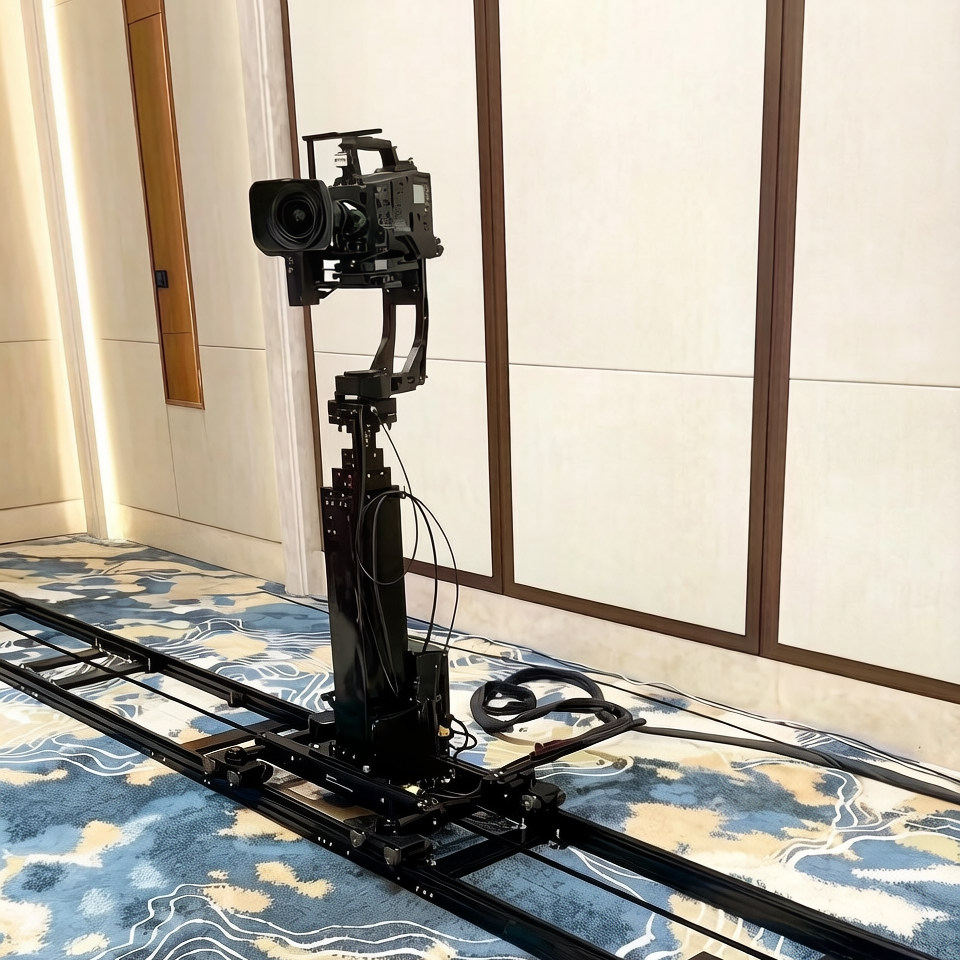

PENGUIN Rail Camera Robot

This is a rail‑based robotic camera system. No matter how extreme the setup or visual demands may be, Penguin consistently delivers with its powerful modularity and practical, ready‑to‑deploy design.





Design of Modularity

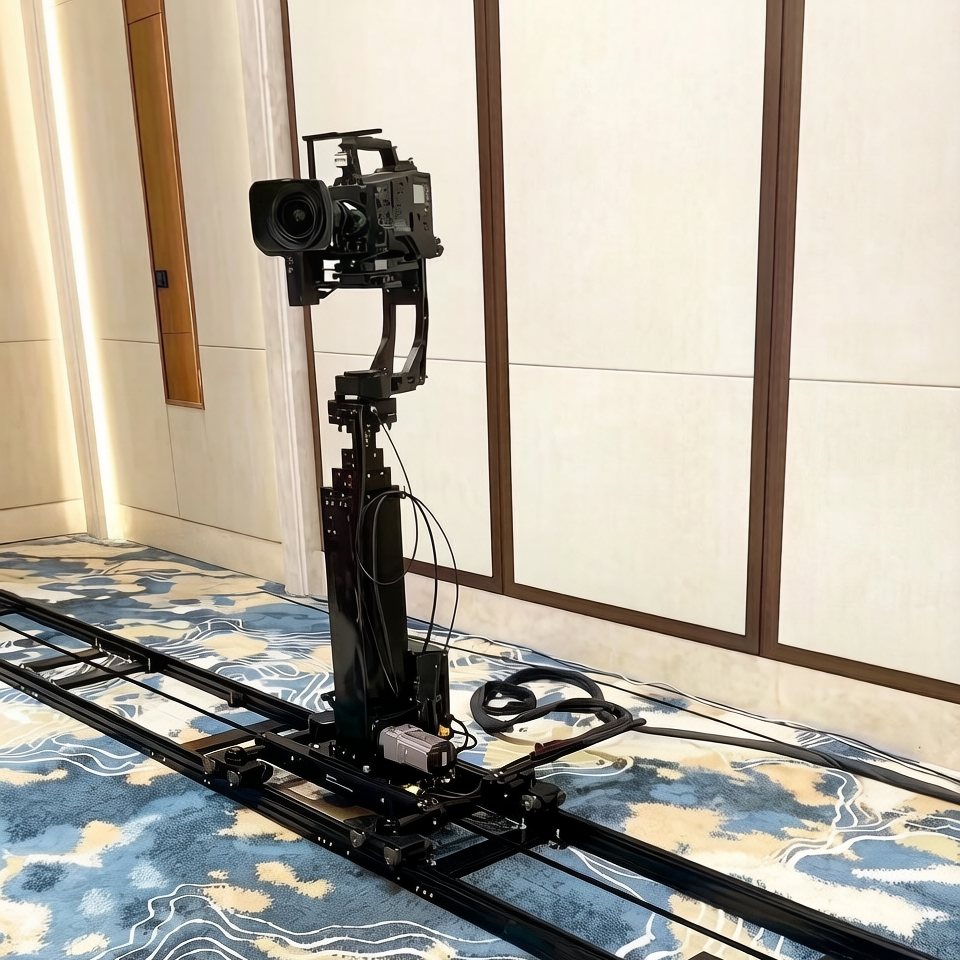

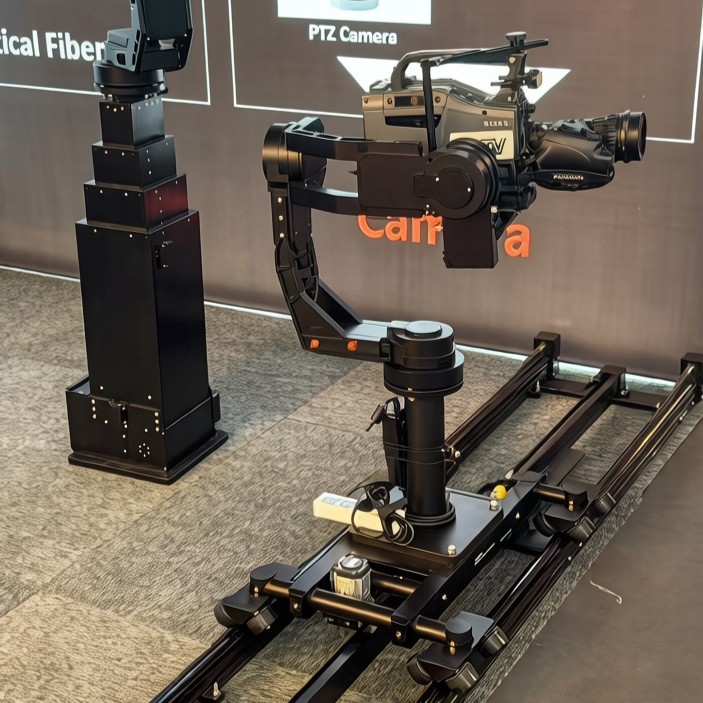

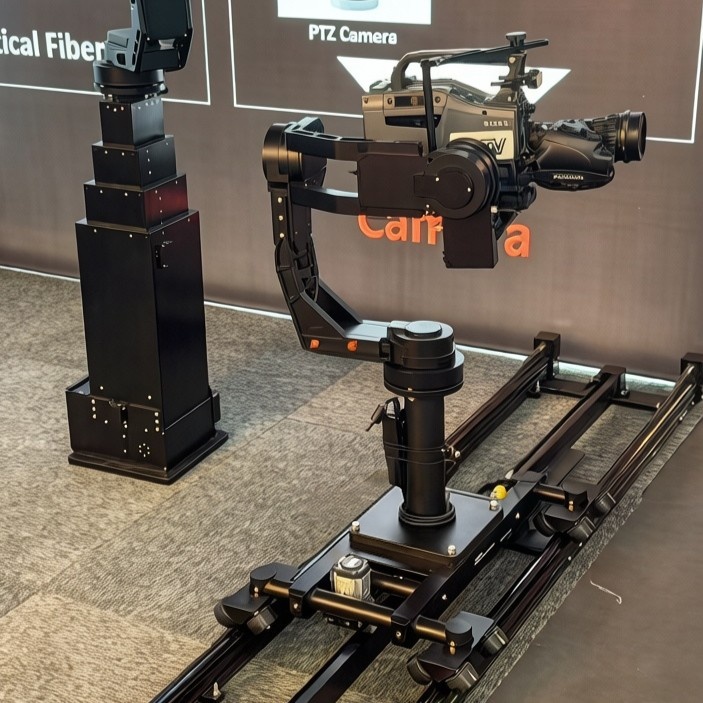

The dolly, elevation column, and remote head are fully independent modules. Each can work alone or combine with others without disrupting the entire system. For example: mount the head directly on the dolly for low angle shots, or on the column for a fixed position.

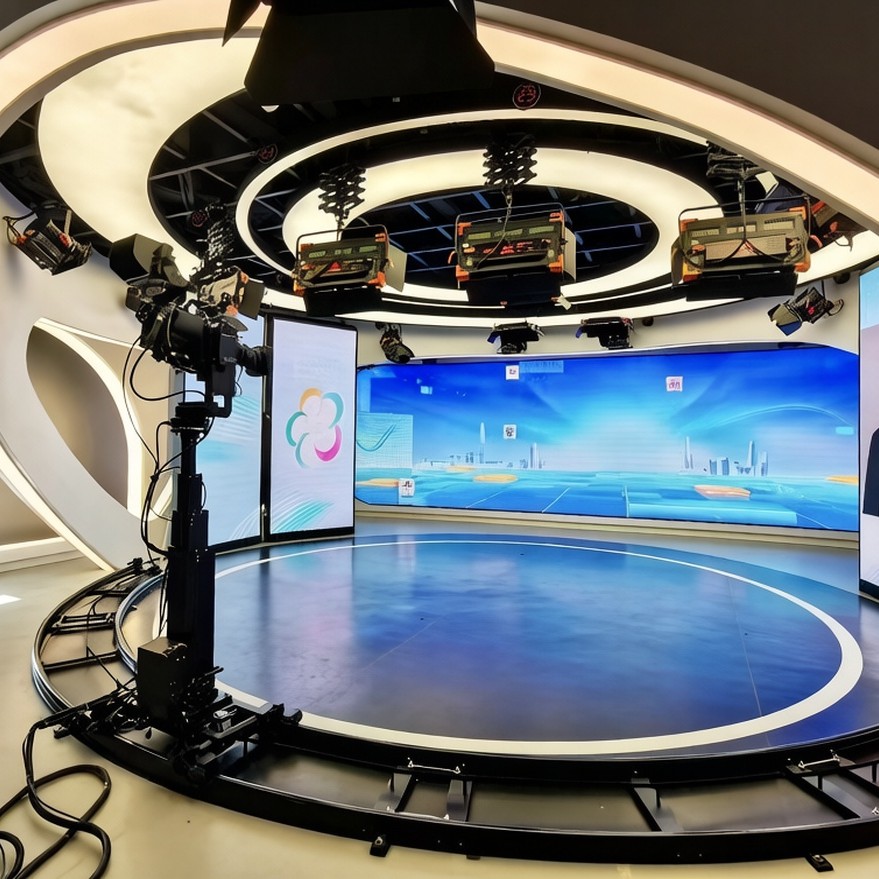

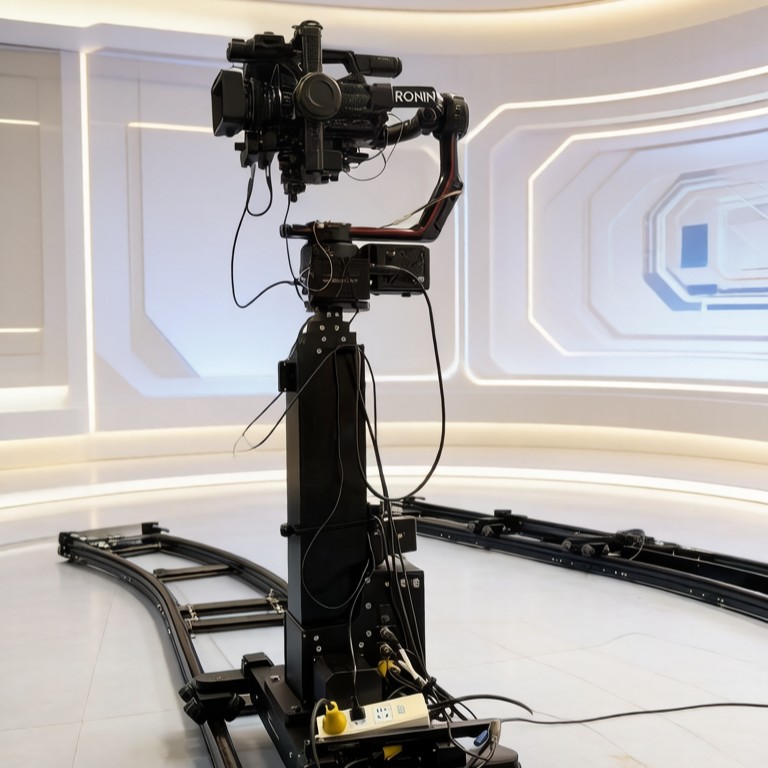

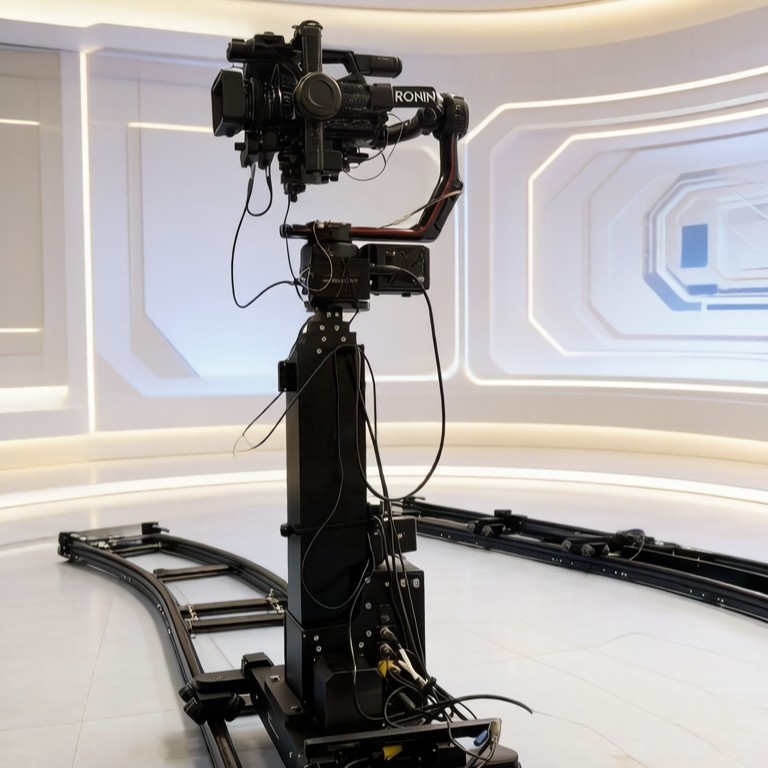

Track Flexibility: Straight & Curved



It adapts to any track layout—straight, curved, or a mix of both. Constructed from aviation grade aluminum, the tracks are precise, strong, and resistant to warping or aging over time.









Speed & Quiet Operation

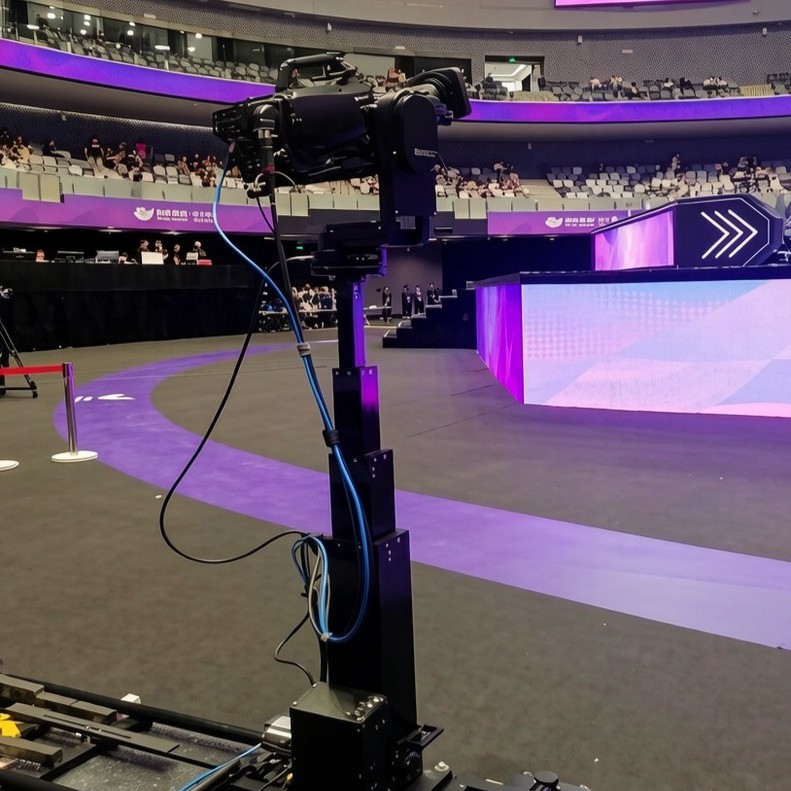

The dolly reaches up to 3.5 meters per second with exceptional noise control. It’s ideal for sports (like swimming), entertainment, conferences, and studio environments.









2-Axis, Gyro-stabilized Head and More

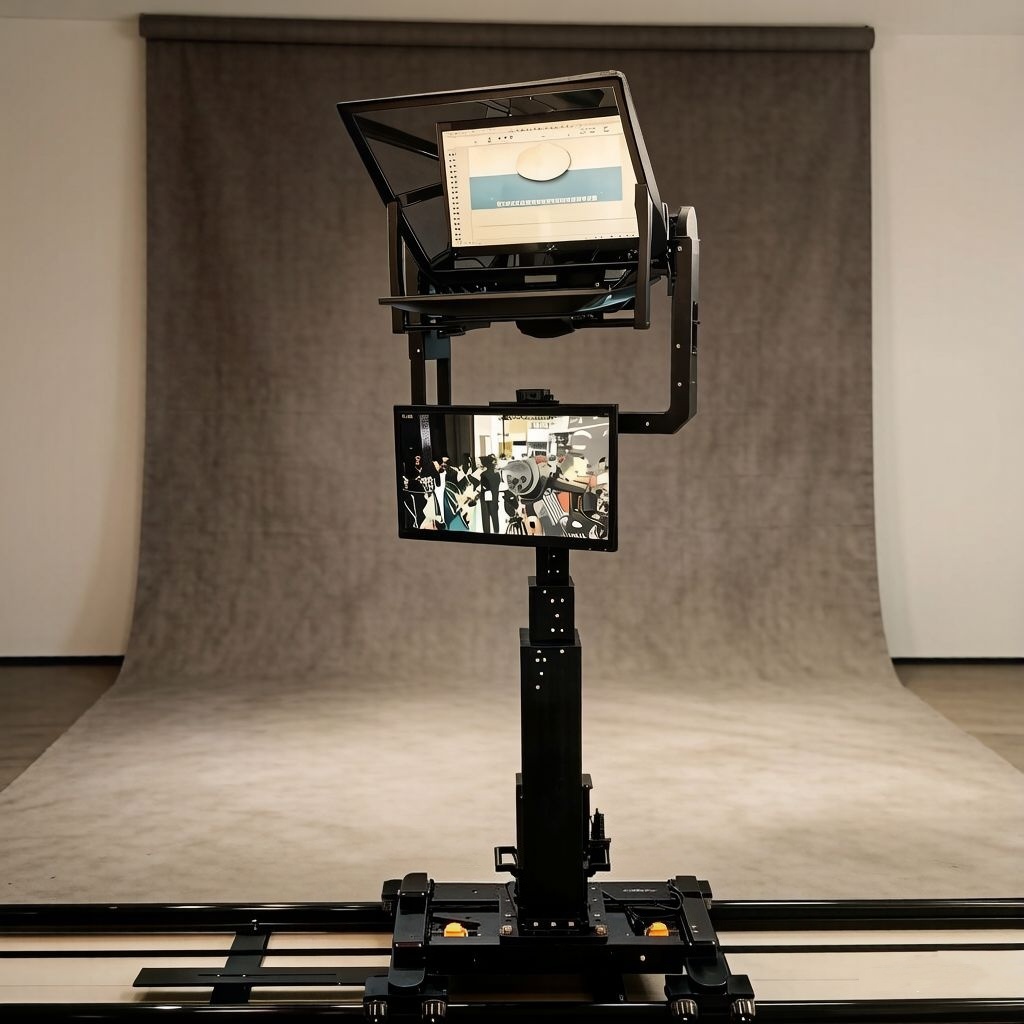

It works with virtually all pan tilt heads, including standard studio heads, high torque heads for teleprompters, gyro stabilized high precision heads, and PTZ heads. This versatility covers almost every camera type.

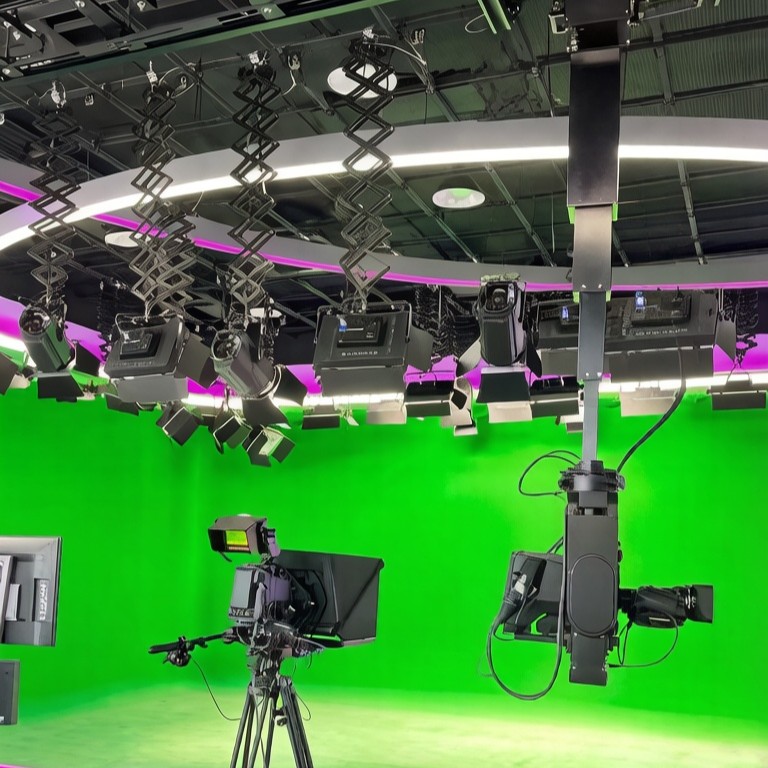

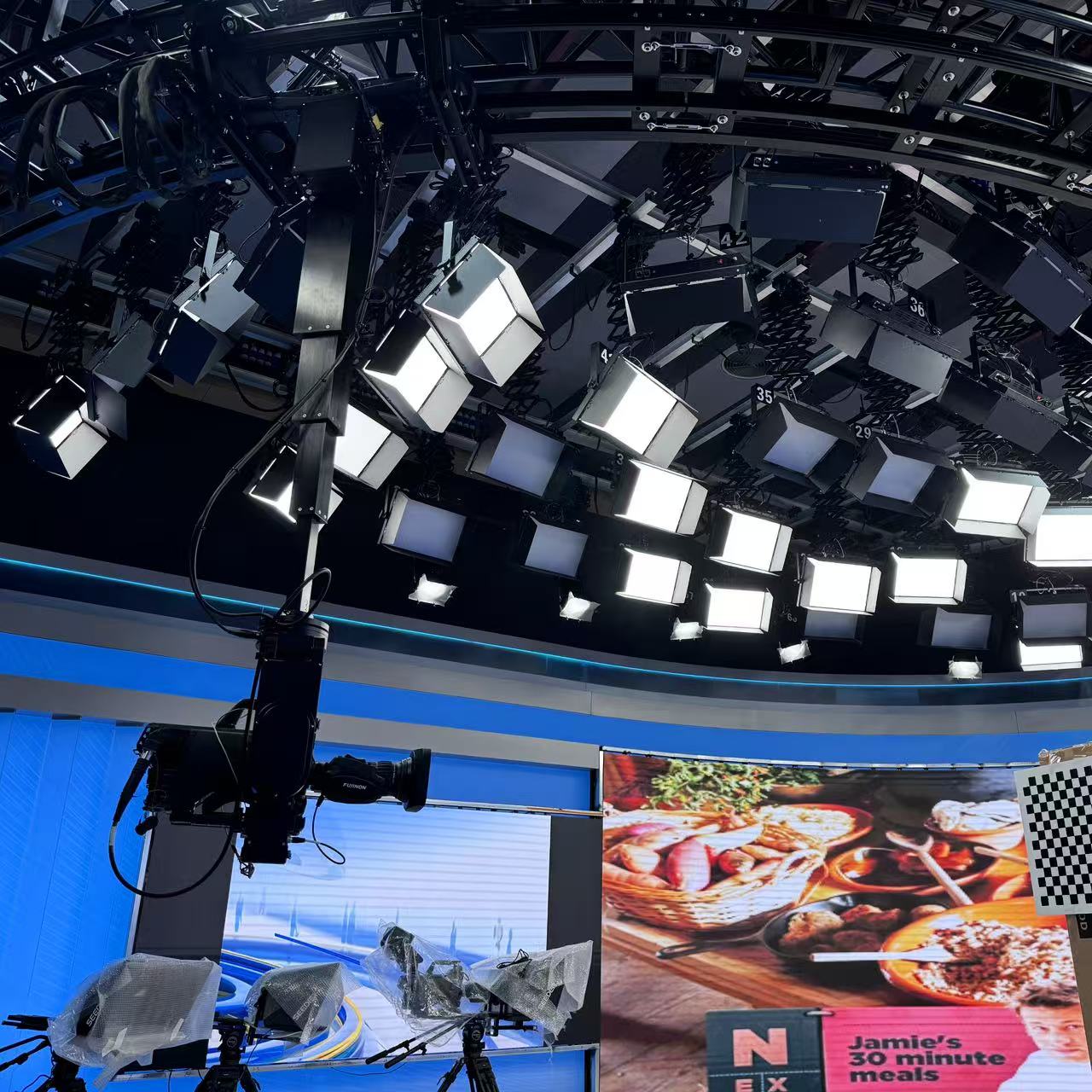

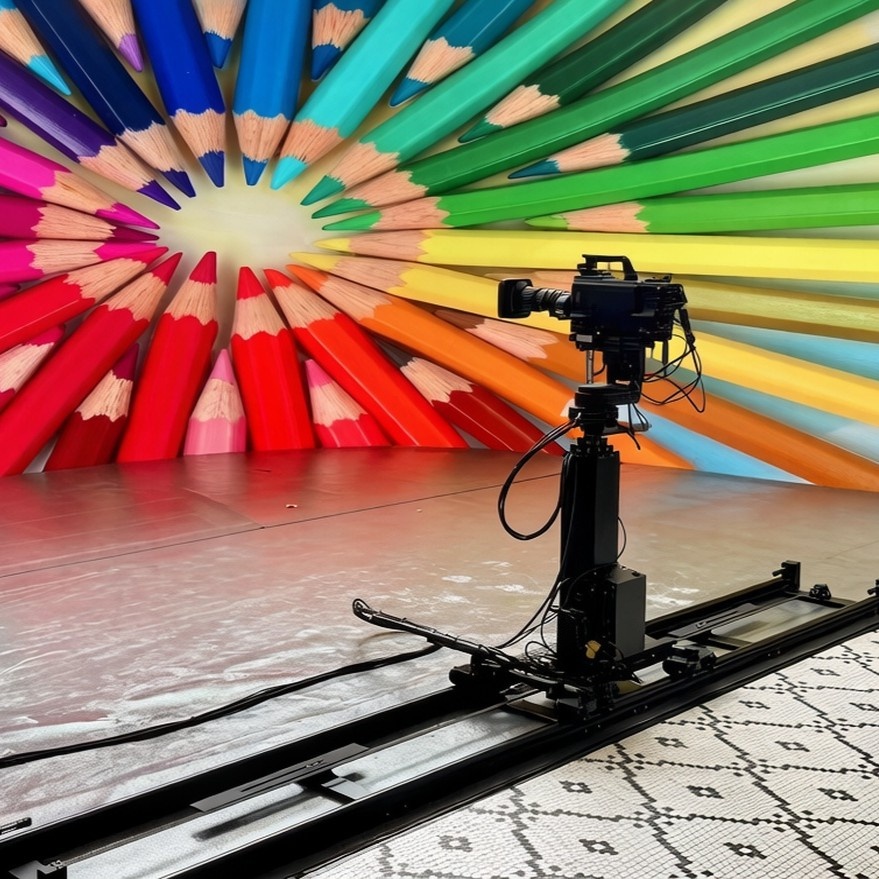

Ground Setup & Ceiling Setup

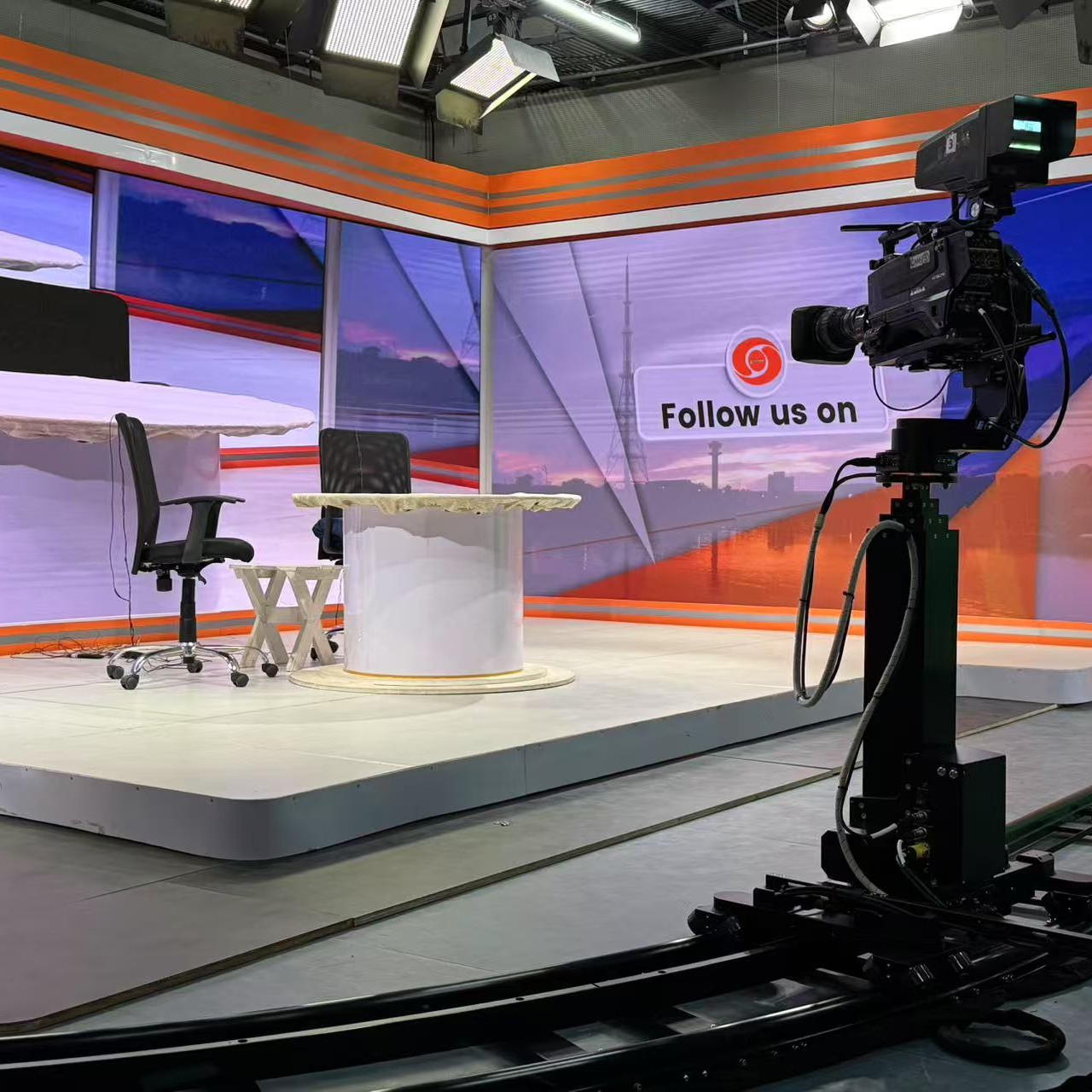

Tracks can be placed on the floor or ceiling mounted. The system fits smoothly into both early studio design phases and later equipment upgrades.









All for Safety

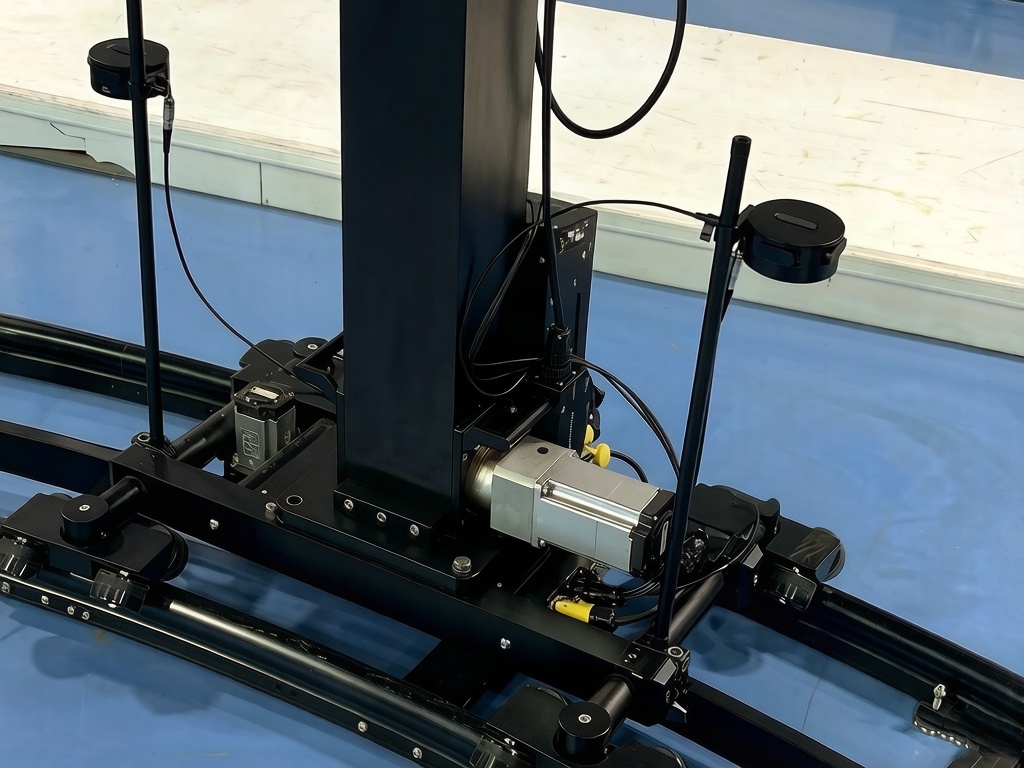

Penguin ensures full life cycle safety with end of track proximity radar, hydraulic dampers, multi direction following radar, motor torque monitoring, and software position limits—keeping operations safe and reliable.







Precise Virtual Tracking



It outputs stable, accurate virtual tracking data via the Free D protocol, compatible with major rendering engines. Perfect for VR and XR production.









Centralized Camera Control

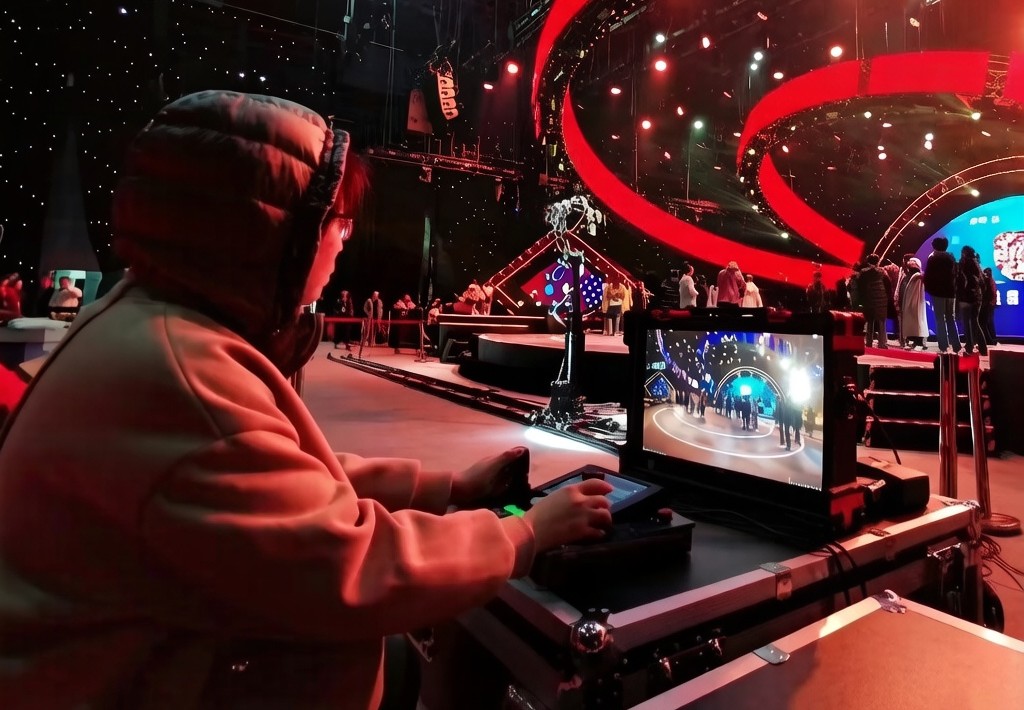

With its remote panel, it integrates into multi camera setups for unified shot scripting. One cameraman can manage the entire studio production.









ALL in One







Ceiling Robots





Tech Specs



Name	Penguin-VR	Penguin-S-VR
Remote Head	L Type Tracking Head, 2 Axis;  U Type Tracking Head, 2 Axis;   Gyro Stabilized Head, 3 Axis	L Type Tracking Head, 2 Axis;  U Type Tracking Head, 2 Axis;   Gyro Stabilized Head, 3 Axis
Pan Speed	L Type Head: 0.01~60°/s;  U Type Head: 0.01~60°/s;  Digital Gyro Stabilized Head: 0.01~120°/s
Head Payload	L Type Head: 25Kg;  U Type Head: 30Kg;  Digital Gyro Stabilized Head: 20Kg
Head Tilt Angle	L Type Head: +45° ~ -45°;  U Type Head: +45° ~ -45°;  Digital Gyro Stabilized Head: ±360°
Max Track Speed	1.80m/s	3.50m/s
Lifting Range	0.84m
Max Lifting Speed	1.18m/s
Lens Ht（Upward）	1.27m~2.11m
Lens Ht（Downward）	1.31m~2.15m
Dolly Type	Square Shaped Dolly with 16 Wheels; Including Tracking and Positioning System	Square Shaped Dolly with 16 Wheels; Including Tracking and Positioning System,  High-power Motor Module
Dolly Size	Length: 0.80m；Width: 0.55m	Length: 0.84m；Width: 0.55m
Total Weights	56Kg (Head: 8Kg; Lifting Column: 30Kg; Track Dolly:18Kg)
Track Size	Track Width:420mm; Track Diameter:42.2mm; Track Weight: ≈15Kg
Track Type	Straight Track: 2.00m Per Segment Curved Track: Customized, Track Diameter: ≥6.00m; Radian: ≤22.5°(Arc Length＜2.00m)
Operation Model	Remote Control Panel; Programmable Automatic Control
Power In	AC 220V/10A, 50/60 Hz
Power Out	DC 15V/3A
Operating Power	1.25 KW	1.60KW
Lifting Encoder Accuracy	1,120,000 c/r	1,120,000 c/r
Head Encoder Accuracy	2,090,000 c/r	2,090,000 c/r
Lens Encoder Accuracy	Lens Controllers：32,768 c/r	Lens Controllers：32,768 c/r
Compatible Lens	Full-servo, Semi-servo Fujinon and Cannon Lens；or Lens Controller for Cine Camera, DV or DSLR Camera
