SUPER-LIFT Elevating Robot (4m)

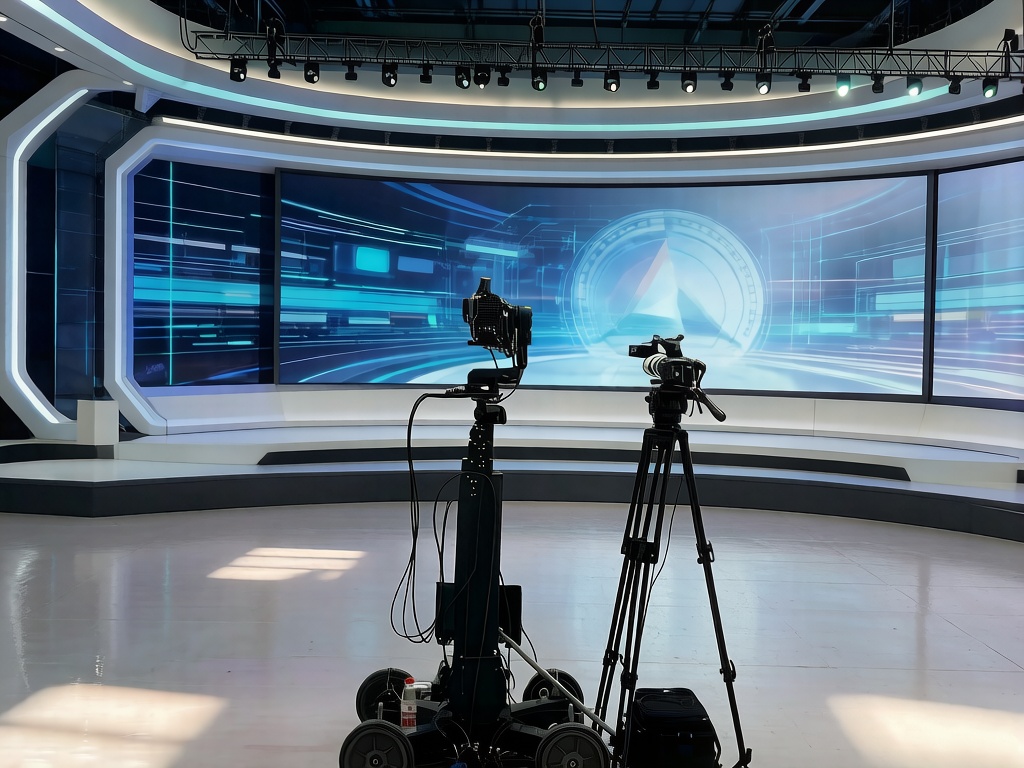

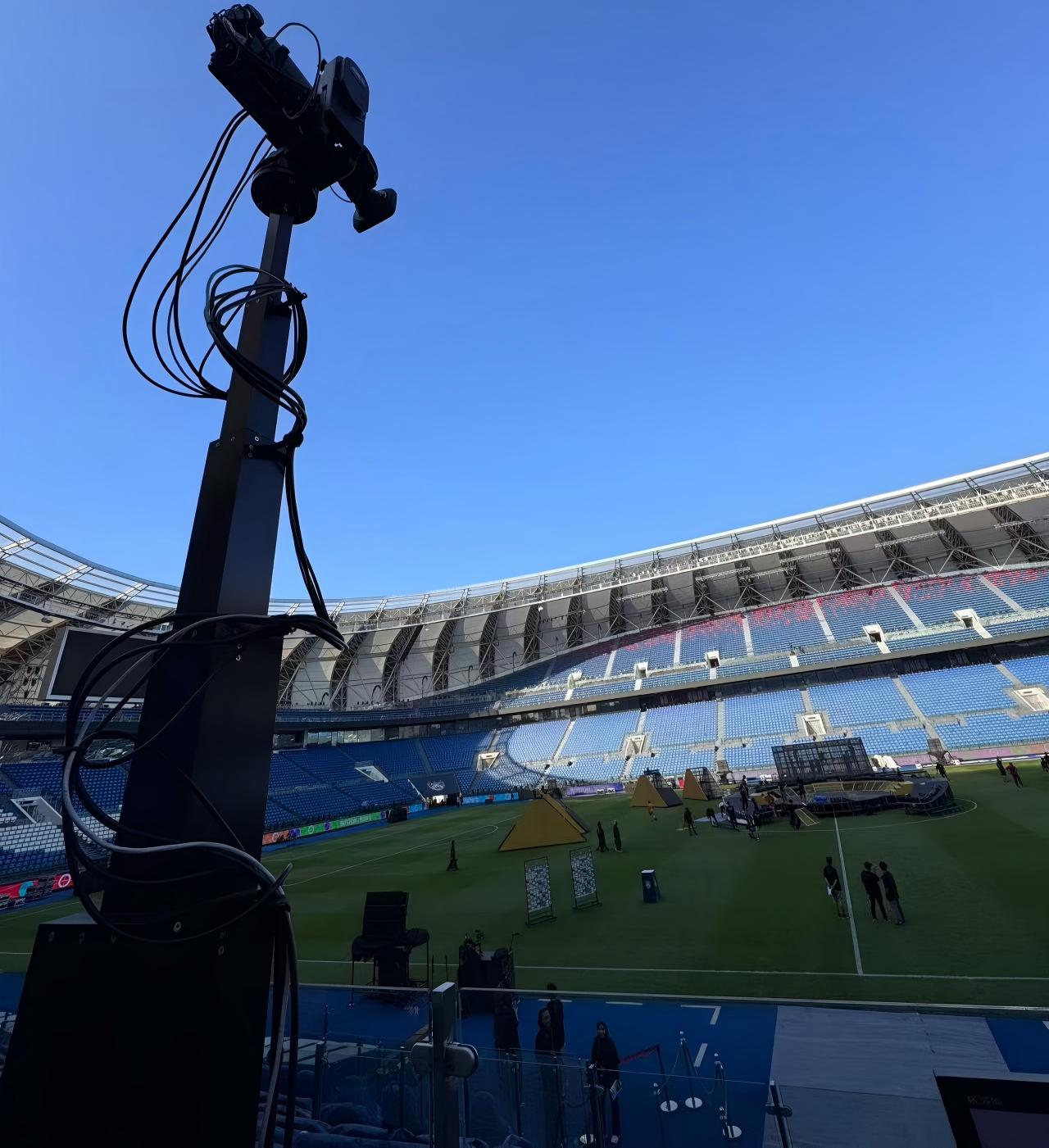

Super Lift is a 4-meter electric lifting column designed for vertical motion. It features high load capacity, supports various camera gimbals, can be floor-mounted with dollies or ceiling-mounted.





High Load Capacity & Flexible Remote Head Options



Supports 2-axis L-type heads for up to 25kg, heavy-duty 2-axis U-type heads for cameras up to 50kg, and third-party gimbals such as DJI and gyro stabilizers.







Easy Installation & Stable, Safe Operation

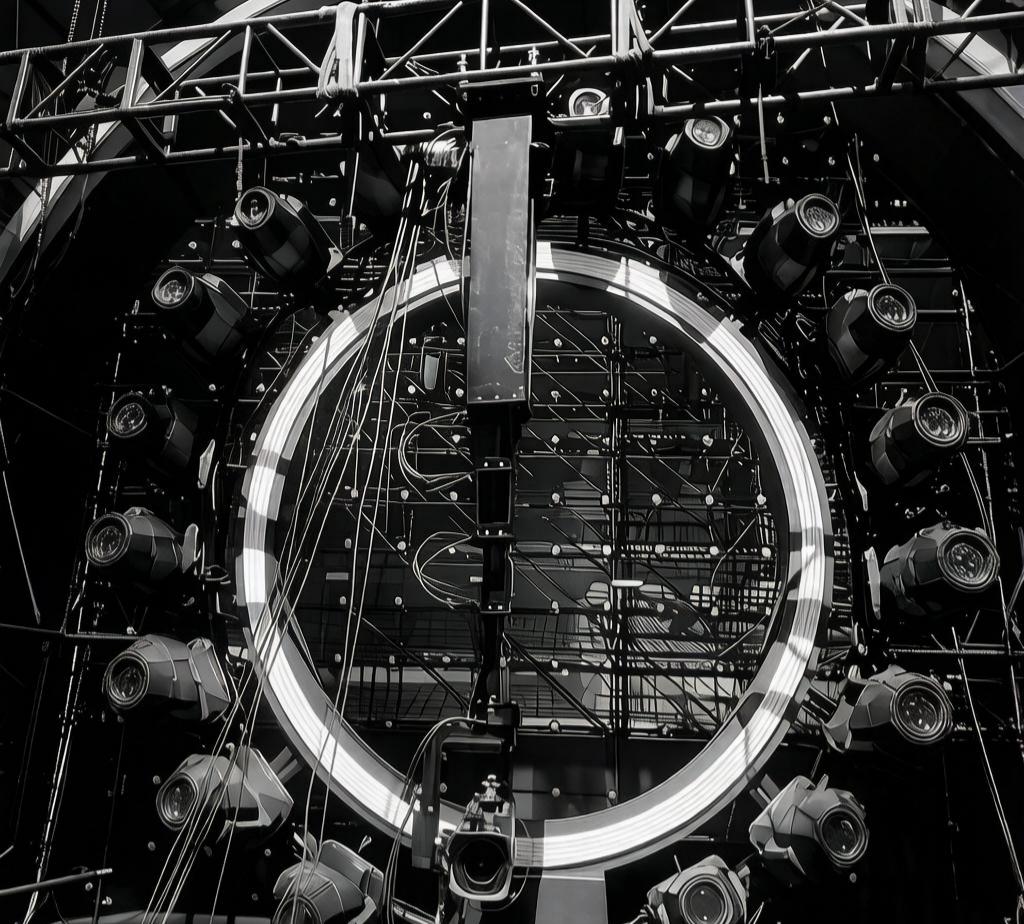

Supports floor or ceiling mounting. Safety solution includes lift limits, motor torque detection, and emergency stop. Built-in industrial control panel enables multi-camera control. Optional dual remote panels ensure uninterrupted operation.







Quiet & Stable Lifting, Smooth Height Adjustment



Aluminum 5-stage quiet lifting column. Lens height adjustable from 1.76m to 4.10m, with silent, smooth movement.







Tech Specs



Name Super Lift-4M
Remote Head      L-type 2-axis standard remote head;
U-type 2-axis heavy-duty remote head;
Third-party remote head
Pan Speed Pan, Tilt: 0.01~60°/s
Max Lifting Speed 1.18m/s
Head Payload L-type standard remote head: 25 kg;
U-type heavy-duty remote head: 30 kg
Lift Column Payload Standard version payload: 40 Kg
High-torque version payload: 65 Kg
Lifting Range 2.34m
Min Height of Lens 1.76m
Max Height of Lens 4.10m
Head Tilt Angle +45° ~ -45°
Column Mounting Square wide-air-tire dolly: steerable four wheels, steel screw jacks; (1.20 m × 1.20 m)
Square small-wheel dolly: swivel four wheels, steel screw jacks; (0.90 m × 0.80 m)
Ceiling mount plate: truss & locking hardware
Weights 64Kg
Operation Model Remote control panel
Power Input AC 220V/10A, 50/60 Hz
Power Out DC 15V/3A
Operating Power 0.87 KW
Lifting Encoder Accuracy  1,120,000 c/r
Head Encoder Accuracy 2,090,000 c/r
Lens Encoder Accuracy Lens motors: 32, 768 c/r
Compatible Lens Studio full/semi-servo Canon, Fujinon lenses;
with optional lens motor controls cinema cameras
