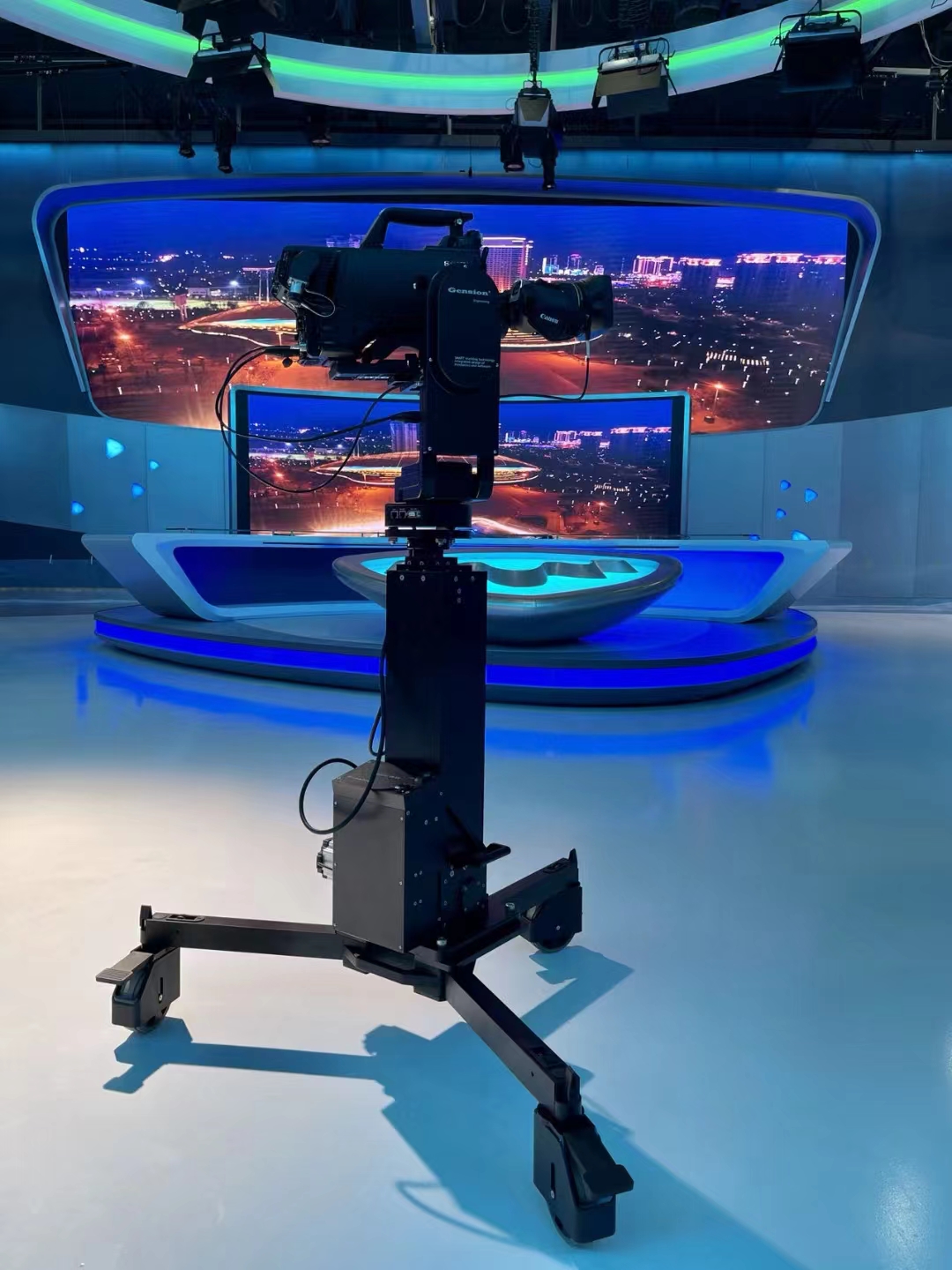

GIRAFFE Studio Elevating Robot
Giraffe is a studio shooting position integrating camera control, teleprompter and lifting column, perfect for sitting and standing broadcasts.
Multi-version Remote Head Option
2-axis L-type remote head for cameras under 25kg; heavy-duty 2-axis U-type for under 50kg, with professional 24 inches teleprompter for different loads.
Flexible Mounting
Lens height 1.35m-2.18m, aluminum silent lifting column, supports floor and roof installation for different heights.

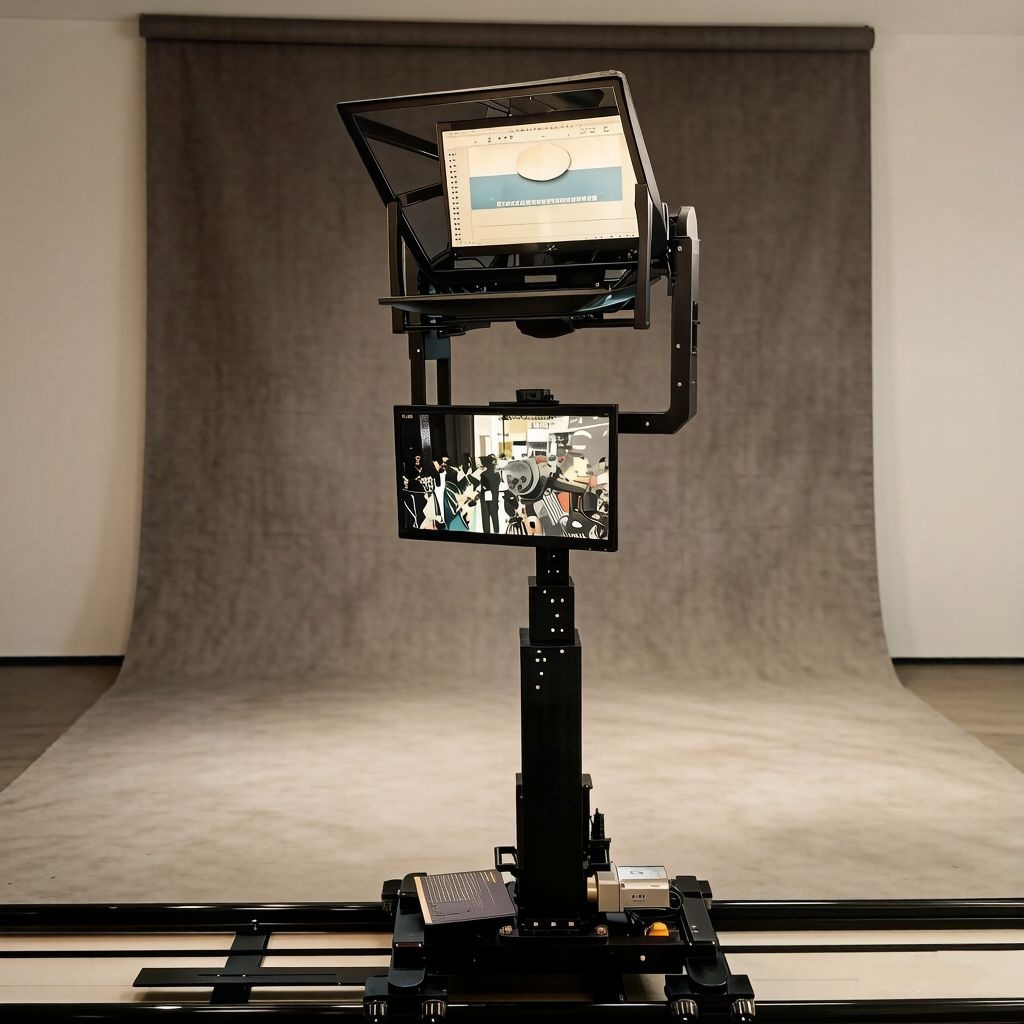

Work on Dolly and with AI
Fits track dolly for dynamic shooting; compatible with AI auto-tracking for automatic composition.
Dual Guarantees, Stable Communication
Main/backup dual remote panels for seamless takeover; serial + Ethernet dual communication ensures stable operation.
Tech Specs
| Model | Giraffe | |
| Remote Head Type | L-type 2-axis standard remote head; U-type 2-axis heavy-duty remote head |
|
| Remote Head Speed | Pan, Tilt: 0.01~60°/s | |
| Max Lift Speed | 1.18m/s | |
| Remote Head Payload | L-type standard remote head: 25 kg; U-type heavy-duty remote head: 30 kg |
|
| Column Payload | 40 Kg | |
| Column Lift Range | 0.83m | |
| Min Lens Height（upright mount） | 1.35m | |
| Max Lens Height（upright mount） | 2.18m | |
| Remote Head Tilt Range | upright mount: +45° ~ -45°; | |
| Mounting | Top mount: ceiling mount, truss mount Floor mount: tristar caster, track mount |
|
| Dolly Base Type | Fixed position: Tristar ground dolly, swivel single wheel, wheel diameter 200 mm; Setup on track: aluminum square motorized track dolly |
|
| Dolly Base Dimensions | Tristar ground dolly: circular footprint, 0.84 m diameter Track dolly: length 0.80 m; width 0.55 m |
|
| Net Weight | Tristar ground dolly version net weight: 45 kg Track-dolly version net weight: 56 kg |
|
| Operation Mode | Remote Control Panel | |
| Power Input | AC 220V/10A, 50/60 Hz | |
| Power Out | DC 15V/3A | |
| Operating Power | 0.87 KW | |
| Pan & Lift Sensor Resolution (VR version) | 1,120,000 c/r | |
| Remote Head Sensor Resolution (VR version) | 2,090,000 c/r | |
| Lens Sensor Resolution (VR version) | Lens Controllers：32,768 c/r | |
| Compatible Cameras | Studio full/semi-servo Canon, Fujinon lenses; with optional lens motor controls cinema cameras |
|
