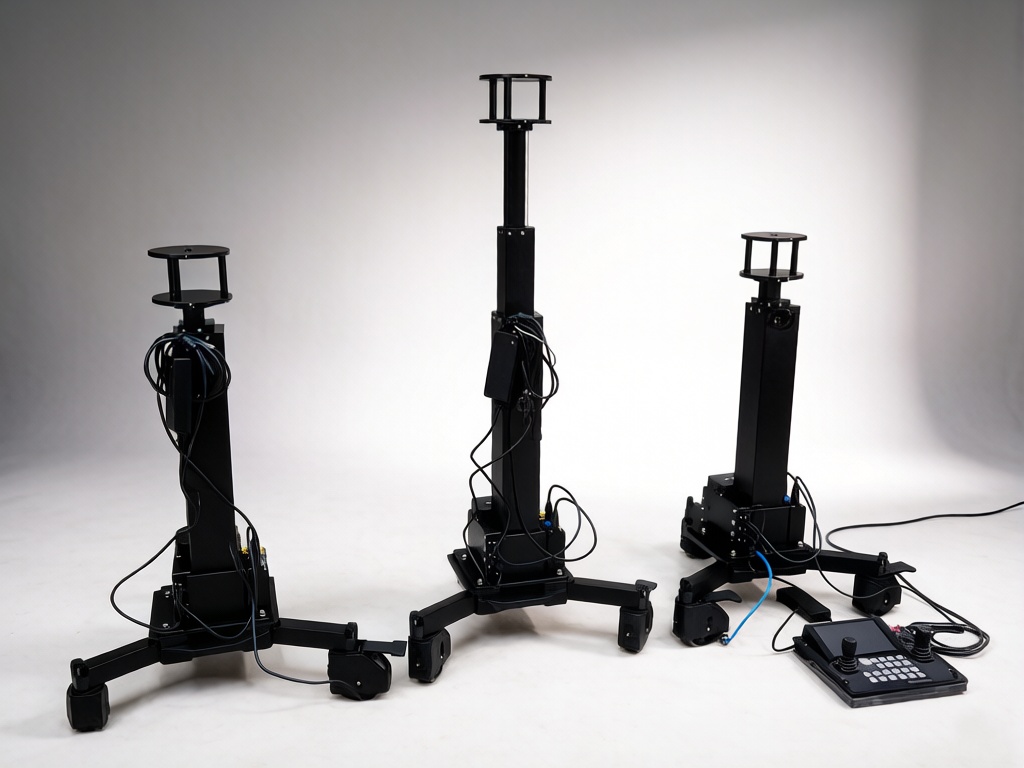

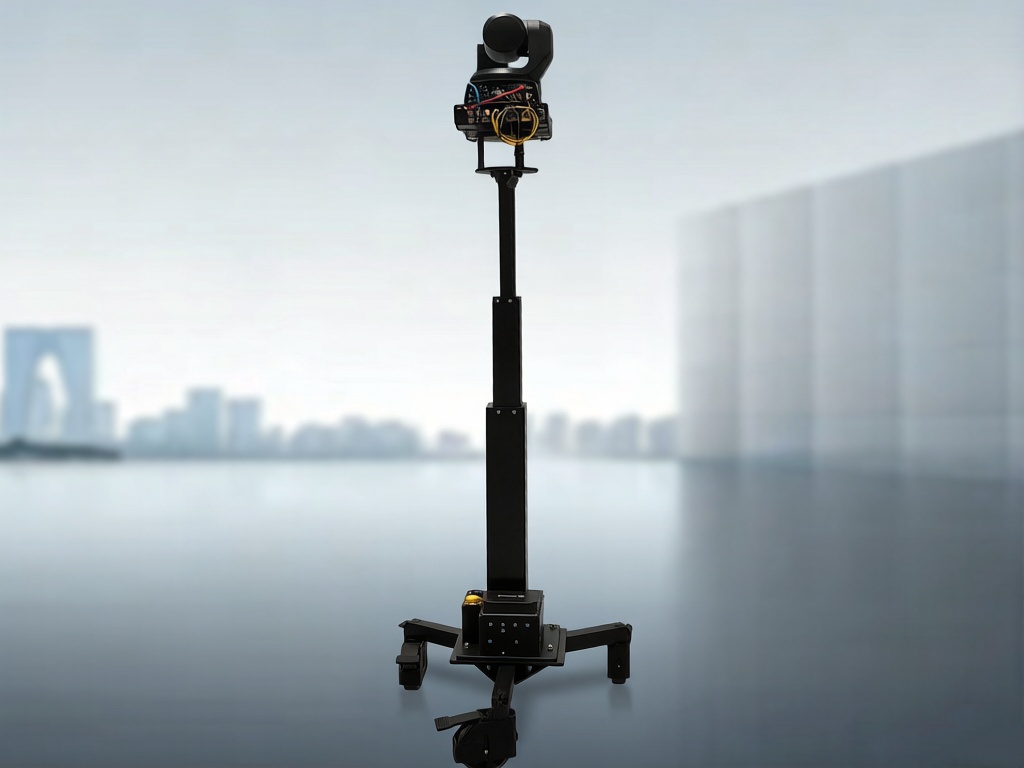

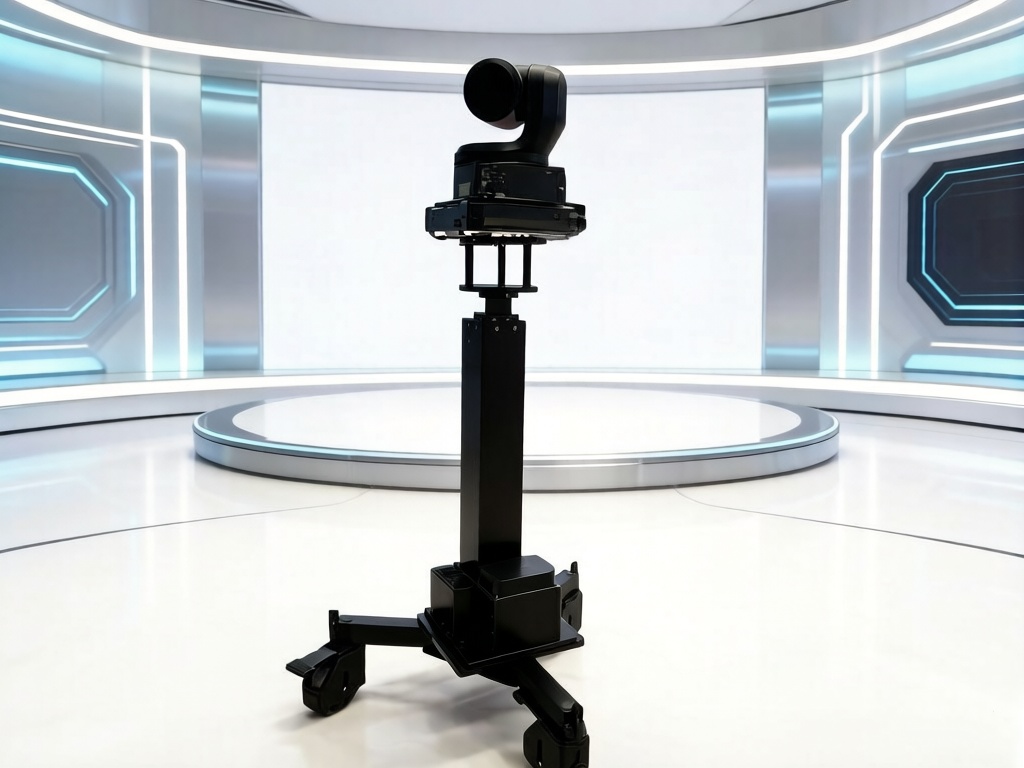

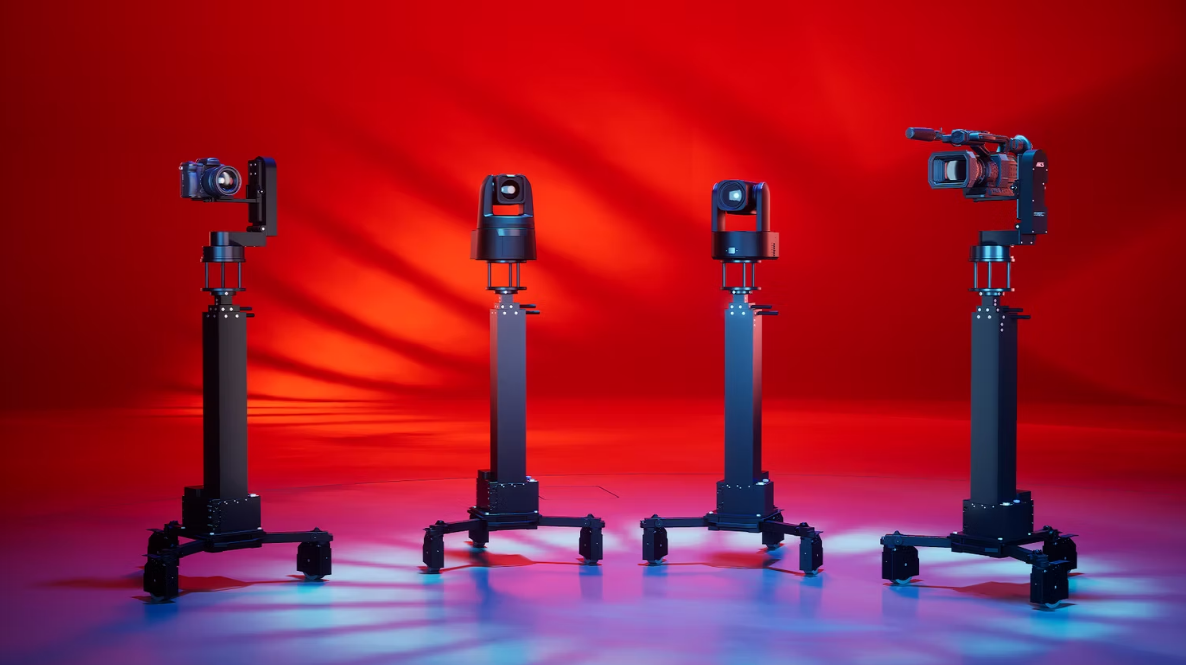

PIGEON Light Camera & PTZ Elevating Robot (2m)
Pigeon is a lifting column designed for PTZ cameras and Zooxer light remote head, integrating camera control for studio sitting/standing broadcasts.
PTZ Control & Load Capacity
Pigeon is a lifting column designed for PTZ cameras and Zooxer light remote head, integrating camera control for studio sitting/standing broadcasts.
Flexible Lifting & Easy Installation
Equipped with 1.20-1.92m (lens height) aluminum silent lifting column, supporting floor dolly and roof installation.
Intelligent Shooting & Precise Control

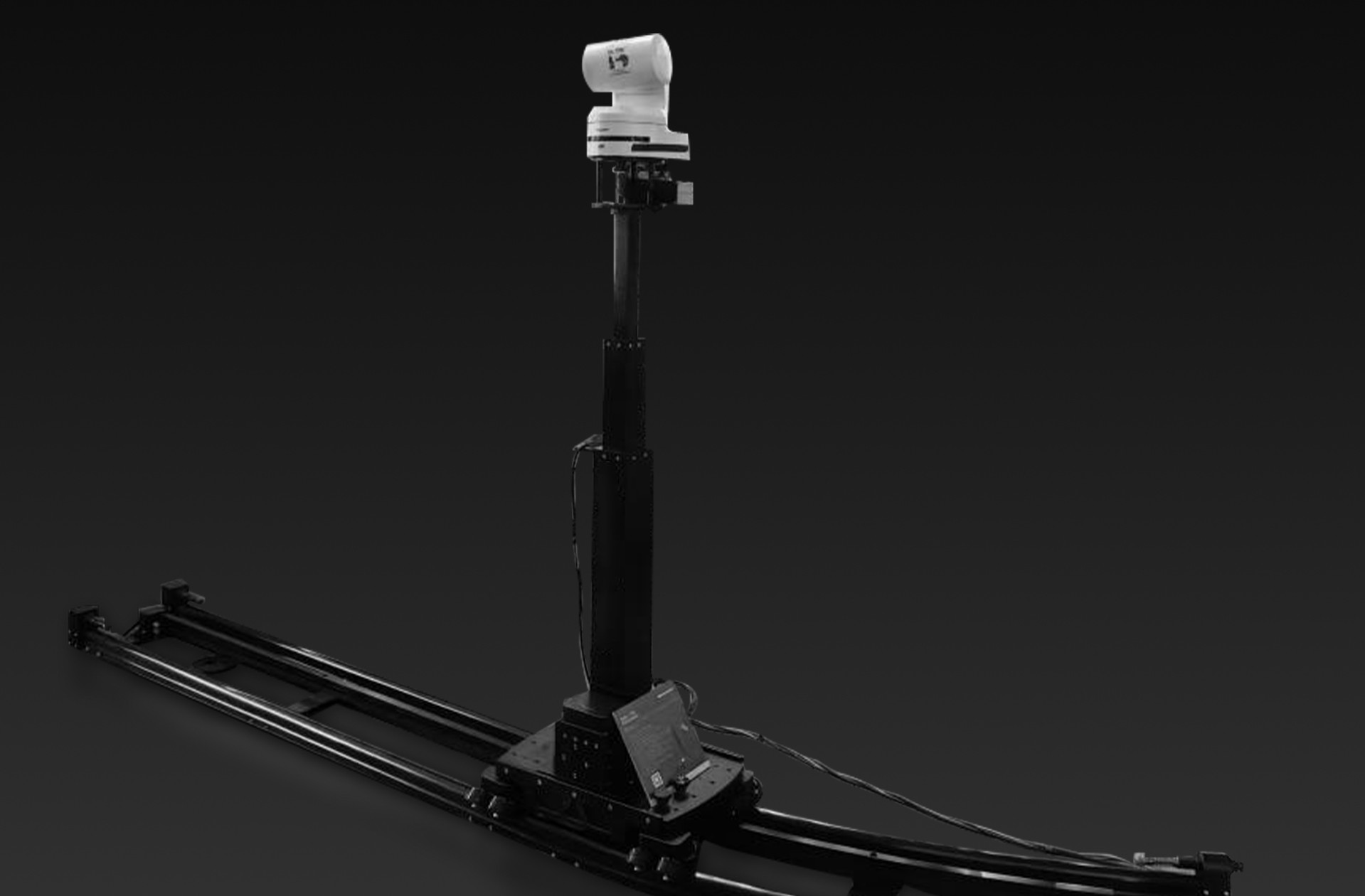

Supports track dolly moving, this is especially interesting when a PTZ is mounting on this column and allowing PTZ to move like a rail robot, from point-to-point and cycle shooting with high positioning accuracy.
Lens Compatibility
Fits 3-channel lens motors to drive various lenses (cinema, DSLR). This is a nice design when setup with Sony FR PTZ that head control plus lens motors would work together for a complete package.
Intelligent Control & Stable Communication
Single panel controls multi-camera shooting; main/backup remote panels, serial + Ethernet dual communication for stable operation.
Tech Specs
| Model | Pigeon | |

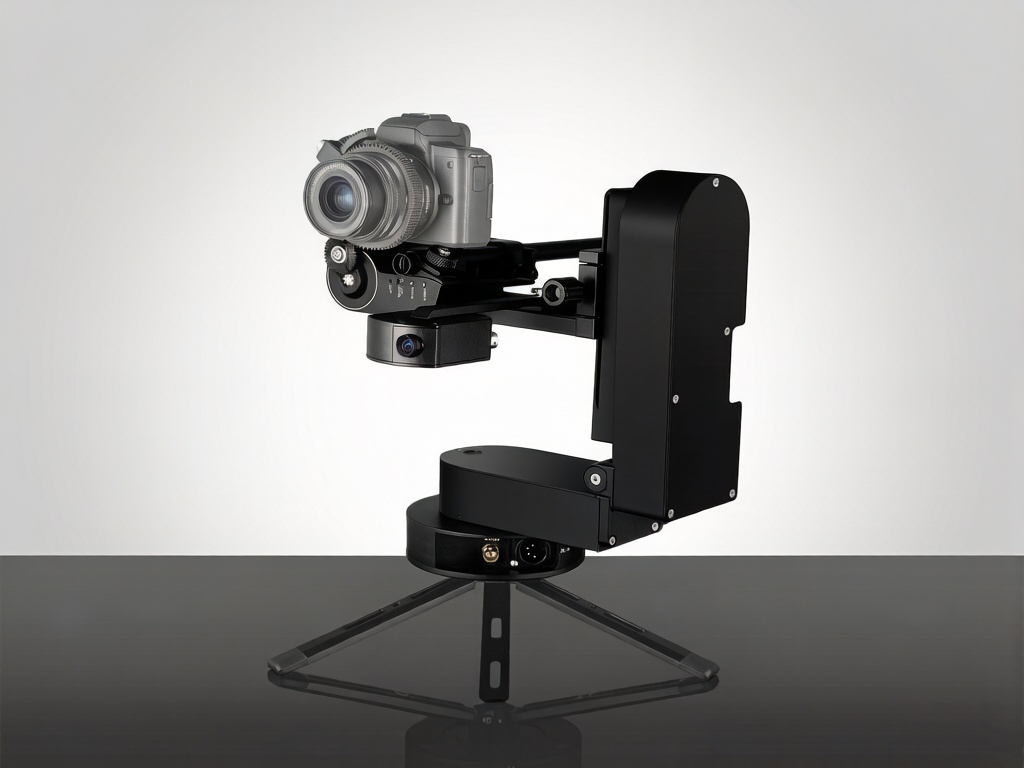

| Remote Head Type | Proprietary L-type 2-axis remote head; Sony FR series PTZ, Panasonic UE series PTZ, VISCA-protocol PTZ cameras |
|
| Max Lift Speed | 1.00m/s | |
| Column Payload | 35Kg | |
| Column Lift Range | 0.78m | |
| Min Height | 0.93m | |
| Max Height | 1.71m | |
| Mounting | Top mount: ceiling mount, truss mount Floor mount: tristar caster, track mount |
|
| Dolly Base Type | Fixed position: Tristar ground dolly, swivel single wheel, wheel diameter 200 mm; Setup on track: aluminum square motorized track dolly |
|
| Dolly Base Dimensions | Tristar ground dolly: circular footprint, 0.64 m diameter Track dolly: length 0.56 m; width 0.41 m |
|
| Net Weight | Tristar ground dolly version net weight: 18 kg Track-dolly version net weight: 27 kg |
|
| Operation Mode | Standard proprietary joystick remote control panel; VISCA-protocol remote control panel; |
|
| Power Input | AC 220V/10A, 50/60 Hz | |
| Power Out | DC 15V/3A | |
| Operating Power | 100W | |
| Pan & Lift Sensor Resolution (VR version) | 1,120,000 c/r | |
| Remote Head Sensor Resolution (VR version) | 260,000 c/r | |
| Lens Sensor Resolution (VR version) | Lens Controllers：32,768 c/r | |
| Compatible Cameras | Sony, Panasonic and other handheld DV cameras; with optional lens motor controls compact cinema and DSLR cameras; Sony FR series PTZ, Panasonic UE series PTZ, VISCA-protocol PTZ cameras |
|
