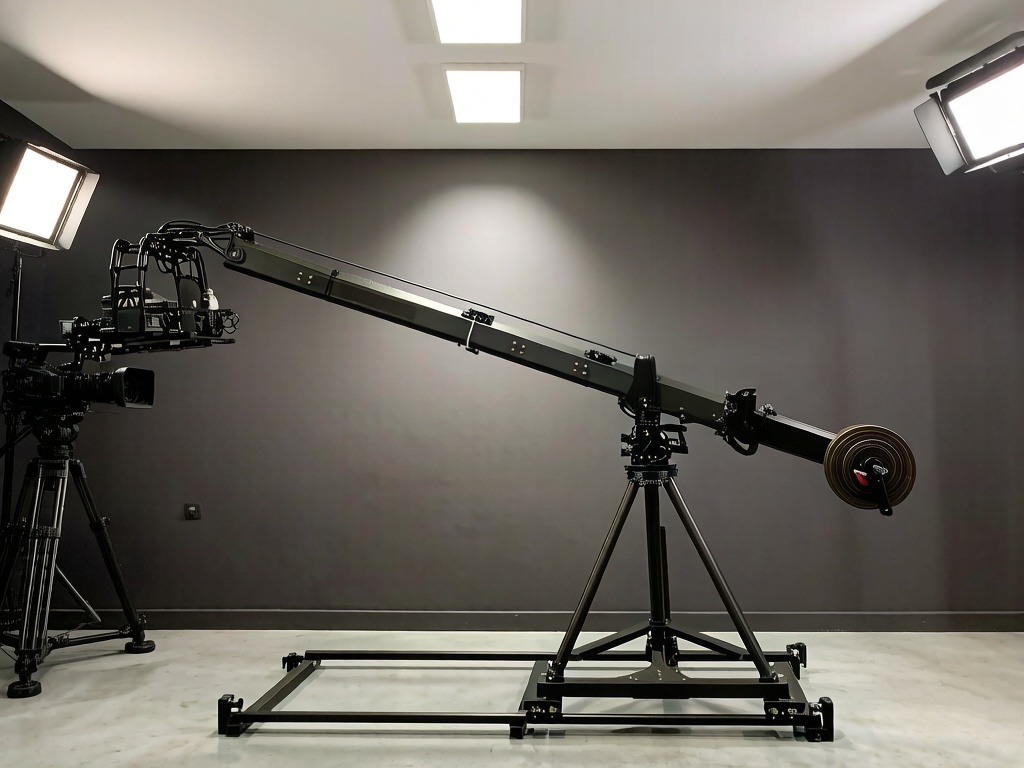

BULL VR Tracking Camera Crane (max 10m)
Looking for a jib arm for camera operators that works manually and outputs precise virtual tracking data, perfect for VR, AR, XR virtual production? Bull is the ideal choice.
Long Arm Reach & Rail Compatibility
Bull’s arm length adjusts flexibly from 3m to 10m, fitting small & medium studios, large stages and more.
Pair it with a rail system for more creative moving shots. Even on curved rails, it outputs stable, precise virtual tracking data, meeting the accuracy needs of quality virtual production.
Two Remote Head Options
Choose between L-type 2-axis remote control head and U-type 3-axis remote control head.
Easily switch for news interviews, entertainment shows, sports events, conference live streams, esports tournaments and more. It handles all shooting tasks with ease.
Robust Head Structure, Stable, Precise & Stylish, Zero-Gap Sensing, Simplified Wiring
Equipped with high-precision zero-gap electromagnetic sensing technology for fast response and accurate positioning.
All electronic components are built-in and sealed for safety and reliability. Only one cable connects the head and main control system, greatly simplifying wiring and reducing failure risks. Thoughtful industrial design makes it stable, precise and visually appealing.
Full Compatibility for Major Rendering Engines, Free-D Protocol
Comes with native Free-D protocol support, outputting high-precision tracking data.
With thousands of successful delivery cases worldwide, it connects seamlessly with mainstream 3D rendering engines. It’s a benchmark for high compatibility in VR/XR virtual production.
Tech Specs
|
Model |
BULL 3VR | BULL 5VR | BULL 6VR | BULL 8VR | BULL 10VR |
| Remote Head Type | L-type 2-axis tracking remote head; U-type 3-axis tracking remote head |
||||
| Remote Head Speed | Pan, Tilt, Roll: 0.01~60°/s | ||||
| Remote Head Payload | 2-axis remote head: 25 kg; 3-axis remote head: 20 kg |
||||
| Total Arm Length | 3.40m | 5.20m | 6.40m | 7.60m | 9.40m |
| Remote Head Reach | 2.55m | 3.60m | 4.65m | 5.70m | 7.20m |
| Operator End Reach | 0.85m | 1.60m | 1.75m | 1.90m | 2.20m |
| Max Lens Height | 2.85m | 3.80m | 4.70m | 5.55m | 6.80m |
| Arm Height at Horizontal Position | 1.54m | ||||
| Lens Height at Horizontal Arm Position | 1.21m | ||||
| Arm Tilt Angle | +55° ~ -55° | ||||
| Support Base Type | T-type dolly, 3×2 dual-wheel assembly, wheel diameter 200 mm; Optional 3× leveling screws |
||||
| Support Base Dimensions | Circular footprint, 1.44 m diameter | ||||
| Net Weight (excl. Counterweight) | 96Kg | 100Kg | 105Kg | 112Kg | 140Kg |
| Recommended Counterweight (approx.) | 60Kg | 80Kg | 90Kg | 100Kg | 130Kg |
| Operation Mode | Single-operator dual joystick | ||||
| Power Input | DC 15V/10A | ||||
| Power Out | DC 15V/10A | ||||
| Operating Power | 2-axis remote head: 50 W; 3-axis remote head: 75 W |
||||
| Arm Sensor Resolution | 2,700,000 c/r | ||||
| Remote Head Sensor Resolution | 2,700,000 c/r | ||||
| Lens Sensor Resolution | External encoder: 8,192 c/r; Lens motors: 32, 768 c/r | ||||
| Compatible Cameras | Studio full/semi-servo Canon, Fujinon lenses; with optional lens motor controls cinema, DV and DSLR cameras |
||||
