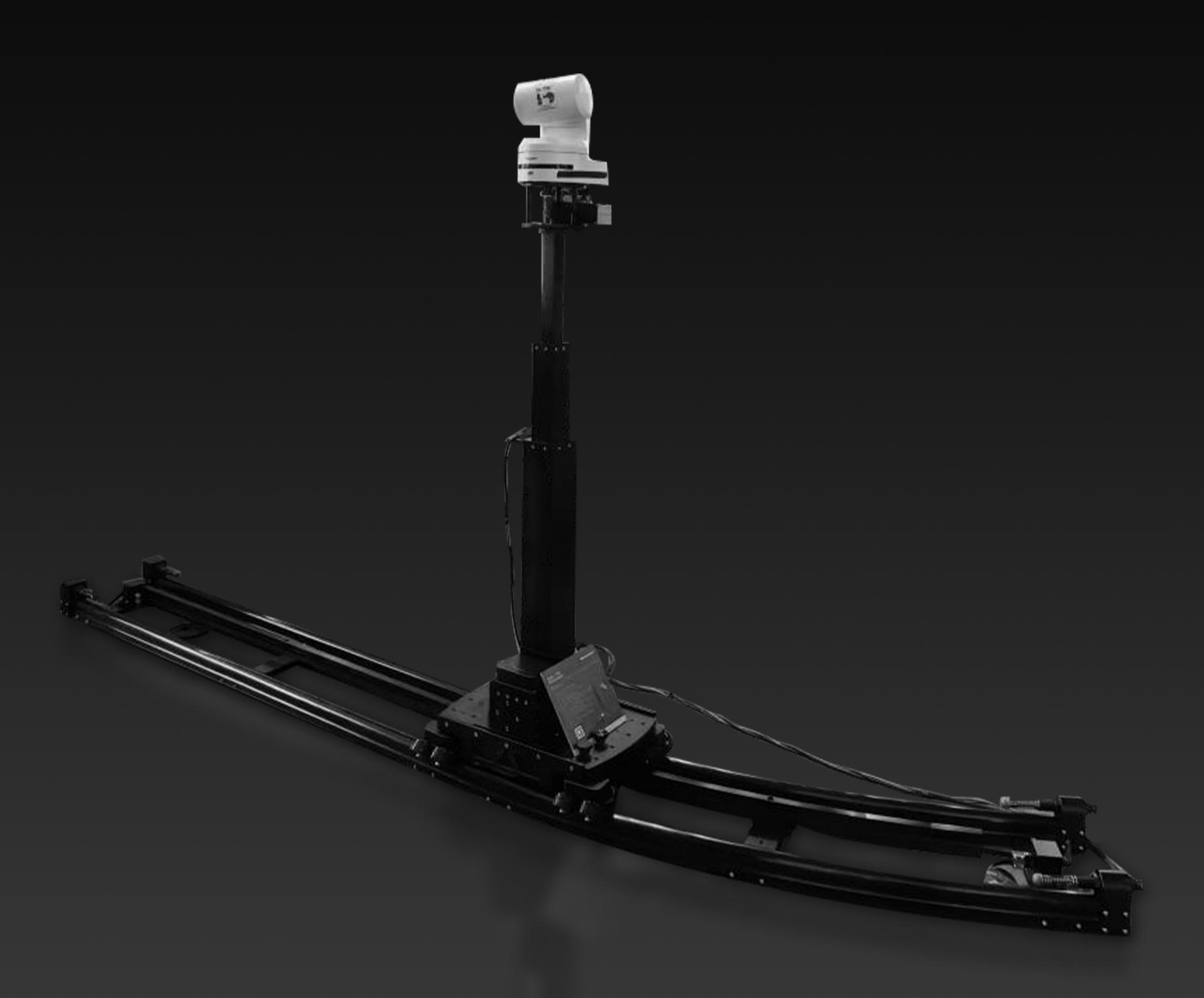

FLYFISH Light Camera & PTZ Rail Robot
If you use PTZ cameras, DJI gimbals, or small cameras under 5kg, Flyfish is a highly cost-effective robotic rail system.
Compared with Penguin, it’s lighter and uses narrower rails, but delivers equally great image quality.
Works with Most PTZ Cameras
It supports almost all common PTZ cameras, like Panasonic UE, Sony FR, Canon, and VISCA protocol PTZ cameras. It has built-in control protocols for these brands and can work with many third-party heads directly.

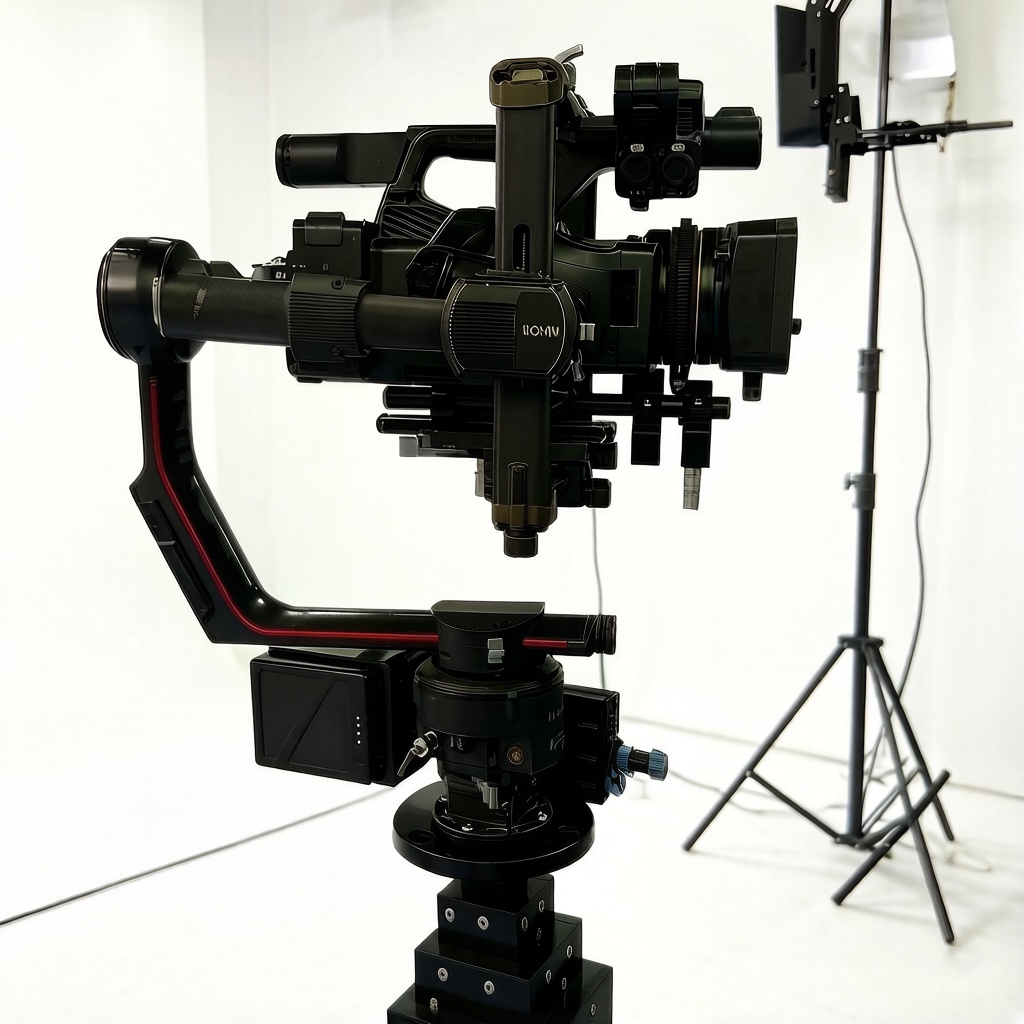

3-Axis Gyro Stabilizer Support
Compatible with 3-axis gyro-stabilized gimbals. It keeps footage from handheld DV, DSLR, and small cinema cameras smooth and stable while moving on rails.

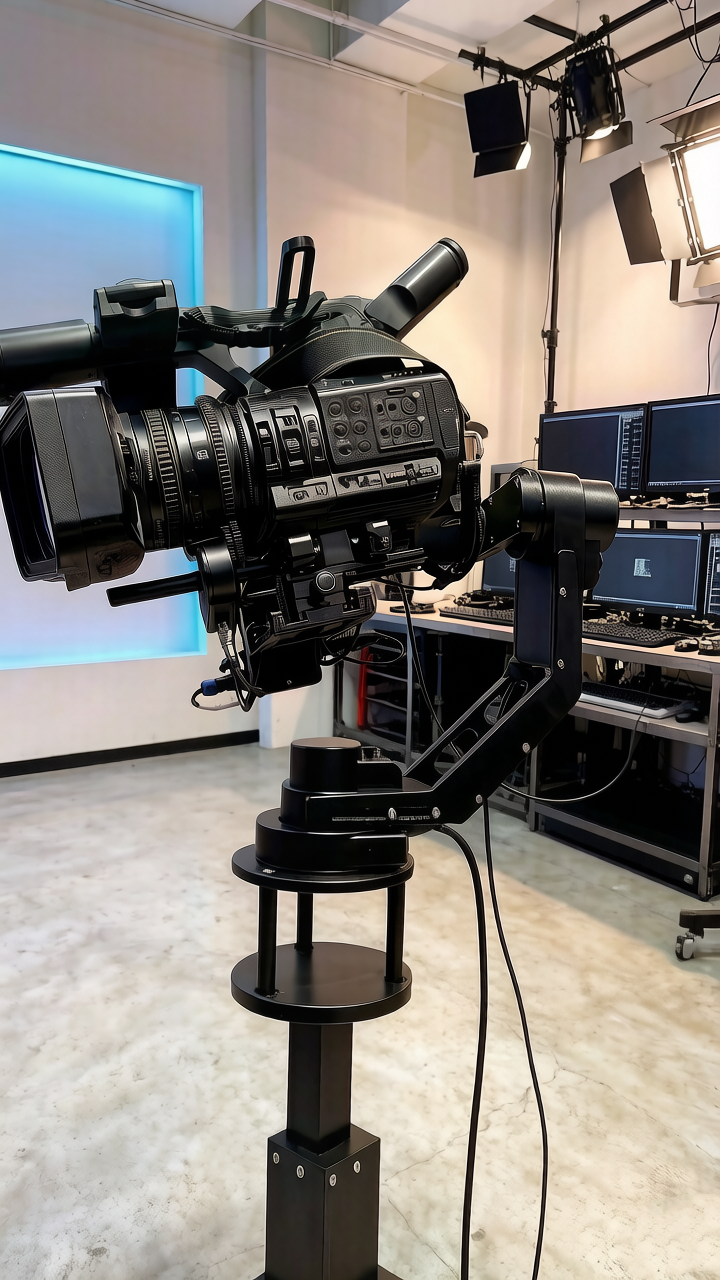

DJI Gimbal Integration
You can mount DJI gimbals directly on it. No more handheld shooting — get immersive, cinematic rail movement for your gimbal footage.
Flexible Installation

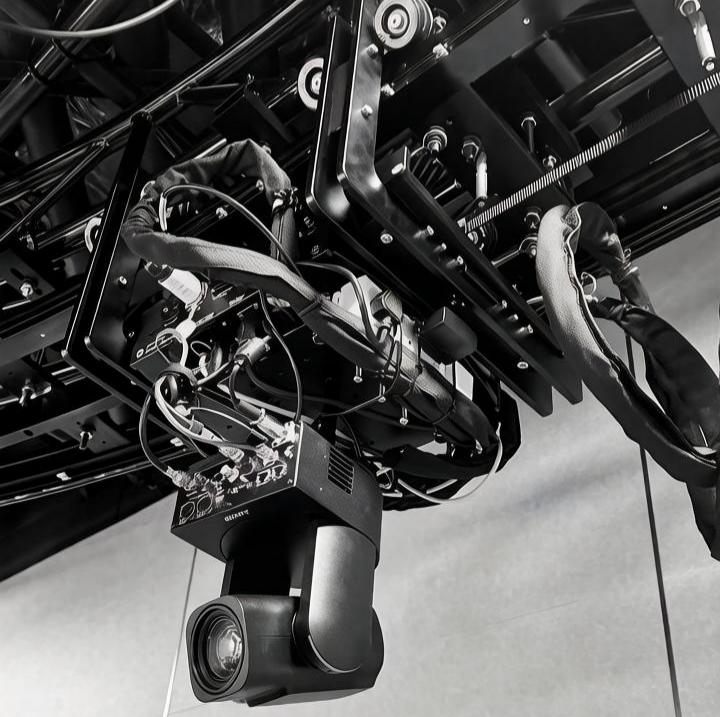

Rails can be installed on the floor or ceiling. It fits both new studio design and later equipment upgrades.
Complete Safety System
Flyfish has a full safety system: high-precision proximity radar at rail ends, hydraulic dampers, multi-direction follow radar, motor torque protection, and software position limits.
Tech Specs
| Name | Flyfish-VR | Flyfish-S VR |
| Remote Head | L Type Tracking Head, 2 Axis; Sony PTZ Series Tracking Head; Panasonic PTZ Series Tracking Head |
L Type Tracking Head, 2 Axis; Sony PTZ Series Tracking Head; Panasonic PTZ Series Tracking Head |
| Pan Speed | 0.1~60°/s | |
| Head Payload | 5Kg | |
| Head Tilt Angle | +60° ~ -60° | |
| Max Track Speed | 1.80m/s | 3.50m/s |
| Lifting Range | 0.72m | |
| Max Lifting Speed | 1.00m/s | |
| Lens Ht（Upward） | 1.20m~1.92m | |
| Lens Ht（Downward） | 1.25m~1.97m | |
| Dolly Type | Square Shaped Dolly; Including Tracking and Positioning System |
Square Shaped Dolly; Including Tracking and Positioning System, High-power Motor Module |
| Dolly Size | Length: 0.56m，Width: 0.41m | |
| Total Weights | 29.5Kg (Head: 2.5Kg; Lifting Column: 13Kg; Track Dolly:14Kg) |
|
| Track Size | Track Width:280mm; Track Diameter:42.2mm; Track Weight: ≈15Kg | |

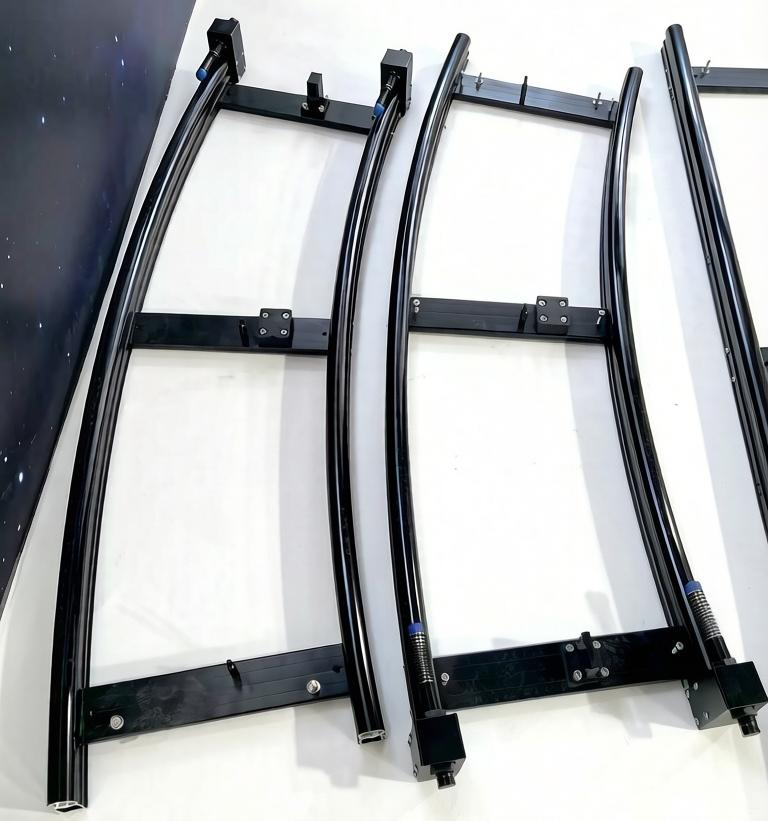

| Track Type | Straight Track: 2.00m Per Segment Curved Track: Customized, Track Diameter: ≥6.00m; Radian: ≤22.5°(Arc Length＜2.00m) |
|
| Operation Model | Remote Control Panel; Programmable Automatic Control | |
| Power In | AC 220V/10A, 50/60 Hz | |
| Power Out | DC 15V/3A | |
| Operating Power | 270W | 470W |
| Lifting Encoder Accuracy | 1,120,000 c/r | 1,120,000 c/r |
| Head Encoder Accuracy | 260,000 c/r | 260,000 c/r |
| Lens Encoder Accuracy | Lens Controllers：32,768 c/r | Lens Controllers：32,768 c/r |
| Compatible Lens | Sony, Panasonic DV cameras; Direct Control for DV Cameras; or Cine, DV, DSLR Lens Driven by Lens Controllers | |
