EAGLE Digital Professional Camera Crane (max 12m)

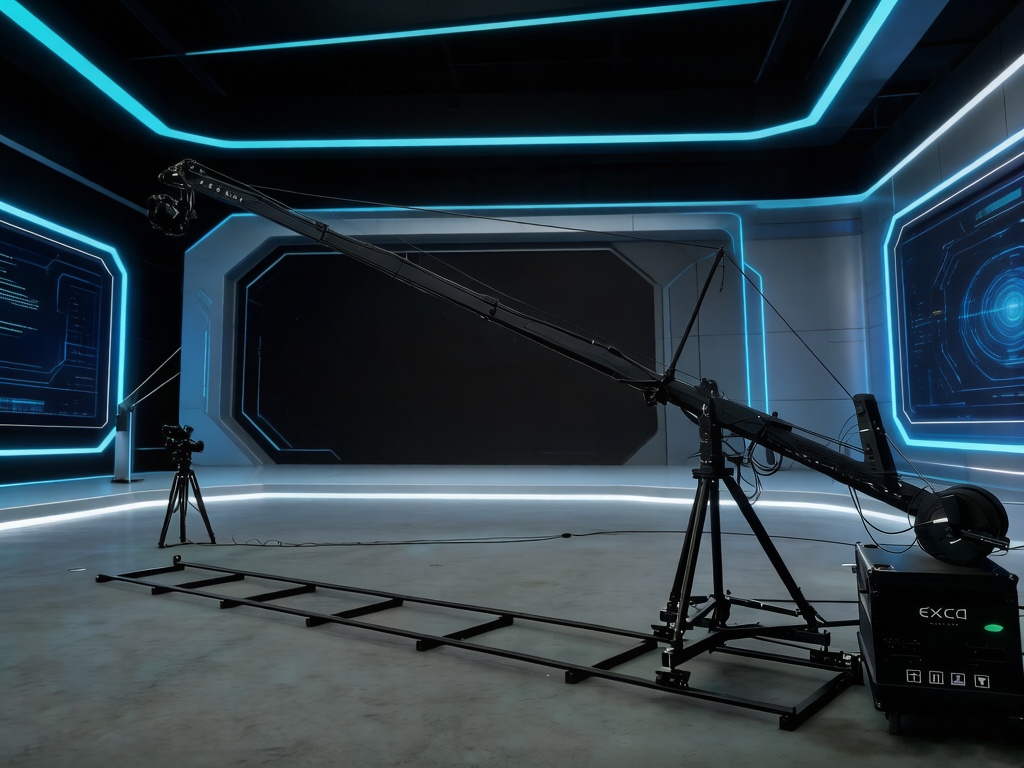

Arm Length & Move on Tracks


Arm length adjusts from 3m to 12m. You can also install rails, making crane move easily and quickly.

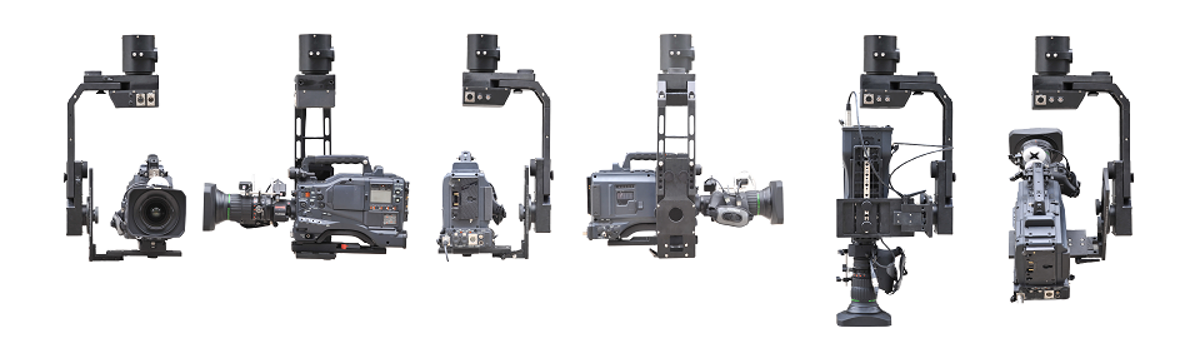

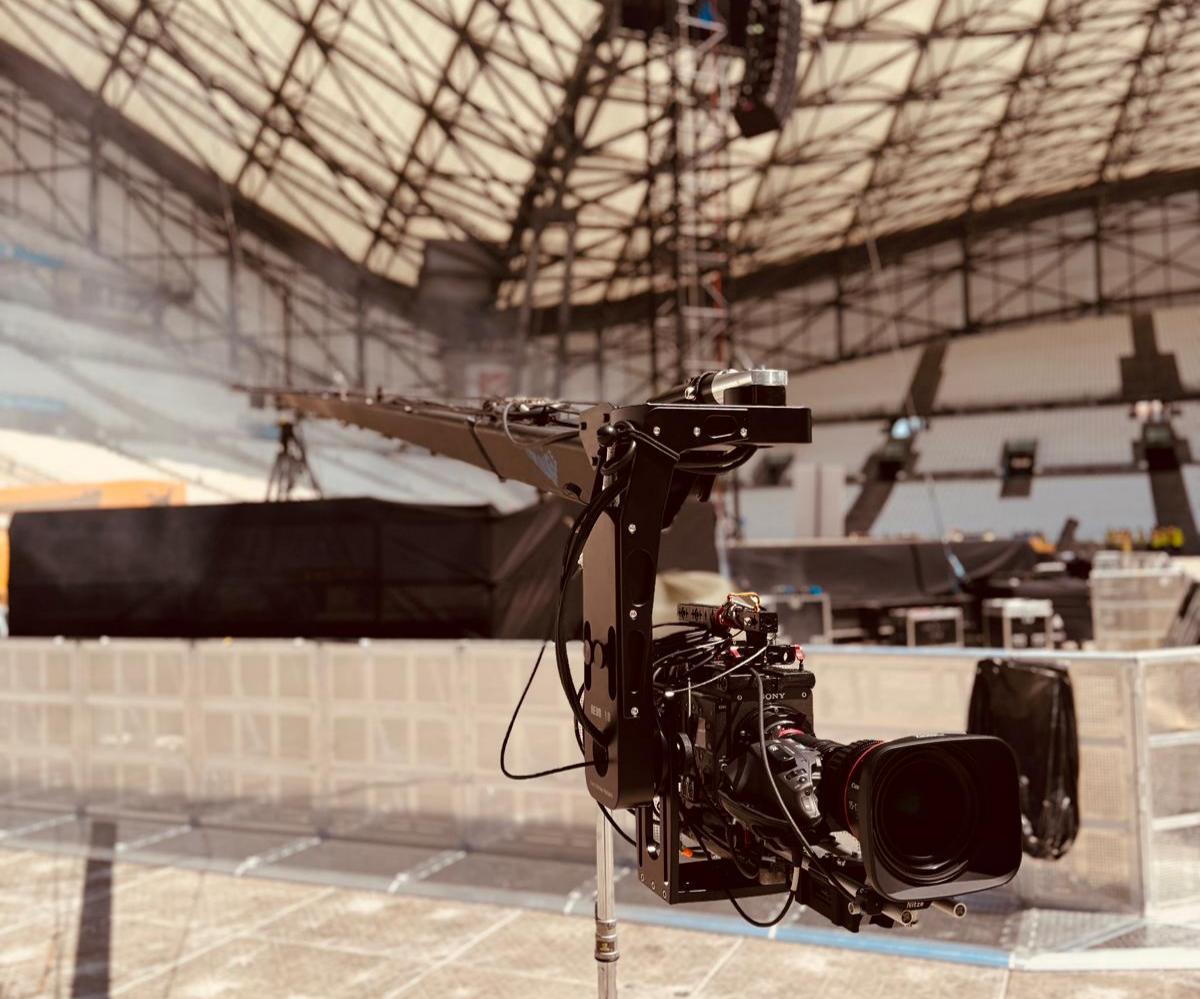

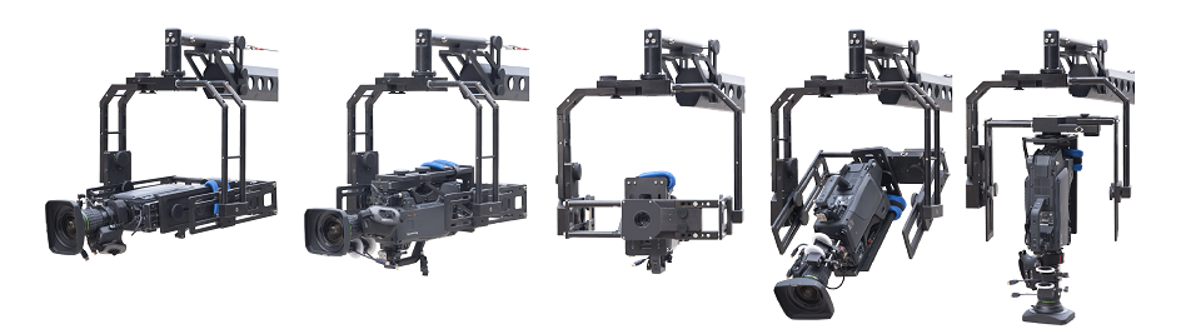

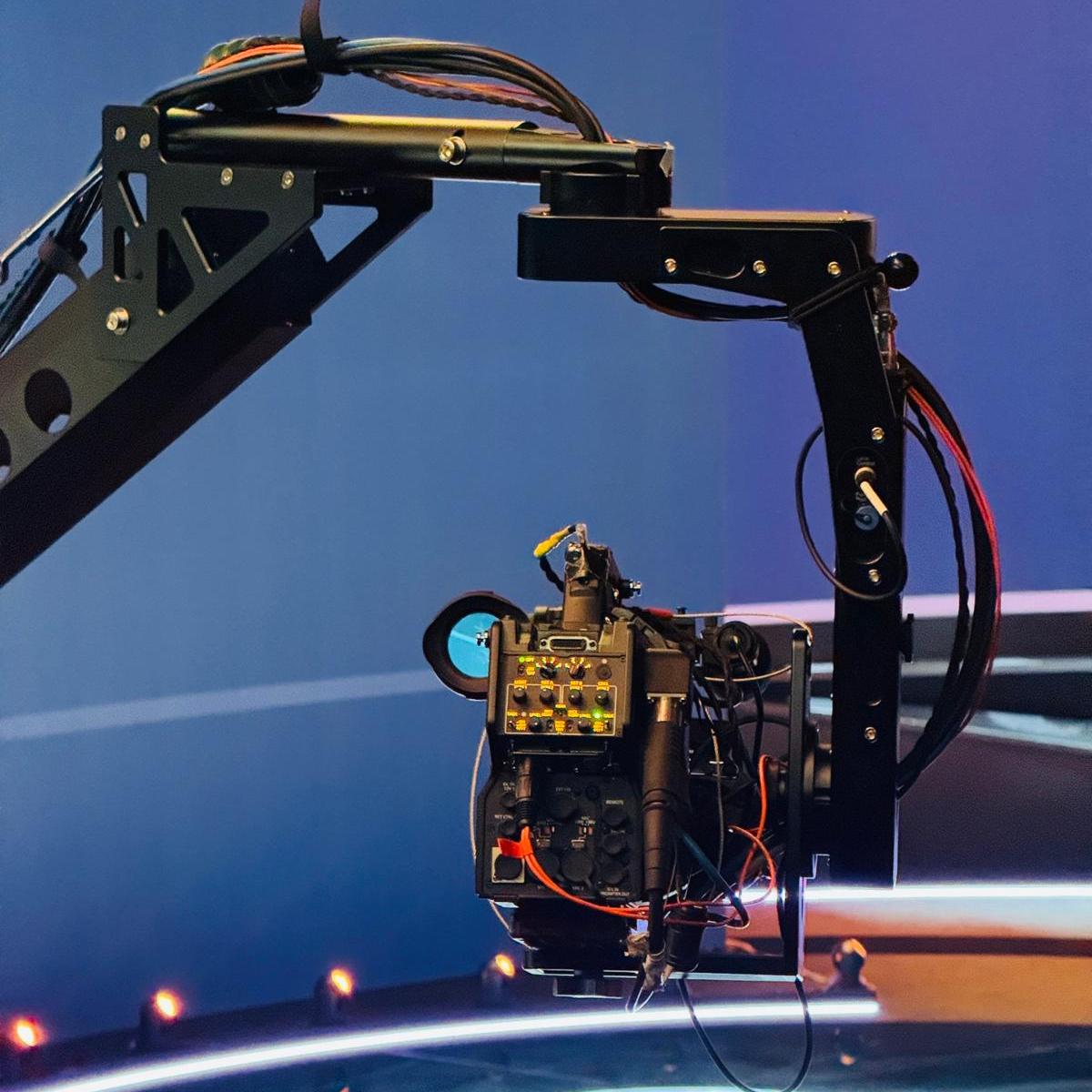

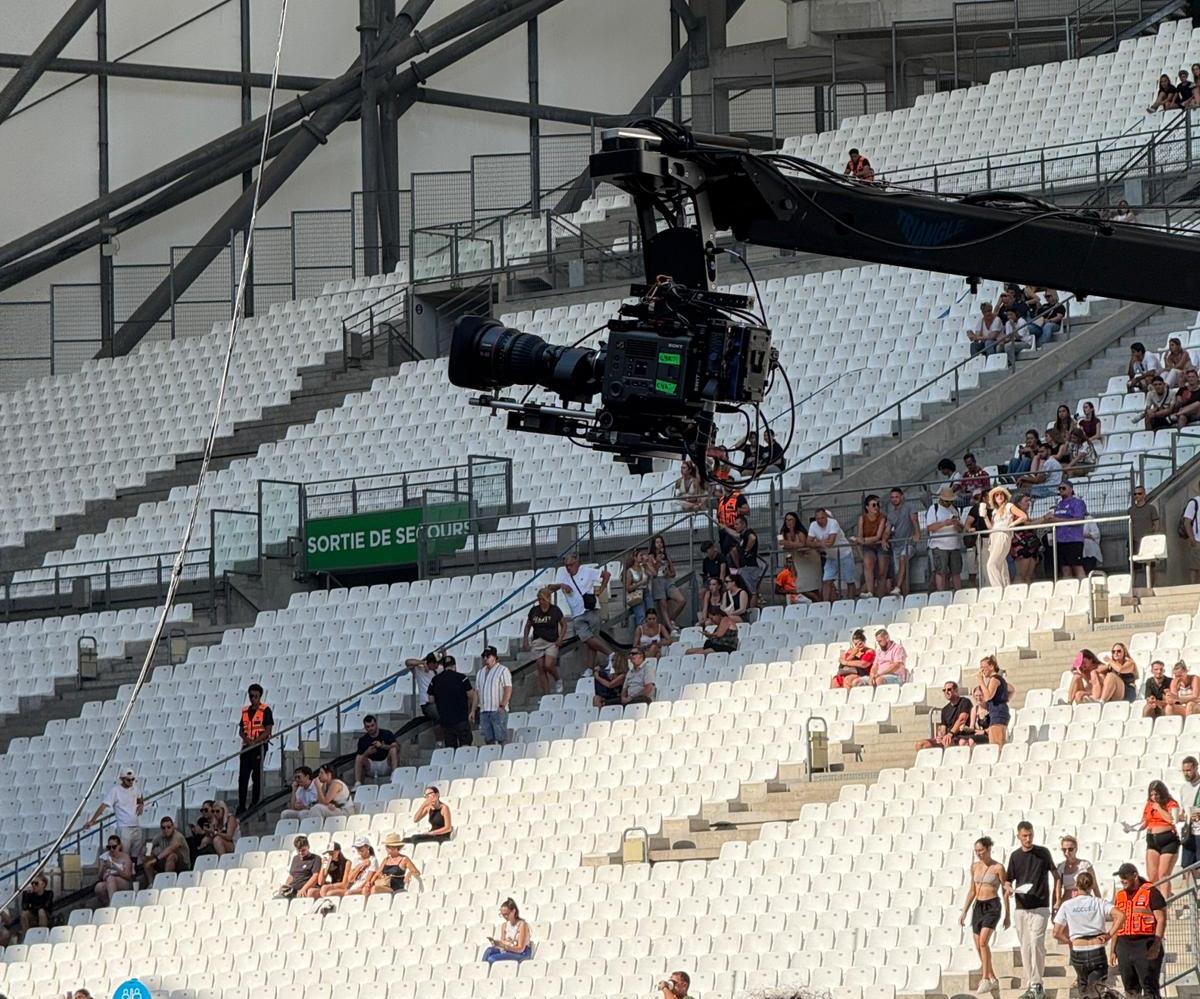

2-Axis or 3-Axis Remote Head



Comes with L-shaped 2-axis remote head, or optional U-shaped 3-axis remote head. It works well for both studio production and stage shooting.













Work with All Lenses



Only one lens control port on head. Use different cables to control all camera lenses—Canon, Fujinon, film cameras, and DV handheld cameras.









System Can Mount to Your Crane Too



Remote head and electronic control system are completely independent of crane’s mechanical structure. Even if you use third-party cranes like Jimmy Jib, this pan-tilt system can be directly mounted and replaced, giving old equipment a new life with ultra-smooth operation.









Operation Handles



Two carefully designed full-CNC operation handles. All components are well-protected, so they won’t break even if dropped. Finger feel is just right—no fatigue even after long hours of work. Left and right handles have independent metal plugs of different specs to avoid damage from wrong insertion.







Fault Self-check Function



System has link self-check function. If certain functions fail, self-check can quickly find faulty link, making it easy to troubleshoot and recover in time.






Tech Specs



Model Eagle-3M Eagle-5M Eagle-6M Eagle-8M Eagle-10M Eagle-12M
Remote Head Type L-type 2-axis remote head;
U-type 3-axis remote head
Remote Head Speed Pan, Tilt, Roll: 0.01~60°/s
Remote Head Payload 2-axis remote head: 25 kg;
3-axis remote head: 20 kg		 2-axis remote head: 20 kg;
3-axis remote head: 15 kg
Total Arm Length 3.30m 5.10m 6.30m 7.50m 9.90m 11.70m
Remote Head Reach 2.30m 3.50m 4.70m 5.90m 7.90m 9.50m
Operator End Reach 1.00m 1.60m 1.60m 1.60m 2.00m 2.20m
Arm Height at Horizontal Position 1.54m 1.54m 1.54m 1.54m 1.54m 1.62m
Lens Height at Horizontal Arm Position 1.21m 1.21m 1.21m 1.21m 1.21m 1.29m
Max Lens Height 2.80m 3.80m 4.75m 5.70m 7.00m 7.80m
Arm Tilt Range +55° ~ -55° +55° ~ -55° +55° ~ -55° +55° ~ -55° +50° ~ -55° +45° ~ -55°
Support Base Type T-type dolly, 3×2 dual-wheel assembly, wheel diameter 200 mm
Support Base Dimensions Circular footprint, 1.44 m diameter
Net Weight (excl. Counterweight) 80Kg 88Kg 95Kg 100Kg 115Kg 145Kg
Recommended Counterweight (approx.) 50Kg 60Kg 90Kg 130Kg 160Kg 180Kg
Operation Mode Single-operator dual joystick
Power Input DC 15V/10A
Power Out DC 15V/10A
Operating Power 2-axis remote head: 50 W;
3-axis remote head: 75 W
Compatible Cameras Studio full/semi-servo Canon, Fujinon lenses;
with optional lens motor controls cinema, DV and DSLR cameras
