G40H Studio Tripod (40kg, 150mm)

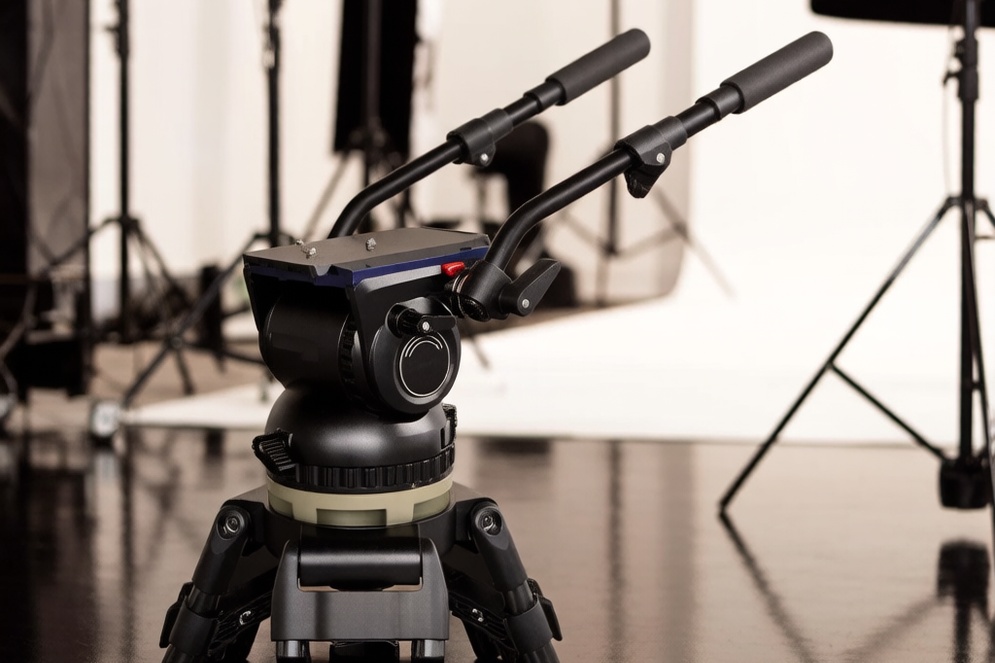

High-capacity tracking head system
This new product has HEAVY payload switch to suit much bigger cameras till up to 40kg. It also can meet medium size cameras by setting the switch off and narrow the counterbalance power to a max 25kg.
Precision-machined durability
These spare parts are fully CNC processed so that they work in better function and longer product life.The head can fit with any standard 150mm bowl, and the bottom seat is treated with special hard painting technology for not-to-scratch effect.
Tech Specs
| Name | G40H |
| Bowl Size | 150mm |
| Head Weight | 7.0kg |
| Head Payload | 1.5~40kg |
| Head Height | 230mm |
| Drag | 10 Settings |
| Counterbalance | 7+1 Steps |
| Tilt Angle | -50°~+80° |
| Work Temperature | -40°~+60° |
| level Bubble | Luminous |
| Machining | CNC |
| Tripod Material | Carbon Fiber |
| Tripod Bowl Size | 150mm |
| Tripod Payload | 80kg |
| Tripod Weights | 5.70kg |
| Ground/Mid spreader | Ground/Mid spreader |
| Min Height | 560mm |
| Max Height | 1640mm |
| Transport Length | 780mm |
