BEE Lens Motors
Lens motors are for remote/automatic control of long lenses from film cameras, studio cameras, DV, DSLRs, etc. They work with tripods, cranes, remote heads, camera robots and virtual tracking systems, supporting up to 3 channels to precisely control zoom, focus and iris.

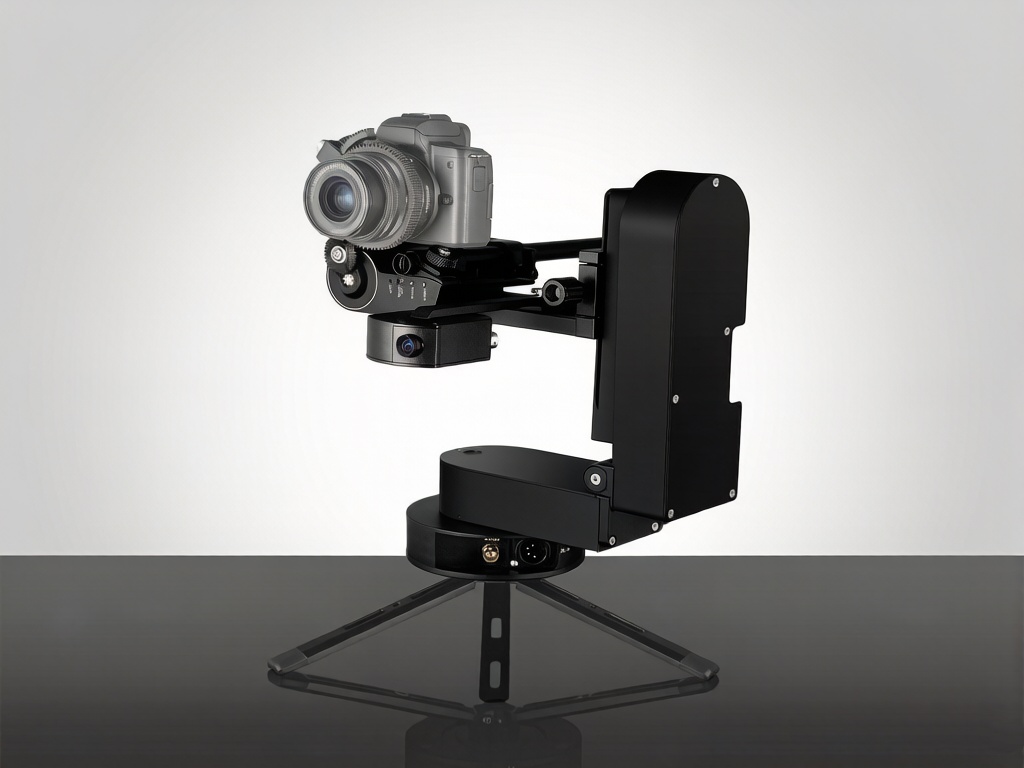

When installed on remote heads, they enable full remote control for robotic camera operations. With high torque, silent running and low latency, they provide high-precision data feedback (up to 32,768 c/r) and virtual tracking data for VR production.
Tech Specs
| Model | BEE |
| Controller Type | Remote control panel; joystick |
| Motor Weight | 156g |
| Motor Dimensions | 96*55*28mm |
| Max Torque | 0.8Nm |
| Gear Module | Standard: 0.8 module; Optional: 0.4, 0.5, 0.6 module |
| Operating Voltage | 9V-24V |
| Mounting Hole Diameter | 15mm |
| Operating Temperature | +50° ~ -20° |
| Lens Sensor Resolution (VR version) | 32,768 c/r |
| Compatible Cameras | 1. Small/medium-diameter cinema camera lenses 2. Studio camera lenses 3. DSLR/mirrorless camera lenses 4. DV camera lenses with ample barrel space (excluding cameras without external gear rings on the lens barrel) |
