G40VR Heavy Payload Tracking Tripod (40kg, 150mm)

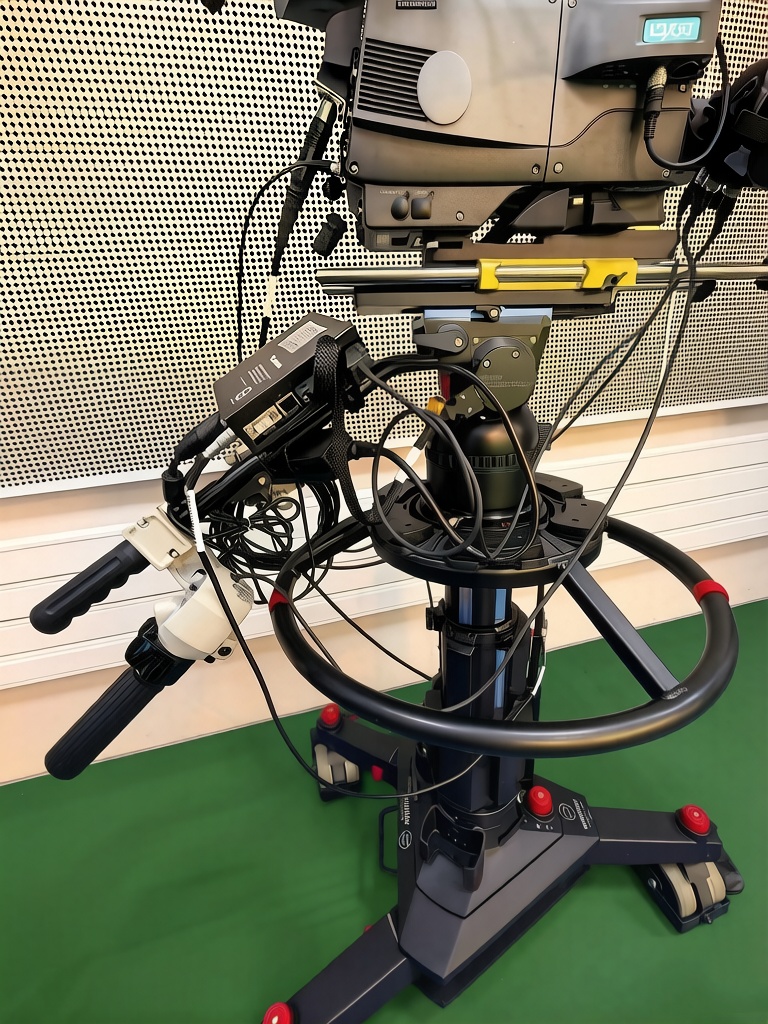

Tracking head on lifting pedestal



For professional studio camera lenses, the fluid head can adopt multiple lens data. For example, directly read digital lens data through a cable, or collect zoom and focus data through external lens sensors, or drive the lens by lens motors and simultaneously obtain focal length tracking data.









High-capacity tracking head system



This new product has HEAVY payload switch to suit much bigger cameras till up to 40kg. It also can meet medium size cameras by setting the switch off and narrow the counterbalance power to a max 25kg.









Tech Specs



Name G40 VR
Bowl Size 150mm
Head Weight 7.0kg
Head Payload 1.5~40kg
Head Height 230mm
Drag 10 Settings
Counterbalance 7+1 Steps
Tilt Angle -50°~+80°
Work Temperature -40°~+60°
Level Bubble Luminous
Machining CNC
Head Encoder Accuracy 520,000 c/r
Lens Encoder Accuracy Outer Encoder:8,192 c/r; Lens Controllers:32,768 c/r
Tripod Material Carbon Fiber
Tripod Bowl Size 150mm
Tripod Payload 80kg
Tripod Weights 5.70kg
Ground/Mid spreader Ground spreader
Min Height 560mm
Max Height 1640mm
Transport Length 780mm
