180VR Professional Tracking Tripod (20kg, 100mm)
Virtual Tripod System
With the increasing demand on 3D VR pictures mixed with real world studios or big entertainment shows, Zooxer offers a perfect solution in the AR-VR shooting scenario. ZX-180VR is a modular professional tripod system with very logical design. It’s quick to set up, easy to move and very simply for original calibration with 3D picture engines via industry standard communication protocol.
Software box with screen all info displayed
The box is designed with necessary wire ports for BB signals, DC power-in, data port, lens encoders to 3D picture engine. Therefore, always keep the box workable and find out data transmission mistakes on the screen. These data would be transformed into Free-D protocol, displaying on the tiny display with current data positions, signal status, spin angles etc.

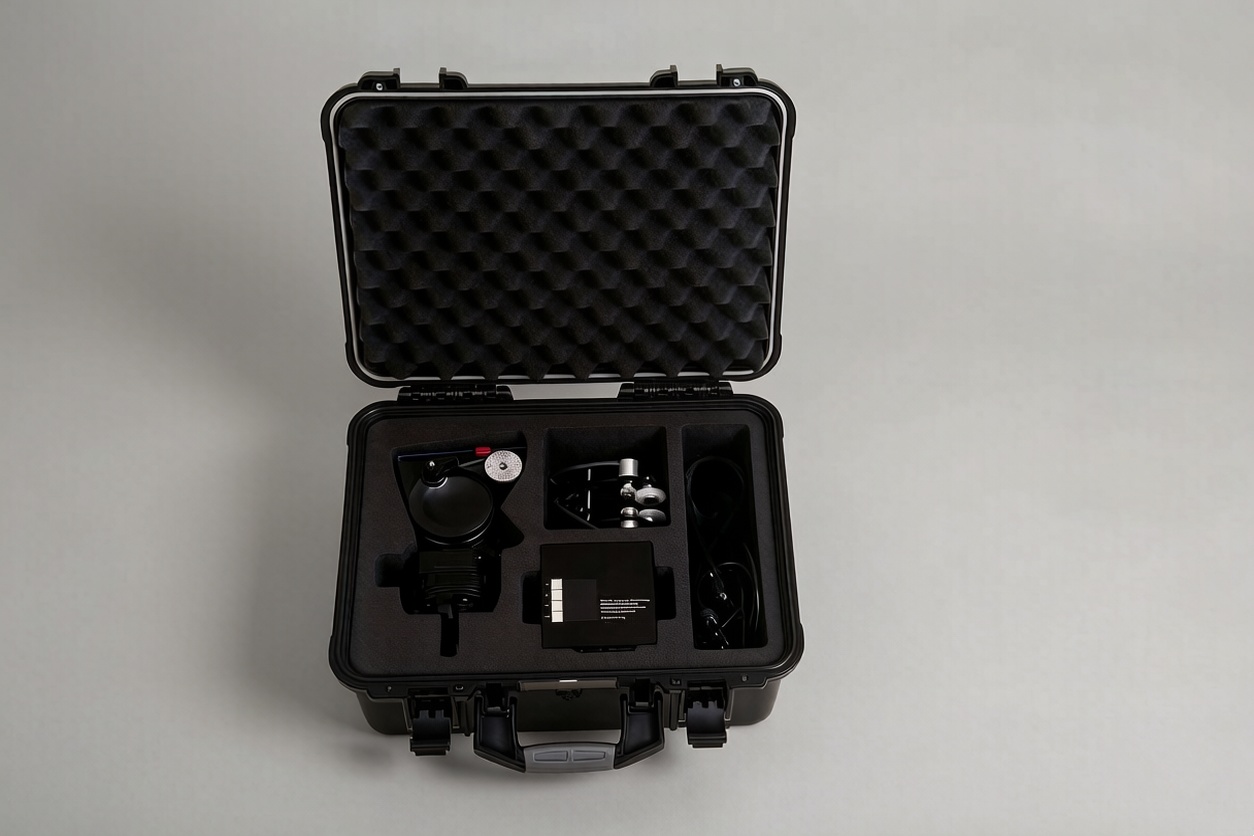

Protection in packing

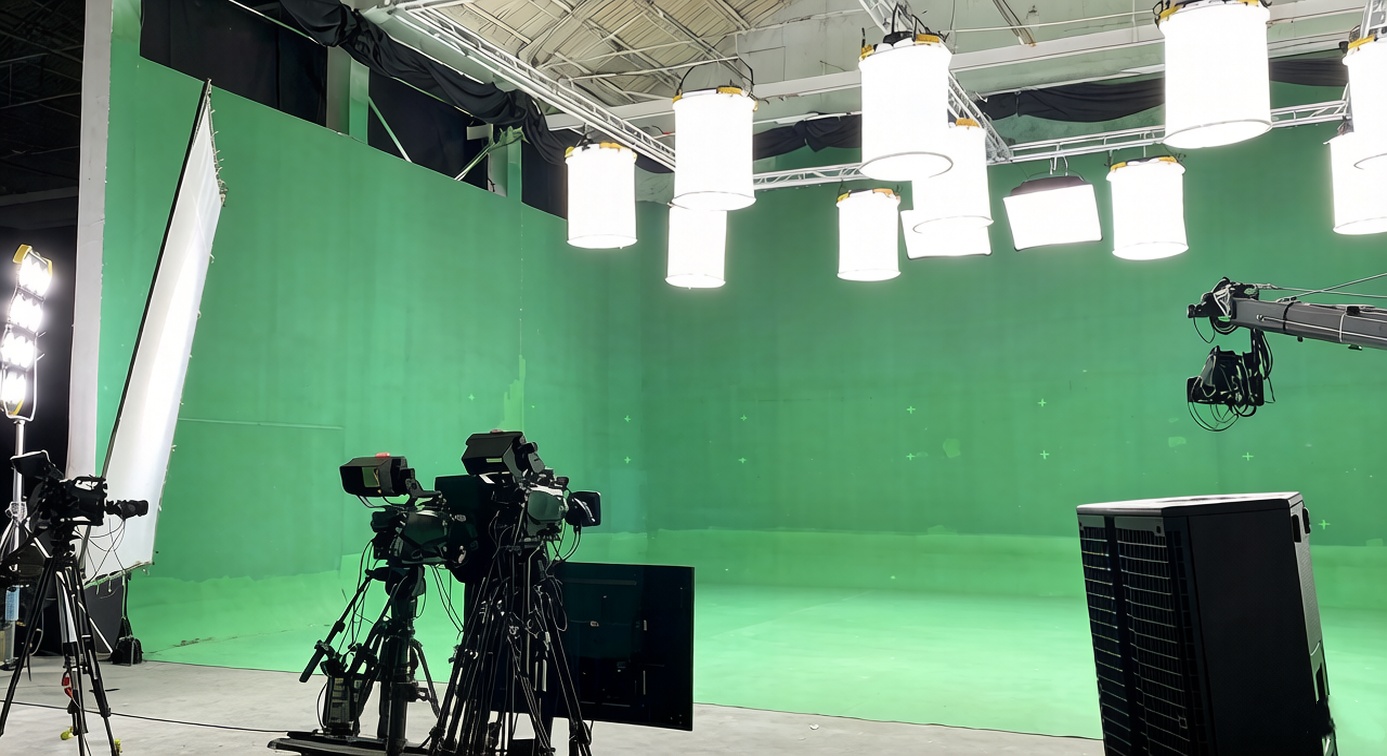

How to work with 3D virtual picture engines
Tech Specs
| Remote Head Model | 180 VR |
| Ball Base Size | 100mm |
| Remote Head Weight | 3.7kg |
| Remote Head Payload | 1.5~20kg |
| Remote Head Height | 190mm |
| Drag Steps | 6 steps (incl. 0) |
| Counterbalance | 4 Steps |
| Tilt Range | -70°~+90° |
| Operating Temperature | -40°~+60° |
| Bubble Level | Night vision |
| Metal Process | CNC |
| Remote Head Sensor Resolution | 520,000 c/r |
| Lens Sensor Resolution | External encoder: 8,192 c/r; Lens motor: 32, 768 c/r |
| Tripod Material | Carbon fiber |
| Tripod Ball Base | 100mm |
| Tripod Payload | 60kg |
| Tripod Weight | 5.35kg |
| Ground / Mid-level Spreader | Ground / Mid-level Spreader |
| Min Height | 560mm |
| Max Height | 1640mm |
| Transport Height | 780mm |
